HDMI extender for extending the transmission distance over Cat. 5e / 6 cable. Set consisting of 1 receiver module and 1 transmitter module, supported maximum distance: 60m,HDMI support, supported maximum video resolution: 1080p, HDCP 1.3 compliant, two 5V power supplies DC / 1A included. Setik HDMI EXT60
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

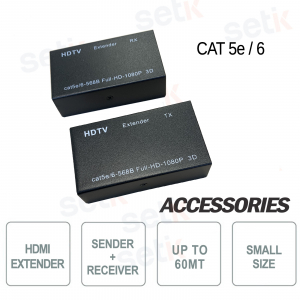

HDMI EXTENDER ON CAT. 5E/6 - UP TO 60 METERS - TRANSMITTER+RECEIVER - SETIK
Product details
- HDMI Extender - Setik
- Consisting of 2 Pieces (Transmitter + Receiver)
- It allows to extend the transmission distance up to 60 meters on CAT cable. 5E/6
- HDMI support
- 3D support
- It supports video resolution up to 1080P
- No loss of quality
- Installation in minutes
- 5V DC power supplies (included)
- Small size
Data sheet
| model | HDMIEXT60 |
| General | |
| Length of CAT-6 / CAT-5E cable between Rx and Tx | up to 60mt |
| HDMI inputs | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| HDMI out | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Max bandwidth | 148.5MHz |
| Maximum baud rate | 1.5Gbps |
| Video signal input | 0.5-1.5Volts pp |
| DDC signal output | 5Volts pp (TTL) |
| Input HDMI cable distance | 10m AWG26 HDMI standard cable |
| HDMI output cable distance | 15m AWG26 HDMI standard cable |
| TX Max working current | 510mA |
| RX Max working current | 100mA |
| Power adapter format |
Inputs: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range |
(-15 to +55°C) |
| Operating Humidity range |
5 to 90%RH (No Condensation) |
| Dimensions (L x W x H) |
81x43x22 (mm) |
| TX Weight |
100g |
| RX Weight |
120g |
