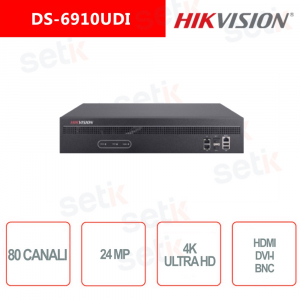

NVR Hikvision 80 Channels 24MP 4K ultra hd Audio Alarm

-58%

NVR Hikvision DS-6910UDI 80 Channels up to 24MP 24 Megapixel 4K ULTRA-HD , H.265 + / H.265 / H.264 / H.264 +, 10x HDMI 4K (adaptable to DVI-I), 5x BNC, 1 two-way audio output, 1 two-way audio input, 8 inputs + 8 alarm output, Dual 10/100/1000 Mbps Ethernet network card, RJ45, optical interface, RS-232, RS-485

Reference: DS-6910UDI

Brand: Hikvision

EAN: 6954273635091

https://www.setik.biz/en/video-accessories/6154-hikvision-ds-6910udi-nvr-hikvision-80-channels-24mp-4k-ultra-hd-audio-alarm.html

€2,829.47

€6,736.84 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-6901UDI | NVR HIKVISION 80 CHANNELS 24MP - H.265 + - AUDIO ALARM

Nvr Hikvision DS-6901UDI? 80 Channels
Resolution: 24MP 4K ULTRA-HD 24Megapixel - 80 channels - 10x HDMI 4K (adaptable to DVI-I), 5x BNC, 1 two-way audio output, 1 two-way audio input, 10x audio outputs, 8 inputs + 8 alarm outputs , 10/100/1000 Mbps Ethernet network card, RJ45, optical interface, RS-232, RS-485

24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160! The new generation of equipment, in fact, allows the support of cameras up to 24MPX on H265 + standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
The new generation of equipment, in fact, allows the support of cameras up to 24MPX on H265 + standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.

80 CHANNELS:

80 Channels up to 24 MEGAPIXELS 4K ULTRA-HD 24 Megapixel
Recording resolution: 24MP / 12MP / 8MP / 5MP / 3MP / 1080p

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.265 + / H.265, H.264 + / H.264, Hik264, MPEG4 and MJPEG.

RJ45 / RS-232 / optical interface:

2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface - 2x optical interface 100 base-FX / 1000 base-X - 1x RS-232 - 1x RS-485

HDMI (up to 4k!) And VGA (full-hd) output:

Present 10 HDMI outputs with resolution up to 4K ULTRA-HD !

Audio and Alarm:

This NVR features 1x two-way audio output , 1x two-way audio input , 10x audio outputs , 8x inputs + 8x alarm output

Data sheet

DS-6910UDI
Video / Audio Input
Input	VGA, DVI-I
Input Resolution	VGA, DVI-I: 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz
Output	HDMI × 10, BNC × 5 (DB15 × 2)
Output resolution	HDMI: 4K: 3840 × 2160 @ 30 Hz (for odd interface only) 1080p: 1920 × 1080 @ 50 / 60Hz 720p: 1280 × 720 @ 50Hz / 60Hz BNC: PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Resolution	Up to 24MP (only for 3 encoder tracks mode)
Decoding Channel	80-ch
Decoding Capability	24MP @ 30fps: 5-ch, 12MP @ 20fps: 10-ch, 8MP @ 30fps: 20-ch, 5MP @ 30fps: 30-ch, 3MP @ 30fps: 50-ch 1080p @ 30fps: 80-ch
Split Screen	1/4/6/8/9/12/16/25/36
Interface
Network Interface	RJ45 interface × 2, 10/100/1000 Mbps adaptive Optic interface × 2, 100 base-FX / 1000 base-X An RJ45 interface and an optic interface form a combo.
Two-Way Audio Out	1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Serial Interface	RS-232 (RJ45) × 1, RS-485 × 1
Two-Way Audio In	1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Audio output	10 (DB15 × 2)
Alarm In	8
Alarm Out	8
Audio compression	G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Encapsulation formats	PS, RTP, TS, ES, HIK
General
Power Supply	100 to 240 VAC
Power Consumption	≤ 108 W
Dimensions (W × D × H)	440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
Working Temperature	-10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity	10% to 90%
Weight	≤ 6.4 kg (14.11 lb)

Further details

Download

Download the English brochure
