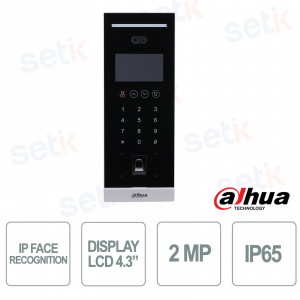

VTO6541H-S2 | IP OUTDOOR STATION WITH SCREEN

The Dahua VTO6541H-S2 video intercom with AI facial recognition provides advanced security for apartments and offices thanks to its 2MP HD camera, ultra-fast 0.2-second identification, and smart features. Ideal for advanced access control with artificial intelligence, it offers an elegant design with IP65 protection and remote management via app .
Main specifications:
- 4.3” LCD screen with 800×480 resolution
- 99.9% accurate facial recognition from 0.3 to 2 meters
- Support up to 40,000 users including faces, badges, fingerprints
- 2MP dual camera with white illuminators for night vision
- Remote door opening via app or internal monitor
- Flush or wall installation, standard PoE power supply
Further details

Technical data sheet
Model | VTO6541H-S2 |
System | |
Main Processor | Embedded Processor |
Operating System | Embedded Linux OS |
Button Type | Touch button |
Interoperability | CGI;ONVIF |
Network Protocol | RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
Basic | |
Screen Type | Non-touchscreen |
Display Screen | 4.3-inch display screen |
Screen Resolution |
800 (H) × 480 (V) |
Room |
1/2.8" 2MP CMOS high-definition, low illumination, dual cameras |
Field of View | H: 95°; V: 50°; D: 110° |
WDR | 120 dB |
Noise Reduction | 3D NR |
Video Compression | H.264; H.265 |
Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
Video Frame Rate | 25 fps |
Video Bit Rate | 1,024 kbps–8,192 kbps |
Light Compensation | Auto white light |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 channel |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction |
Audio Bit Rate | 16 kHz, 16 bit |
Function | |
Communication Mode | Full digital |
Verification Method | Remote;Face Recognition;Card;Password |
Auto Snapshot | Yes |
Information Release | Receive and view text information released by the management center. |
Leave Videos | Yes (SD card inserted in VTH is needed) |
Web Configuration | Yes |
Auto Registration | Yes |
RFID | |
Card Type | IC card |
Performance | |
Card Reading Distance | 0 cm–5 cm (IC card) |
Issue Card Locally | Yes |
Face Recognition Height Range | 1.1 m–2.2 m (3.61 ft–7.22 ft) |
Face Recognition Distance | 0.3 m–2.0 m (0.98 ft–6.56 ft) |
Face Recognition Accuracy | 99.9% |
Face Recognition Time | 0.2 seconds |
Casing Material | Aluminum alloy |
Capacity | |
Card Capacity | 20,000 |
Face Image Capacity | 20,000 |
Port | |
RS-485 | 1 |
Wiegand | 1 (they can be set as an input or output port) |
Alarm Input | 2 channels |
Alarm Output | 2 channels |
Power Output | 1 port (12 V, 500 mA) |
Exit Button | 1 channel |
Door Status Detection | 1 channel |
Lock Control | 1 channel, open by default |
Network Port | 1 × 10Mbps/100Mbps Ethernet port |
Alarm | |
Tamper Alarm | Yes |
General | |
Unlock Password Mode | User, public and hard passwords |
Appearance Color | Silver |
Power Supply | 12 VDC, 2 A; PoE Standard |
Power Adapter | Optional |
Installation | Flush Mount; Wall Mount |
Certifications | THERE IS |
Accessory | Power supply (optional); Flush mount box (optional) |
Product Dimensions | 389 mm × 145 mm × 43 mm (15.31" × 5.71" × 1.69") |
Protection | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | 0%–90% (RH), non-condensing |
Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
Power Consumption | ≤5W (standby), ≤18W (working) |
Gross Weight | 1.50 kg (3.31 lb) |
