Dahua VTO4202F-MDB4 4-Button IP65 IK07 Outdoor Intercom Module with Compact Design

Dahua VTO4202F-MDB4 4-Button IP65 IK07 Outdoor Intercom Module with Compact Design

-57% New

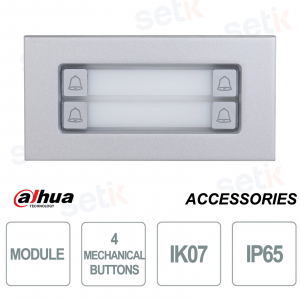

VTO4202F-MDB4 - The button panel module, ideal for modular intercom systems, is equipped with 4 mechanical buttons, a weather-resistant aluminum alloy structure, IP65 and IK07 protection rating for flush-mounted or surface installations, perfect for outdoor environments from -30°C to +60°C; guarantees low power ≤0.6W, compact dimensions 100x50x26 mm and 5VDC power supply with CE EMC and LVD certifications, offering an elegant and robust design for professional video intercom systems. Dahua

Technical Data Sheet

Reference: VTO4202F-MDB4

Brand: Dahua

EAN: 6939554936760

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VTO4202F-MDB4 | MODULE WITH TWO MECHANICAL KEYS

Dahua

The Dahua VTO4202F-MDB4 series offers professional video intercom modules ideal for outdoor use, with a modular design, aluminum alloy structure, and IP65 and IK07 protection ratings. These modules guarantee weather resistance, energy efficiency, and easy flush- or surface-mounted installation, perfect for residential and commercial solutions.

Main specifications:

- Robust aluminum construction

- 5VDC power supply with low power consumption

- IP65 and IK07 protection against water and impacts

- Operation from -30°C to +60°C

- Versatile installation (built-in or surface)

- CE EMC and LVD certifications

Further details

High-quality mechanical buttons:
Equipped with 4 mechanical buttons, it guarantees simple and intuitive use, with immediate response to the touch and long life, ideal for installations with multiple users.
IP65 protection :
It offers high resistance against dust and water thanks to the IP65 certification, ensuring protection from water jets and dust, perfect for outdoor installations without risk of malfunction.
IK07 protection :
The IK07 certified aluminum alloy housing protects the module from impact and vandalism, ensuring robustness and long-term reliability.
CE EMC and LVD certifications:
Compliant with European regulations, the VTO4202F-MDB4 has CE EMC and CE LVD certifications, ensuring electromagnetic compatibility and electrical safety for a product compliant with the highest standards.
VTO4202F-MDB4 dimensions

Technical data sheet

Model VTO4202F-MDB4
System
Button Type Mechanical
Number of Buttons 4
Performance
Casing Material Aluminum alloy
Port
Power Output

5 VDC (provides power for other modules)

General
Appearance Color Silver
Power Supply 5 VDC (provided by other modules)
Certifications CE EMC; CE LVD
Product Dimensions 100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")
Protection IK07; IP65(silicone sealant is needed for installation)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption ≤0.2W (standby), ≤0.6W (working)
Gross Weight 0.24 kg (0.53 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH)
