DS-KV8113-WME1 - is an outdoor IP video intercom station designed for villas and smart homes, ideal for advanced access control and professional security. Equipped with a 2 MP HD camera with True WDR , it offers clear images even in low-light conditions thanks to integrated IR technology. It supports 2.4 GHz Wi-Fi , IEEE802.3af standard PoE power supply and two-way audio communication with echo cancellation and noise reduction for clear and fluid conversations. The device integrates access control functions with a Mifare reader , IP65 and IK08 vandal-proof protection and remote management via Web, ensuring reliability and maximum integration into Hikvision video intercom systems. Hikvision
DISCOVER THE KIT ON SALE LOOK AT THE DS-KIS604-S

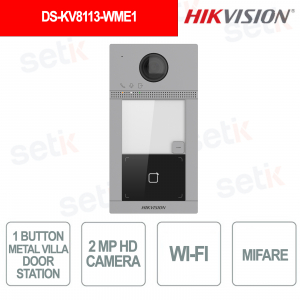

DS-KV8113-WME1 – VIDEO INTERCOM VILLA DOOR STATION

DISCOVER THE KIT ON SALE LOOK AT THE DS-KIS604-S
The Hikvision DS-KV8113-WME1 is an outdoor IP video intercom station designed for villas and smart homes, ideal for access control and advanced security. Equipped with a 2 MP HD camera with True WDR , it guarantees clear images even in low-light conditions thanks to the integrated IR illuminator. It supports 2.4 GHz Wi-Fi , IEEE802.3af PoE power supply and two-way audio with echo cancellation and noise reduction for clear and reliable communications. The device integrates a Mifare reader for access control , IP65 and IK08 vandal-proof protection and remote configuration via the web, ensuring maximum reliability in Hikvision video intercom systems.
Main features:
- 2MP HD camera with True WDR
- IR night vision up to 3 meters
- Built-in 2.4 GHz Wi-Fi
- IEEE802.3af PoE power supply
- Two-way audio with noise reduction
- Access control with Mifare reader
- IP65 and IK08 vandal-proof protection
- Flush and surface mounting support
- 4-channel alarm input
- Remote configuration via Web
Further details
The built-in camera offers high-definition images with True WDR technology, H.264 support, IR night vision and a wide viewing angle of up to 129° horizontal , ensuring clear and detailed monitoring even in low light conditions.
Technical data sheet
| DS-KV8113-WME1 | |
| System parameters | |
| Operation system | Embedded Linux operation system |
| Operation method | Single-button |
| ROM | 32 MB |
| RAM | 256 MB |
| Video parameters | |
| Room | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| BLC | Support |
| DNR | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video compression standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Substream: D1@25fps |
| Resolution | Main stream: 1920 × 1080p, 720p Substream: 704 × 576 |
| Motion detection | Support |
| Anti-flicker frequency | 50 Hz, 60 Hz |
| Simultaneous live view | Up to 3 channels |
| Audio parameters | |
| Audio intercom | Two-way audio communication |
| Audio input | built-in omnidirectional microphone |
| Audio output | built-in loudspeaker |
| Audio compression standard | G.711u、 |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Network parameters | |
| Wired network | 10/100 Mbps Ethernet |
| Network protocol | TCP/IP, RTSP |
| Access control parameters | |
| Reading frequency | 13.56 MHz |
| Card type | Mifare card |
| Relay | 2 |
| Interfaces | |
| RS-485 | 1 |
| Wi-Fi | 2.4G Wi-Fi |
| Debugging port | 1 |
| TF card | 0 |
| Alarm output | 4 |
| Grounding | 1 |
| Physical button | 1 |
| TAMPER switch | 1 |
| General | |
| Protection level | IP65, IK08 |
| Indicator | 3 |
| Power supply method | IEEE802.3at, Standard PoE,12 VDC |
| Power consumption | ≤ 10 W |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Installation | Surface mounting/ Flush mounting |
| Dimensions | 174 mm × 91 mm × 29 mm |
