VIGI NVR1008H TP-Link VIGI NVR IP network 8 channels (1 channel 5MP / 2 channels 2MP / 4 channels 720p), 80Mbps input bandwidth and 60 Mbps output. H265+ compression, maximum resolution 5MP - 2x USB 2.0, two-way audio, 1x HDMI, 1x VGA - supports 1 SATA HDD up to 10TB - Motion detection, abandoned object detection, vehicle and person detection. Dimensions: 246.2 × 148.2 × 45 mm
3 Years Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

VIGI NVR1008H NVR NETWORK TP LINK VIGI 8 CHANNELS HDMI 5MP |

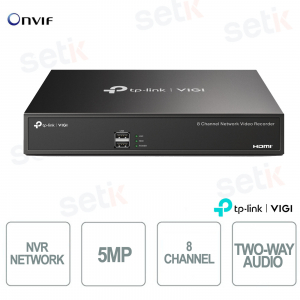

TP-Link VIGI 5MP IP network NVR 8 channels - VIGI NVR1008H
Max Resolution 5MP - 8 Channels (1 Channel 5MP / 2 Channel 2MP / 4 Channel 720p) - H.265+ Compression - Support 1 HDD up to 10TB - 80Mbps in 60Mbps out bandwidth - Two-way audio
2x USB 2.0, 1x HDMI, 1x VGA
Motion Detection - Abandoned Object Detection - Vehicle and Person Detection
Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- 8 Channel HDMI 1 channel 5MP / 2 channels 2MP / 4 channels 720p
- 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
- Maximum resolution 5MP
- Ports: 2x USB 2.0, 1x HDMI, 1x VGA
- Supports 1 HDD up to 10TB
- Smart Detection - Two-way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection
- Remote monitoring
- 3 years warranty
DATA SHEET
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1,4,6,8 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p |
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGII |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90%RH Non-Condensing |
| Weight | 578.5 g |
| Package Contents |
|
| Working Temperature | NVR: -10–55 °C Power adapter: 0–40 °C |
| Working Humidity | 10%~90%RH Non-Condensing |
| Dimensions (L x W x H) | 246.2 × 148.2 × 45 mm |
| External power supply | DC 12V/1.5A |
| Net Weight | 0.58 Kg |
| Gross Weight | 1.07 Kg |
| Power Consumption | 4.25W (without disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI |
![]() |
|
|
Introduction to VIGI NVR The VIGI Network Video Recorder works in synergy with VIGI cameras to help you view, archive and playback video. |
|
|
Safety at any time of the day The network video recorder can store up to 10TB of footage captured by connected cameras, providing quick and secure access to recordings. |
|
|
All angles on one screen The network video recorder supports video playback with image definition up to 5MP up to 8 channels, ideal for capturing details from every angle.
|
|
|
Checking your footage is faster than ever Play feeds from up to 4 cameras simultaneously, increase playback speed to find events faster in video schedules.
|
|
|
Maximum compatibility Create a powerful and barrier-free video surveillance system by easily adding VIGI and other brands of cameras.
|
|
|
Up to 524 days of recordings The network video recorder can store up to 10TB of footage (524 days of video) on SATA hard drive, providing quick and secure access to recordings.
|
|
|
Two-way communication With voice intercom support, you can use two-way audio to communicate with anyone in the monitored area.
|
|
|
More bandwidth for your high definition videos High bandwidth to handle up to 8 HD cameras simultaneously.
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
