VIGI NVR1008H-W TP-Link VIGI 8-channel Wi-Fi IP NVR (supports wireless pairing) 80Mbps input bandwidth and 60Mbps output. H265+ compression, maximum resolution 8MP - 2x USB 2.0, two-way audio, 1x HDMI, 1x VGA, 1x RJ-45 - supports 1 SATA HDD up to 10TB - Motion detection, abandoned object detection, vehicle and person detection, smart frame. Dimensions: 200.3 × 200.3 × 43 mm
3 Years Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

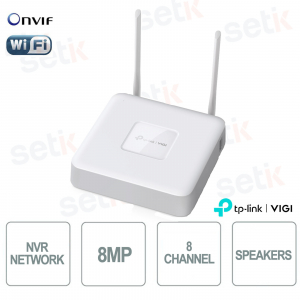

VIGI NVR1108H-W NVR NETWORK TP LINK VIGI 8 CHANNELS HDMI 8MP | WiFi

TP-Link VIGI 8MP IP Wi-Fi network NVR 8 channels - VIGI NVR1108H-W
Max Resolution 8MP - 8 Channels (8 Channels 2MP / 2 Channels 4MP) - H.265+ Compression - Support 1 HDD up to 10TB - 80Mbps in 60Mbps out bandwidth - 1 audio in/out
2x USB 2.0, 1x HDMI, 1x RJ-45
Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- Wi-Fi Protocol
- 8 Channel HDMI 8 Channel 2MP / 2 Channel 4MP
- 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
- Maximum resolution 8MP
- Ports: 2x USB 2.0, 1x HDMI, 1x VGA, 1x RJ-45
- Supports 1 HDD up to 10TB
- Smart Detection - Two-way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
- Remote monitoring
- 3 years warranty
DATA SHEET
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1,4,6,8 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8-Channel |
| Capability | 25fps 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP 30fps 4-ch @ 3MP, 2-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGII |
| WIRELESS | |
| Standards | IEEE 802.11b/g/n |
| WiFi Channels | A: 1-13 US: 1-11 |
| Wireless Name | SSID Configuration Radio |
| Network Switch | Yes |
| Frequency | 2.4GHz |
| Car Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitoring | N/A |
| Radio Bandwidth | Car: Yes 20M: Yes 40M: Yes |
| Wireless Rate | 300Mbps(802.11n), 2×2MIMO |
| Wireless Security | WPA-PSK/WPA2-PSK |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | 1; Real-time Audio Output without Needing Peripherals. |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90%RH Non-Condensing |
| Weight | 578.5 g |
| Package Contents |
|
| Working Temperature | NVR: -10–55 °C Power adapter: 0–40 °C |
| Working Humidity | 10%~90%RH Non-Condensing |
| Dimensions (L x W x H) | Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm) |
| External power supply | DC 12V/2A |
| Net Weight | 0.5 Kg |
| Gross Weight | 1.0 Kg |
| Power Consumption | 5.7W (Without Disk) 16.3W (Without Disk) |
| Antenna | Quantity: 2 Type: 2.4GHz Welded Non-detachable Antenna Gain: 5.3dBi Radio Frequency Transmit Power: 16dBm Length: 198.8 mm for Long Side and 189 mm for Short Side |
| Certifications | BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI |
![]() |
|
|
Easy HDD installation
|
|
|
Automatic initialization for quick setup
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
