AcuSense 4-Channel DVR with Audio, H.265 Pro+, 5MP Support and AI for Intelligent Detection - Hikvision

AcuSense 4-Channel DVR with Audio, H.265 Pro+, 5MP Support and AI for Intelligent Detection - Hikvision

BEST PRICE -35%

iDS-7204HQHI-M1/XT/4A+4/1ALM - 4-channel DVR supports analog HD cameras up to 5MP and integrates AcuSense technology for intelligent detection of people and vehicles, reducing false alarms. Compatible with TVI, AHD, CVI, CVBS and IP, it guarantees maximum installation flexibility. Supports H.265 Pro+ encoding for bandwidth and storage savings, audio over coaxial and up to 6 IP channels. Perfect for professional, smart and AI-ready video surveillance systems.

Technical Data Sheet

Reference: iDS-7204HQHI-M1/XT/4A+4/1ALM

Brand: Hikvision

EAN: 6942160405247

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

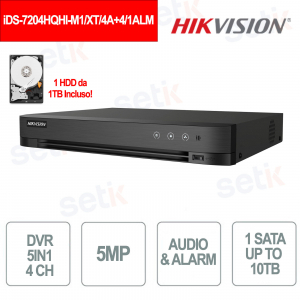

iDS-7204HQHI-M1/XT/4A+4/1ALM – 4-CHANNEL DVR WITH AUDIO SUPPORT 5MP AND AI

Hikvision

iDS-7204HQHI-M1/XT/4A+4/1ALM - DVR is a 4-channel hybrid video recorder, belonging to the AcuSense series, designed for security systems that require reliability, artificial intelligence and high compatibility. It supports analog HDTVI cameras up to 5MP and up to 6 IP channels, allowing flexible integration with existing or mixed systems. Integrated AcuSense technology allows intelligent detection of people and vehicles, improving video surveillance efficiency and drastically reducing false alarms. H.265 Pro+ compression allows you to optimize storage space and bandwidth without compromising video quality. Thanks to coaxial audio, multi-standard compatibility (TVI, AHD, CVI, CVBS and IP) and remote management, this DVR is a perfect solution for smart installations in residential, commercial and corporate environments, also with an AI-ready perspective.


Further details

4 Video Channels + 1 Panoramic View Channel : Support up to 4 analog and 6 IP cameras for complete flexibility.
Resolution up to 5MP on HDTVI : High definition recording for detailed images.
AcuSense Technology (AI Deep Learning) : Intelligent detection with classification of people and vehicles.
 Advanced Anti-False Alarm Filter : Eliminate unnecessary notifications caused by animals, lights or irrelevant motion.
H.265 Pro+ Video Encoding : Greater compression to save disk space and network bandwidth.
Audio over Coax (AoC) : Audio transmission via the same coaxial video cable, simplifying installation.
Compatibility with TVI, AHD, CVI, CVBS and IP : Management of hybrid systems or upgrade of existing systems without replacing cameras.
Simultaneous HDMI and VGA Outputs : Local viewing on multiple screens simultaneously.
Remote control via app (Hik-Connect), browser or iVMS-4200 software : Simple management from PC, smartphone or tablet, even remotely.
Advanced security features : Area masking, password protection, multi-level user management.
24/7 Continuous Operation with SATA HDD Support : Safe and continuous storage up to 10TB.
iDS-7204HQHI-M1-XT-4A+4-1ALM dimensions

Technical data sheet

Model iDS-7204HQHI-M1/XT/4A+4/1ALM
Facial Recognition
Face Picture Comparison Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
Face Picture Library Up to 16 face picture libraries
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 2-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch), Up to 6 MP resolution
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 3K(2880×1620)@25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled:
3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32Kbps to 6Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Network
Remote Connection 32
Total Bandwidth 72 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 1 SATA interface, up to 10 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
General
Power Supply 12VDC, 1.5A
consumption ≤ 18W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16kg (2.6lb)
