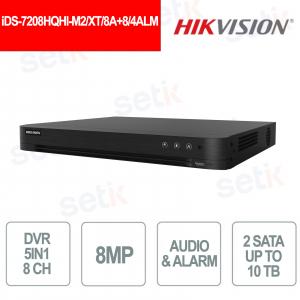

AcuSense 8-Channel DVR with AI, 8MP, H.265 Pro+, Vehicle/Human Detection and Remote Access, Alarm - Hikvision

AcuSense 8-Channel DVR with AI, 8MP, H.265 Pro+, Vehicle/Human Detection and Remote Access, Alarm - Hikvision

BEST PRICE -35% New

iDS-7208HQHI-M2/XT/8A+8/4ALM - AcuSense series DVR offers 8 analog channels and IP support, with resolution up to 8MP. With built-in AI, it accurately detects people and vehicles, improving safety and reducing false alarms. Supports H.265 Pro+ for effective space and bandwidth management. HDMI/VGA outputs, audio on all channels, capacity up to 10TB. Remote access with Hik-Connect, ideal for high-performance professional systems.

Technical Data Sheet



Reference: iDS-7208HQHI-M2/XT/8A+8/4ALM

Brand: Hikvision

EAN: 6942160473628

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

iDS-7208HQHI-M2/XT/8A+8/4ALM – 8 CHANNEL DVR WITH AUDIO SUPPORT 8MP AND AI

Hikvision

iDS-7208HQHI-M2/XT/8A+8/4ALM -  AcuSense Series DVR is an 8-channel BNC hybrid digital recorder expandable with 8 IP channels, designed for professional video surveillance systems with high resolution up to 8MP. Equipped with advanced artificial intelligence, it allows accurate detection of people and vehicles, drastically reducing false alarms. The system supports 5-in-1 video technologies (TVI, AHD, CVI, CVBS, IP) and offers H.265 Pro+ compression for efficient bandwidth and storage management. The intuitive interface, compatibility with Hik-Connect and intelligent analysis functions make this DVR a complete and reliable solution for the security of residential, commercial and industrial environments.


Further details

8 BNC channels + 8 IP channels (up to 16 total video channels)
Resolution supported up to 8MP on IP channels
Compatible with 5 technologies: TVI, AHD, CVI, CVBS analog, IP
 False alarm reduction through deep learning
H.265 Pro+ compression for bandwidth and disk space savings
Simultaneous HDMI (up to 4K) and VGA video output
Audio on all BNC channels with RCA input/output
1 SATA interface for HDD up to 10TB
Intelligent event search based on AI parameters
Motion detection, video masking, signal loss
Simple and multilingual graphical interface
Remote access via Hik-Connect app, web browser and iVMS-4200
Fast backup via USB 2.0 and USB 3.0
Advanced event and notification management
Compact design for desktop or rack mounting
iDS-7208HQHI-M2-XT-8A+8-4ALM dimensions

Technical data sheet

Model iDS-7208HQHI-M2/XT/8A+8/4ALM
Facial Recognition
Face Picture Comparison

Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)

Face Picture Library Up to 16 face picture libraries
Motion Detection 2.0
Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Video and Audio
IP Video Input 4-ch (up to 12-ch), Up to 6 MP resolution
Analog Video Input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 3K(2880×1620)@25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Audio Input 8-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;4-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled:
3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32Kbps to 6Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Network
Total Bandwidth 96Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 64
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 2 SATA interface, up to 10 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out 8/4;N/A (optional to support);4/1
General
Power Supply 12VDC, 2.5A
consumption ≤ 30W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight ≤ 1.78kg (3.9lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
