IPC-HDW1539DA-SW-PV - The Wi-Fi camera with 2.8 mm lens offers 5MP high-definition images with a wide 108° field of view, ideal for covering large areas in homes and small businesses. Thanks to Smart Dual Light technology, it captures color details even at night up to 30 meters, while the integrated AI detects people and vehicles, reducing false alarms. The Wi-Fi 6 connection, combined with Bluetooth pairing and microSD support, ensures quick and reliable installation. Equipped with IP67 , a microphone and speaker for two-way talk and an audible and light alarm, it ensures advanced protection and complete management via the DMSS app. Dahua

Technical data sheet

Reference: IPC-HDW1539DA-SW-PV

Brand: Dahua

EAN: 6939554908699

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW1539DA-SW-PV | 5MP Wi-Fi Camera with 2.8mm Fixed Lens - Network Camera - Dual IR

Dahua

The Dahua IPC-HDW1539DA-SW-PV Wi-Fi camera with 2.8 mm lens guarantees 5MP high-definition footage with a wide 108° field of view, ideal for monitoring homes and small businesses. Thanks to Smart Dual Light technology, it offers color images up to 30 m even at night, while the integrated AI for human and vehicle detection drastically reduces false alarms. Wi-Fi 6 connectivity ensures stability and high performance, supported by Bluetooth pairing and microSD memory up to 256 GB. With IP67 protection, two-way audio and audio-light alarm, the camera offers a complete level of security and advanced management via the DMSS app.

Main specifications:

- 5MP sensor with 2880×1620 resolution

- 2.8 mm optics with FOV: H 108° / V 57° / D 129°

- Smart Dual Light with IR illumination and warm light up to 30 m

- AI detection of people and vehicles

- Wi-Fi 6 connectivity + Bluetooth pairing

- Two-way audio with built-in microphone and speaker

- MicroSD support up to 256 GB

- IP67 resistance for indoor/outdoor installations

Further details

Optics :
The 2.8mm fixed lens offers an extremely wide field of view ( 108° horizontal / 57° vertical / 129° diagonal ), ideal for monitoring large areas with a single camera, ensuring sharp details and optimal coverage for domestic and commercial environments.
Resolution:
Equipped with a 5MP CMOS sensor and a maximum resolution of 2880×1620 , the camera ensures clear images and realistic colors even in low light conditions, thanks to a sensitivity of up to 0.007 lux and IR/warm light illumination of up to 30 m.
Intelligence:
It includes advanced AI algorithms for Human Detection and Vehicle Detection , reducing false alarms and improving monitoring accuracy; Smart Dual Light technology allows you to switch between IR and warm light for color nighttime recordings.
Audio and Video :
It supports H.265/H.264 compression, smooth streaming up to 30 fps , Auto/Color/B/W day/night mode, and integrates microphone and speaker for two-way communication (Two-way Talk) and sound-light alarm for immediate deterrence.
Network :
Equipped with Wi-Fi 802.11b/g/n/ax (Wi-Fi 6) for stable and fast connection, Bluetooth pairing for quick installation, ONVIF compatibility for integration with third-party NVRs and microSD slot up to 256 GB for local storage.

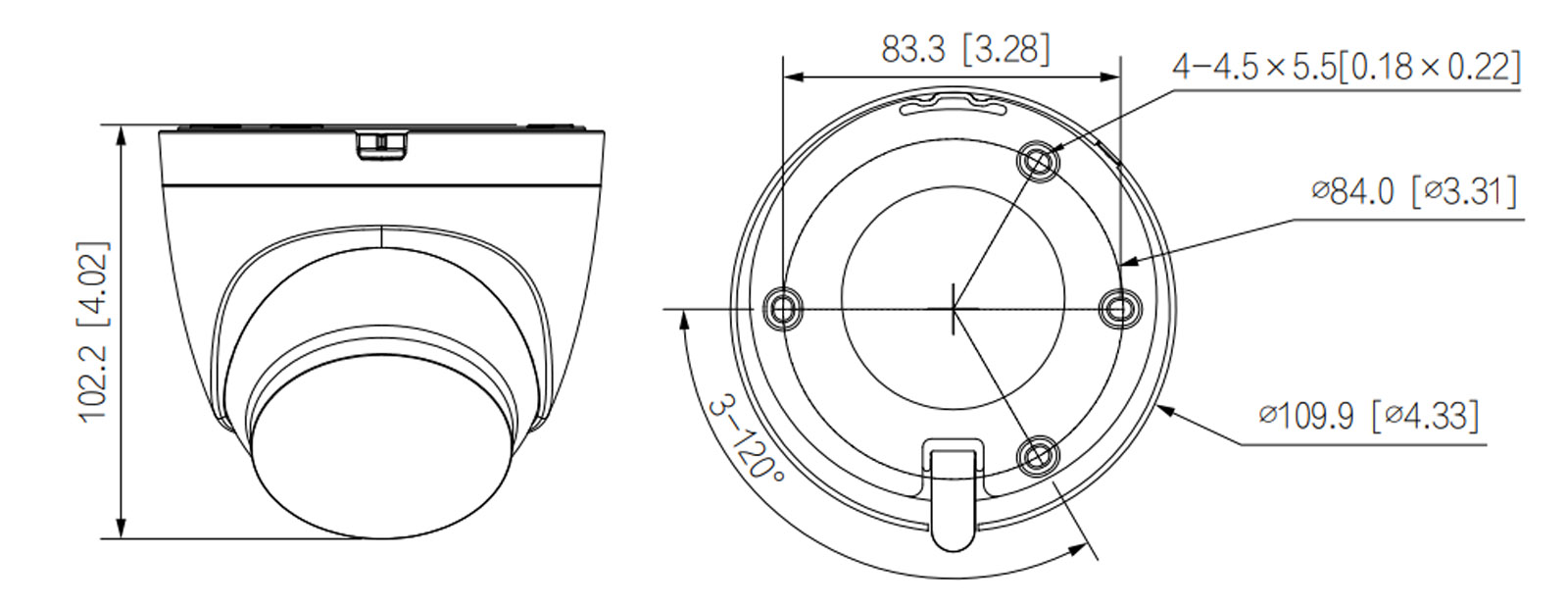

IPC-HDW1539DA-SW-PV dimensions

Technical data sheet

MODEL IPC-HDW1539DA-SW-PV
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2880 (H) × 1620 (V)
Min. Illumination 0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator Number 1 (IR LED); 1 (Warm light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 108°; V: 57°; D: 129°
Intelligence
Human Detection Yes
Vehicle Detection Yes
Audio & Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Video Frame Rate Main stream: 2880 × 1620@(1–25/30 fps)
Sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 32 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
WDR DWDR
Image Rotation 0°/180°
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM
Network
Network RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Wi-Fi Pairing Bluetooth pairing
Storage Micro SD card (Up to 256 GB); FTP
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
General
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply 12 VDC
Power Consumption Basic: 2.1 W (12 VDC);
Max.: 7.1 W (12 VDC) (H.265 + warm light on+ sound and light alarm)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Protection IP67
Camera Button Reset button
Casing Material Metal + plastic
Product Dimensions 102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
Net Weight 0.32 kg (0.71 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
