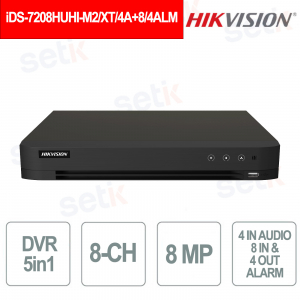

Hikvision AcuSense 4K 8-Channel DVR with 4 Audio Inputs, 8 Alarm Inputs, and 4 Alarm Outputs

Hikvision AcuSense 4K 8-Channel DVR with 4 Audio Inputs, 8 Alarm Inputs, and 4 Alarm Outputs

-35% New

iDS-7208HUHI-M2/XT/4A+8/4ALM - The DVR is an advanced solution for professional video surveillance, equipped with 8 analog channels expandable up to 16 IP with support for up to 8 MP , ensuring high quality and integration flexibility. Thanks to AcuSense technology with deep learning , it offers intelligent functions such as Perimeter Protection on 8 channels and facial recognition on 4 channels , improving event accuracy and reducing false alarms. It supports H.265 Pro+ compression and recording up to 4K , optimizing bandwidth and storage. It integrates 4 audio inputs and advanced management with 8 inputs and 4 alarm outputs , ideal for complex systems. Full connectivity with HDMI 4K, VGA, Gigabit LAN and dual HDD up to 12TB ensures high performance and operational reliability. Hikvision

Technical Data Sheet

Reference: iDS-7208HUHI-M2/XT/4A+8/4ALM

Brand: Hikvision

EAN: 6942160403748

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


iDS-7208HUHI-M2/XT/4A+8/4ALM – 8-CHANNEL ACUSENSE DVR - 5MP RESOLUTION - 4 AUDIO INPUTS - 8 INPUTS & 4 ALARM OUTPUTS

Hikvision

The Hikvision iDS-7208HUHI-M2/XT/4A+8/4ALM DVR represents a professional solution for advanced video surveillance, equipped with 8 analog channels expandable up to 16 IP with support for up to 8 MP , ensuring high video quality and flexibility. It integrates AcuSense technology with deep learning for intelligent functions such as Perimeter Protection up to 8 channels and facial recognition on 4 channels , improving event accuracy and reducing false alarms. It supports H.265 Pro+ compression and recording up to 4K , optimizing bandwidth and storage. The presence of 4 audio inputs and 8 inputs + 4 alarm outputs allows for complete event and security management. Thanks to dual HDDs up to 12TB , complete interfaces and advanced protocols, it guarantees high performance and efficient remote control.

Main features:

- 8 analog channels + up to 16 IP channels

- AcuSense technology with deep learning

- Perimeter Protection up to 8 channels

- Facial recognition up to 4 channels

- Highly efficient H.265 Pro+ compression

- Recording up to 8 MP / 4K

- 4 integrated audio inputs

- 8 alarm inputs + 4 alarm outputs

- Dual HDD with capacity up to 12TB per disk


Further details

Number of Channels:
The DVR supports 8 analog channels expandable up to 16 IP channels , offering a flexible and scalable solution for hybrid video surveillance systems with simultaneous management of multiple high-resolution video streams.
Resolution :
It allows recording up to 8 MP / 4K with advanced encoding, ensuring high image quality and detail even in complex scenarios.
Perimeter Protection :
Deep learning-based technology with up to 8 channels , capable of distinguishing between people and vehicles , improving perimeter security and reducing false alarms.
Facial Detection :
4-channel face detection and capture function, with image search and event management for precise and targeted monitoring.
Facial Recognition :
Advanced facial recognition system with libraries of up to 16 databases , ideal for identification and access control in high-security environments.
Motion Detection 2.0 :
Intelligent technology based on human/vehicle analysis on all channels , capable of filtering irrelevant events and improving the effectiveness of motion detection.
Decoding :
Powerful decoding capability up to 24 channels 1080p@30fps , ensuring smooth display and simultaneous handling of multiple video streams.
Audio :
Equipped with 4 RCA audio inputs (expandable via coaxial up to 8 channels) and two-way audio support, for complete management of audio communications.
Alarm :
It integrates 8 inputs and 4 alarm outputs , allowing advanced event management and integration with external security systems.
Interfaces :
Fully equipped with HDMI 4K, VGA, USB 2.0/3.0, RS-485 and Gigabit LAN , as well as multiple video inputs and audio outputs, for maximum compatibility and integration.
Network :
It supports advanced protocols such as TCP/IP, DHCP, ONVIF, Hik-Connect, HTTPS , with bandwidth up to 256 Mbps and 64 remote connections , ensuring stable remote access and centralized management.

Technical data sheet

iDS-7208HUHI-M2/XT/4A+8/4ALM
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search
4-channel face picture capture
Facial Recognition
Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)
Face Picture Library Up to 16 face picture libraries,;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Video and Audio
IP Video Input 8-ch (up to 16-ch), Up to 8 MP resolution
Analog Video Input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
PoC Camera Input Support Hikvision PoC camera
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 8-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled:
2K/3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
2K/3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Substream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Remote Connection 64
Total Bandwidth 256 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out 8/4
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 2 × USB 3.0
General
Power Supply 48 VDC, 2.5 A
Consumption ≤ 20 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight ≤ 1.78 kg (3.9 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
