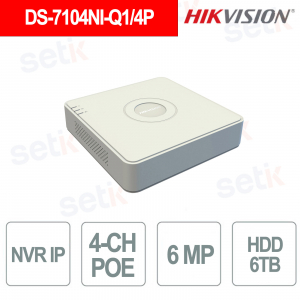

DS-7104NI-Q1/4P NVR 4 Channels PoE IP up to 6MP H.265+ HDD 6TB Hik-Connect - Hikvision

DS-7104NI-Q1/4P NVR 4 Channels PoE IP up to 6MP H.265+ HDD 6TB Hik-Connect - Hikvision

 
BEST PRICE -35%

DS-7104NI-Q1/4P - The NVR is a 4-channel IP network video recorder with 4 built-in PoE ports , ideal for compact video surveillance systems with cameras up to 6 MP . It supports H.265+/H.265/H.264+/H.264 compression, input bandwidth up to 40 Mbps and output up to 60 Mbps , with playback of up to 4 channels 1080p . It integrates 1 SATA interface for HDD up to 6 TB , simultaneous HDMI and VGA outputs and PoE power supply compliant with IEEE 802.3af/at standards up to 36 W. Smart functions include line crossing detection, intrusion detection, Smart Search and Smart Playback , while remote management is simplified via Hik-Connect . Hikvision


USE CODE SIGCH886 FOR FREE SHIPPING!


Technical Data Sheet

Reference: DS-7104NI-Q1/4P

Brand: Hikvision

EAN: 6942160416977

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-7104NI-Q1/4P – 4-CHANNEL IP POE NVR - 6MP RESOLUTION

Hikvision

USE CODE SIGCH886 FOR FREE SHIPPING!


The Hikvision DS-7104NI-Q1/4P NVR is a 4-channel IP network video recorder with 4 built-in PoE ports , designed for video surveillance systems up to 6 MP . It supports H.265+/H.265/H.264+/H.264 compression, bandwidth up to 40 Mbps input and 60 Mbps output and playback of up to 4 channels 1080p . It integrates 1 SATA for HDD up to 6 TB , simultaneous HDMI and VGA outputs and PoE IEEE 802.3af/at up to 36 W. Smart functions include line crossing detection, intrusion detection, Smart Search and Smart Playback , with remote management via Hik-Connect .

Main features:

  • Channels: 4 IPs
  • PoE: 4 ports, 36W
  • Resolution: up to 6 MP
  • Bandwidth: 40/60 Mbps
  • Compression: H.265+
  • Storage: 1 SATA, up to 6 TB
  • Video: HDMI + VGA
  • Smart: line, intrusion, Smart Search

Further details

✅ Number of Channels:
The
Hikvision DS-7104NI-Q1/4P NVR supports up to 4 IP video channels , allowing you to connect and manage 4 network cameras simultaneously in a single video surveillance system.
✅ Resolution :
It
supports IP cameras with resolution up to 6MP and offers decoding capability of up to 1 channel 6MP at 30fps, 2 channels 4MP at 30fps or 4 channels 1080p at 30fps , ensuring detailed images and smooth playback.
✅ PoE:
It integrates 4 RJ-45 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, with a total power of up to 36 W , allowing you to transmit data and power to IP cameras via a single network cable.
✅ Band :
It has an input bandwidth of up to 40 Mbps and an output bandwidth of up to 60 Mbps , offering efficient management of video streams from IP cameras and network connections.
✅ Storage :
It integrates 1 SATA interface for installing a HDD up to 6 TB and supports H.265+ compression , which allows you to reduce the required storage space by up to 75% , optimizing recording retention.
✅ Smart Functions :
It supports line crossing detection and intrusion detection , as well as Smart Search and Smart Playback functions , designed to locate events in selected areas more quickly and make recording review more efficient.

Technical data sheet

DS-7104NI-Q1/4P
Video and Audio
IP Video Input 4-channel Up to 6 MP resolution
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Decoding
Decoding Format H.265+/H.265/ H.264+/H.264
Recording Resolution 6MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 4-ch
Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type Video, Video & Audio
Network
Remote Connection 16
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
Interface 4, RJ-45 10/100Mbps self-adaptive Ethernet interface
Power ≤ 36 W
Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 6 TB capacity for each disk
Alarm In/Out N/A
USB Interface Rear panel: 2 × USB 3.0
General
Power Supply 48 VDC, 1 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
Weight ≤ 1 kg (2.2 lb)
Certification
THERE IS EN50130-4, EN 61000-3-2,EN 61000-3-3
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
