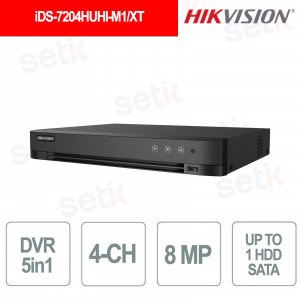

iDS-7204HUHI-M1/XT DVR AcuSense 4 Channels 8MP AI Deep Learning H.265 Pro+ - Hikvision

iDS-7204HUHI-M1/XT DVR AcuSense 4 Channels 8MP AI Deep Learning H.265 Pro+ - Hikvision

 
-35%

iDS-7204HUHI-M1/XT - is a professional 4-channel AcuSense DVR with Deep Learning technology, designed to distinguish people and vehicles and optimize perimeter protection. It supports 4 analog inputs and up to 8 8 MP IP cameras , with HDTVI/AHD/CVI/CVBS/IP compatibility and recording up to 8 MP . It integrates AcuSearch , facial recognition, HDTVI two-way audio and H.265 Pro+ compression, reducing storage space and bandwidth. It also features HDMI output up to 2K , 4-channel synchronized playback and support for 1 SATA HDD . Hikvision

Technical data sheet not available

Reference: iDS-7204HUHI-M1/XT

Brand: Hikvision

EAN: 6942160403717

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

iDS-7204HUHI-M1/XT – 4-CHANNEL ACUSENSE DVR - 8MP RESOLUTION

Hikvision

The Hikvision iDS-7204HUHI-M1/XT is a 4-channel AcuSense DVR with Deep Learning algorithms, designed for intelligent video surveillance with person/vehicle classification and perimeter protection of up to 4 channels. It supports 5 video technologies HDTVI/AHD/CVI/CVBS/IP , IP cameras up to 8 MP and up to 8 IP inputs. It integrates facial recognition up to 2 channels , AcuSearch , Motion Detection 2.0 and two-way HDTVI audio. H.265 Pro+ compression optimizes bandwidth and storage space, while the SATA interface supports 1 HDD up to 10 TB .

Main features:

  • Channels: 4 analog / up to 8 IP
  • IP Resolution: Up to 8 MP
  • AI: AcuSense Deep Learning
  • Analysis: Person / Vehicle
  • Smart: AcuSearch + Motion Detection 2.0
  • Faces: Recognition up to 2 channels
  • Compression: H.265 Pro+
  • Storage: 1 SATA, up to 10 TB

Further details

✅ Number of Channels:
 The Hikvision iDS-7204HUHI-M1/XT features 4 BNC analog video inputs and supports 4-channel IP cameras, expandable up to 8 , with IP resolution up to 8 MP , offering flexibility for hybrid video surveillance systems.
✅ Resolution :
 It supports HDTVI signals up to 8MP (3840 × 2160) and encoding capabilities up to 8MP @ 8 fps on channel 1 , as well as 3K/5MP @ 12 fps , suiting installations requiring high-definition images.
✅ Perimeter Protection :
Hikvision AcuSense technology uses Deep Learning to distinguish people and vehicles from other moving objects; the DVR also features Motion Detection 2.0 , with intelligent target classification for more effective alarm management.
✅ Video and Audio :
It offers 4 analog video inputs , HDMI output up to 2K , VGA output, CVBS output and synchronized playback up to 4 channels ; it also integrates 1 RCA audio input and 1 RCA audio output and supports HDTVI Two-Way Audio technology for two-way audio communication.
✅ AcuSense Technology :
 Hikvision AcuSense technology uses Deep Learning to distinguish people and vehicles from other moving objects; the DVR also features Motion Detection 2.0 , with intelligent target classification for more effective alarm management.
✅ Network :
 It supports up to 8 x 8MP IP cameras and provides Hik-Connect and DDNS for easy management and system access over the network; it is also compatible with major Wi-Fi dongles available on the market.
✅ Interfaces :
The DVR integrates BNC connections for the 4 analog inputs, HDMI, VGA, CVBS, RCA audio and SATA interface for 1 HDD up to 10 TB , offering the main connections needed for video, audio, viewing and storage of the video surveillance system.
✅ 5in1 Technology :
 Thanks to the adaptive 5-signal input, the DVR is compatible with HDTVI, AHD, HDCVI, CVBS and IP technologies, allowing you to integrate analog HD, traditional and network cameras within the same system.

Technical data sheet

iDS-7204HUHI-M1/XT
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Facial Detection and Capture Face picture detection, face picture search
2-ch face picture comparison alarm (HD analog camera)
Video and Audio
IP Video Input 4-ch (up to 8-ch), Up to 8 MP resolution
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 32
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16 kg (2.6 lb)
