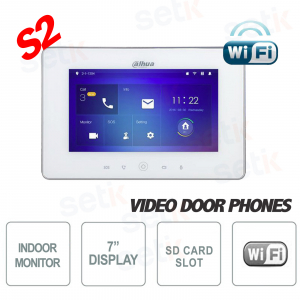

WIRELESS INTERNAL STATION WITH 7" TOUCH DISPLAY - MICROSD SLOT AND SNAPSHOT - S2 VERSION - DAHUA

 DESCRIPTION:
 The VTH5221D-W-S2 VERSION S2 station from Dahua is one of the best wireless indoor stations on the market.
 Equipped with 7" 1024x600 Capacitive Touch Screen LCD Display, 6 Alarm Inputs and SD Card Slot.
In call or surveillance mode it is able to take screenshots.
Quality product. PoE protocol . Dahua Security brand. White color.

Product Details:

- Indoor station - Dahua
- S2 Version
- Wireless WiFi connection IEEE802.11b/g/n
- Intercom with other compatible internal stations
- 7" TFT capacitive touch screen display, 1024x600
- H.264 Video Compression
- Alarm integration
- IP Camera Support
- Address book functions
- Call recording and history
- Pop up on alarm
- 6 Inputs + 1 Alarm Output
- 1 RS485
- 1x 10M/100Mbps self-adaptive LAN port
- During call or video surveillance mode the station is able to take screenshots
- SD Card Slot (Max 32GB)
- Mounting to apply on wall
- Power supply DC 12V
- PoE Protocol
- Max consumption ≤7W
- Service temperature ﹣10°C~+55°C
- Dimensions: 215.0mm×140.0mm×21.0mm
- Quality product.
- Color White
- 24 month warranty
Technical data sheet
| Model | VTH5221D-W-S2 | |
| System | Main Processor | Embedded Microprocessor |
| Operation System | Embedded LINUX OS | |
| Video | compression | H.264 |
| Audio | Audio Compression | G.711 |
| Audio Input | All-direction microphone | |
| Audio Output | Built-in loudspeaker | |
| Bidirectional Talk | Support Dual-way Bidirectional talk | |
| Display | LCD Screen | 7“ 1024x600, Capacitive |
| Operating modes | input | Touch buttons |
| Interface | Alarm In | 6 |
| Alarm Out | 1 | |
| RS485 | 1 | |
| Network | WiFi | IEEE802.11b/g/n |
| Ethernet | 10M/100Mbps Self-adaptive | |
| Network Protocol | TCP/IP | |
| General | Memory Slot | Micro SD, Max 32GB |
| Installation | Surface | |
| Power | DC 12V, PoE ( 802.3af) | |
| Power Consumption | Standby ≤1W, Working ≤7W | |
| Working Temperature | ﹣10°C~+55°C | |
| Relative Humidity | 10%~90%RH | |
| Dimensions | 215.0mm×140.0mm×21.0mm | |
| Weight | 0.8Kg | |
Further details

|  | 7" LCD display 1024x600 resolution capacitive touch screen
 |
|  | Intercom Station. This means it can communicate freely with other internal monitors. |
|  | Button to answer the call. During a call, press to hang up |
|  | 1x SD Card Slot (Max 32GB) |
|  | In surveillance or call mode, you can take screenshots (MicroSD required) |
|  | Address Book Function |
|  | Call recording and history |
|  | In case of a call, the video intercom sends a notification to the internal monitor or to a mobile/voip phone thanks to Dahua's DMSS application.
 |
|  | LIVE connection with Dahua IP cameras |
|  | 6 Alarm Inputs + 1 Alarm Output |
|  | Multi-directional microphone and built-in speakers |
|  | Present 1x RS485 |
|  | Connection via self-adaptive RJ-45 Ethernet LAN port (10M/100Mbps) |
|
 | Power supply DC 12V, PoE(802.3af) |
|  | This product is covered by a 24 month warranty. |
