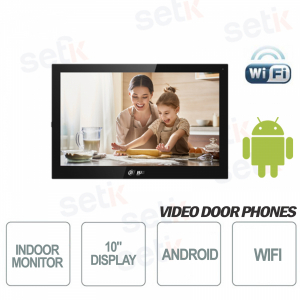

Dahua VTH5341G-W 10" Android Wi-Fi IP Video Intercom with Elevator Control and Two-Way Audio

Dahua VTH5341G-W 10" Android Wi-Fi IP Video Intercom with Elevator Control and Two-Way Audio

BEST PRICE -57%

VTH5341G-W - internal video intercom on Android 8.1 system offers a smart experience thanks to the 10-inch capacitive touch display with 1024x600 resolution, Wi-Fi and Ethernet connection, digital intercom and elevator control management, microSD support up to 256GB, two-way audio with echo suppression and wall installation, ideal for residential and condominium home automation solutions. Black color. Dahua

Technical Data Sheet

Reference: VTH5341G-W

Brand: Dahua

EAN: 6939554982415

Disponibilità: 12

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VTH5341G-W | WIRELESS ANDROID INTERNAL STATION WITH 10" TOUCH DISPLAY - MICROSD SLOT AND SNAPSHOT - BLACK


Dahua

Discover the Dahua VTH5341G-W indoor video intercom monitor, ideal for smart home solutions and condominium systems. Thanks to the Android 8.1 system, it offers an intuitive interface with a 10-inch touchscreen, Ethernet and Wi-Fi connectivity, elevator management, and two-way audio for clear and secure communications. Color: Black

Main specifications:

- 10'' color touch screen, 1024×600 resolution

- Android 8.1 system with modern interface

- Wi-Fi and Ethernet connection with IPv4, SIP, RTSP protocols

- Two-way audio with omnidirectional microphone and speakerphone

- MicroSD support up to 256GB and integrated alarm management

- Elevator control and video/text message function

Further details

10'' High Resolution Capacitive TFT Display:
The heart of the device is the large 10-inch touchscreen with TFT LCD technology and a crisp 1024x600 pixel resolution. Thanks to the capacitive panel, it ensures a smooth touch response and quick and easy interaction with all the video intercom features.
Android 8.1 System with Intuitive Interface :
The monitor integrates the Android 8.1 operating system, making the interface more modern, faster, and more intuitive. This allows for optimal management of video calls, alerts, and notifications, with the ability to view text or video messages left by visitors, as well as remote management of functions such as elevator control.
Highly Secure Ethernet and Wi-Fi Connection :
For maximum flexibility, the device supports both 10/100M wired Ethernet and Wi-Fi wireless connections compatible with IEEE802.11b/g/n 2.4 GHz standards. Connection security is guaranteed by advanced protocols such as WPA, WPA2, WPA-PSK and 64/128-bit WEP encryption, ensuring always protected and reliable communications.

Technical data sheet

VTH5341G-W
System
Main Processor Embedded Processor
Operating System Android 8.1
Internet Protocol IPv4, TCP, SIP, UDP, RTSP
Basic
Screen Type Capacitive Screen
Display 10 inch TFT LCD
Resolution 1024(H)×600(V)
Video Encoding H.264
Audio Encoding PCM
Audio Input 1 omnidirectional microphone
Audio Output Built-in 1.5W speaker
Audio Mode Two-way voice call
Audio Enhancement Echo suppression/DNR
Audio Bit Rate 16KHz, 16Bit
Function
Information Release Text announcements released by the management center can be viewed
Communication Mode Full digital
Elevator Control You can control the elevator through the indoor monitor
Leave Videos or Text Messages Yes (SD card is needed)
DND Mode Do not disturb period can be set.
Extension Number Villa: 4
Apartment: 9
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4GHz
Wireless Security-Encryption 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage Micro SD storage, the maximum space is 256GB
Port
RS485 1
Alarm Input 8
Alarm Output 1
Power Output 1 12V/100mA
Door bell Yes (Use alarm input port)
Network 1 10M/100M Ethernet
Alarm
SOS Yes
Performance
Housing Material PC+ABS
Regular
Color Black
Power Supply Mode 12V DC 1A, PoE standard
Installation Method Surface mount
Certification CE, FCC
Accessory Surface mount bracket,
alarm ribbon cable, RS-485 cable,
and power-supply pins are provided
Product Dimensions 260 mm×170 mm×15 mm
Working Temperature -10°C to +55°C (+14°F to +131°F)
Working Humidity 10%RH–95%RH (Non-condensing)
Working Altitude Less than 3,000 meters (9842.52 ft)
Power Consumption ≤1.5W (standby), ≤7W (working)
Net Weight 770g (1.70lb)
Gross Weight 1.1kg (2.43lb)
