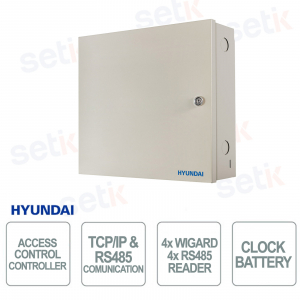

HYU-727 – 2-Door TCP/IP and RS485 Access Control Controller

HYU-727 – 2-Door TCP/IP and RS485 Access Control Controller

New

The HYU-727 is an advanced two-door access control controller capable of managing up to 100,000 cards and 300,000 events (expandable), ensuring maximum security and flexibility. It supports TCP/IP and RS485 communications, with Wiegand 26/34 interfaces and advanced features such as anti-passback, multi-card, super card, and super password. It features inputs for door sensors, exit buttons, alarms, and tamper protection, as well as outputs for lock and alarm relays. With advanced event protection, NTP time synchronization, online updates, and remote control, it is ideal for professional installations in corporate or high-security settings. Hyundai

Technical Data Sheet

Reference: HYU-727

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-727 | ACCESS CONTROLLER

Dahua

The HYU-727 is a professional two-door access control controller designed to manage up to 100,000 cards and 300,000 events (expandable) with maximum security and reliability. It supports TCP/IP and RS485 communications, integrates advanced features such as anti-passback, multi-card, super card, and remote control, and is ideal for installations in corporate and high-security environments.

Main specifications:

- Capacity: up to 100,000 cards and 300,000 events

- Supports TCP/IP, RS485 and Wiegand 26/34

- Anti-passback and multi-port functions

- Inputs for sensors, exit buttons and alarms

- Anti-tamper and NTP time synchronization

- Remote control and online update

Further details

Uplink communication:
It supports TCP/IP and RS485, ensuring fast and secure connections. The self-adaptive network interface optimizes performance in different installation contexts.
Readers :
Compatible with 4 Wiegand readers and 4 RS485 readers, allowing the management of multiple access points and greater configuration flexibility.
Entrances:
Includes 2 door sensor inputs, 2 exit buttons (REX), 4 alarm inputs and 1 tamper input, for complete, real-time monitoring.
Exits:
Equipped with 2 lock relays and 4 alarm relays, it allows direct control of the entrances and rapid management of emergency situations.

Technical data sheet

HYU-727
Specifications
High-speed 32-bit processor
16 MB of RAM
Capacity: 100,000 valid cards (expandable to 200,000)
Events: 300,000 access control records (expandable to 600,000)
Load communication interface: TCP/IP, RS485
Downlink communication interface: RS485, Wiegand 26/34
Readers: 4 Wiegand interface readers, 4 RS485 interface readers
Input interface: 2 door sensors, 2 exit buttons (REX), 4 alarm inputs, 1 input
tamper-proof
Built-in watch battery
Communication interface: RS485
LED indicator: power status, communication status and abnormal status
Power: 12V DC, 1A
Power dissipation (with load): ≤100W
Consumption: ≤4 W (no load)
Operating temperature -20°C ~ +65°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 370 x 345 x 90 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
