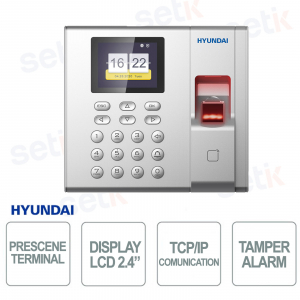

HYU-729 | INDEPENDENT ACCESS CONTROL AND ATTENDANCE TERMINAL WITH BIOMETRIC FINGERPRINT READING

Dahua

The HYU-729 is a standalone access control and time and attendance terminal with biometric fingerprint and EM card reader, ideal for indoor environments requiring accuracy and speed. It supports up to 1,000 users, 1,000 cards, 1,000 fingerprints, 100,000 events, and 50,000 attendance records, integrating advanced features such as remote configuration, automatic reporting, and shift management. Equipped with a 2.4" LCD display, TCP/IP communication, and tamper alarm, it ensures security and ease of use in corporate and professional settings .

Main specifications:

- Capacity: up to 1,000 users, cards and fingerprints

- Event memory: up to 100,000 logs and 50,000 presences

- TCP/IP communication and USB 2.0 port

- Fingerprint recognition in less than 1 second

- Shift, holiday and automatic reporting management

- Tamper alarm and multilingual support

Further details

Linux Operating System:
It offers high stability, security and compatibility, ensuring reliable performance and optimal management of access and presence data.
LCD Screen :
2.4” display showing date, time and authentication results, making it easy for the user to instantly verify operations.
Communication interface:
It supports TCP/IP connection (10/100 Mbps) for fast and secure information transmission, with the possibility of remote management and network integration.
Card reader:
Built-in and compatible with EM cards, with a reading range of up to 3.5cm, ensures fast and reliable identification for secure access.

Technical data sheet

HYU-729
Specifications
Linux operating system
2.4" LCD screen
Capacity up to 1,000 cards/users
Events: Up to 100,000 events
Record attendance: up to 50,000 records
Capacity up to 1,000 tracks
Fingerprint recognition time: <1 second="" 1:n="" td="">
FAR (False Acceptance Rate): ≤0.001%
FRR (False Rejection Rate): ≤0.1%
Fingerprint Recognizer: Optical Module
The built-in card reader supports EM cards
Non-backlit physical button keyboard
Communication interface: TCP/IP (10/100 Mbps)
Input interface: 1 door sensor, 1 exit button (REX)
Output interface: 1 lock relay, 1 doorbell relay
USB 2.0 port
1 buzzer and 1 speaker
Power: 12V DC / 1A
Operating temperature -10°C ~ +55°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 155 (W) x 140 (H) x 30 mm
