HYU-730 – Access Control and Attendance Terminal with Fingerprint and MIFARE

HYU-730 – Access Control and Attendance Terminal with Fingerprint and MIFARE

New

The HYU-730 is a standalone access control and time and attendance terminal with biometric fingerprint scanning and a MIFARE card reader, ideal for internal corporate applications. It supports up to 1,000 users, 1,000 cards, 1,000 fingerprints, 100,000 events, and 50,000 attendance records, with rapid recognition in less than 1 second. Equipped with a Linux operating system, a 2.4" LCD display, and TCP/IP communication, it allows for local or remote configurations, shift and holiday management, and automatic reporting. It features inputs for a door sensor and REX button, outputs for a door lock and doorbell relay, a USB port for data export, and a tamper alarm for complete security. Hyundai

Technical Data Sheet

Reference: HYU-730

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

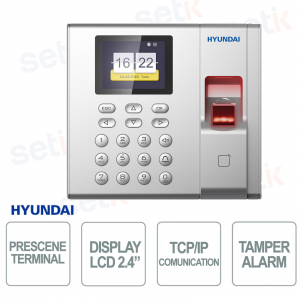

HYU-730 | STAND-ALONE ACCESS CONTROL AND ATTENDANCE TERMINAL WITH BIOMETRIC FINGERPRINT READING

Dahua

The HYU-730 is a standalone access control and time and attendance terminal with biometric fingerprint scanning and a MIFARE card reader, designed for security, accuracy, and ease of use indoors. It supports up to 1,000 users, 1,000 cards, 1,000 fingerprints, 100,000 events, and 50,000 attendance records, with fast recognition in under 1 second and both local and remote management.

Main specifications:

- Linux operating system with high stability and security

- 2.4” LCD display to view date, time and authentications

- MIFARE reader with reading range up to 5 cm

- TCP/IP communication and USB 2.0 port

- Shift management, holidays and automatic reports

- Tamper alarm and multilingual support

Further details

Linux Operating System:
It ensures stability, security and efficient data management, making the device reliable even in complex business environments.
LCD Screen :
2.4” display showing date, time and authentication results, improving the user experience and facilitating immediate verification of operations.
Communication interface:
Supports TCP/IP (10/100 Mbps) connection for fast and secure data transmission, with local or remote management options for maximum flexibility.
Card reader:
Compatible with MIFARE cards, it offers a reading range of up to 5cm, ensuring fast and reliable recognition for access control.

Technical data sheet

HYU-730
Specifications
Linux operating system
2.4" LCD screen
Capacity up to 1,000 cards/users
Events: Up to 100,000 events
Record attendance: up to 50,000 records
Capacity up to 1,000 tracks
Fingerprint recognition time: <1 second="" 1:n="" td="">
FAR (False Acceptance Rate): ≤0.001%
FRR (False Rejection Rate): ≤0.1%
Fingerprint Recognizer: Optical Module
The built-in card reader supports MIFARE cards
Card reading range: 0~5cm
Non-backlit physical button keyboard
Communication interface: TCP/IP (10/100 Mbps)
Input interface: 1 door sensor, 1 exit button (REX)
Output interface: 1 lock relay, 1 doorbell relay
USB 2.0 port
1 buzzer and 1 speaker
Power: 12V DC / 1A
Operating temperature -10°C ~ +55°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 155 (W) x 140 (H) x 30 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
