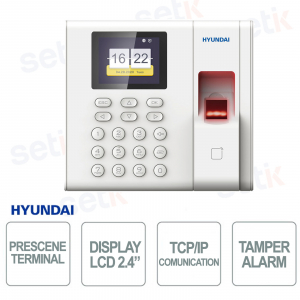

HYU-731 | STAND-ALONE ACCESS CONTROL AND ATTENDANCE TERMINAL WITH BIOMETRIC FINGERPRINT READING AND EM CARD READER

The HYU-731 is a standalone time and attendance terminal with biometric fingerprint technology and an EM card reader, ideal for indoor corporate environments that require precision and security. It supports up to 1,000 users, 1,000 fingerprints, and 1,000 cards, with a capacity of 100,000 events and 50,000 attendance records, ensuring rapid recognition in less than 1 second and local or remote management.
Main specifications:
- Linux operating system with high stability and security
- 2.4” LCD display to view date, time and authentications
- MIFARE reader with reading range up to 3.5 cm
- TCP/IP communication and USB 2.0 port
- Shift, holiday and automatic reporting management
- Tamper alarm and multilingual support
Further details
Technical data sheet
HYU-731 |
Specifications |
Linux operating system |
2.4" LCD screen |
Capacity up to 1,000 cards/users |
Events: Up to 100,000 events |
Record attendance: up to 50,000 records |
Capacity up to 1,000 tracks |
Fingerprint recognition time: <1 second="" 1:n="" td=""> |
FAR (False Acceptance Rate): ≤0.001% |
FRR (False Rejection Rate): ≤0.1% |
Fingerprint Recognizer: Optical Module |
The built-in card reader supports MIFARE cards |
Card reading range: 0~3.5cm |
Non-backlit physical button keyboard |
Communication interface: TCP/IP (10/100 Mbps) |
Input interface: 1 door sensor, 1 exit button (REX) |
Output interface: 1 lock relay, 1 doorbell relay |
USB 2.0 port |
1 buzzer and 1 speaker |
Power: 5V DC / 1A |
Operating temperature -10°C ~ +55°C |
Operating humidity: 10% ~ 90%, non-condensing |
Dimensions: 155 (W) x 140 (H) x 30 mm |
