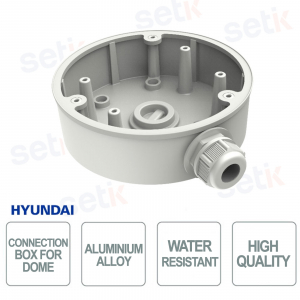

HYU-1005 Junction Box for Dome Cameras | Rugged and Waterproof

HYU-1005 Junction Box for Dome Cameras | Rugged and Waterproof

New

The HYU-1005 is a junction box designed for dome camera installations and offers maximum robustness thanks to its spray-coated aluminum alloy construction. Equipped with side and bottom ports, an interchangeable cover, and a gland nut, it ensures waterproof protection and mounting versatility. It supports a load of up to 4.5 kg and must be installed on stable, flat surfaces. With a compact design (Ø137 x 42 mm) and neutral white color, it integrates seamlessly into any professional environment. Hyundai

Technical Data Sheet

Reference: HYU-1005

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-1005 | JUNCTION BOX FOR DOME


Dahua

The HYU-1005 junction box is designed to ensure safe and durable installation of dome cameras, both indoors and outdoors. Its spray-coated aluminum alloy construction provides superior weather and corrosion protection. With side and bottom entries and interchangeable components, it offers maximum mounting flexibility and excellent waterproofing .

Main specifications:

- Material: Aluminum alloy with spray finish

- Waterproof and weatherproof

- Maximum load supported: 4.5 kg

- Compact size: Ø137 x 42 mm

- Weight: 280 g

- Neutral color: white, for discreet installations

Further details

Material:
Made of high-strength aluminum alloy with a spray-finished surface, this box ensures long-lasting durability and excellent protection against oxidation, corrosion, and weathering. The material also provides structural rigidity and a neutral aesthetic thanks to its white color .
Resistance :
It ensures high mechanical strength, with a load capacity of 4.5 kg. The bottom cover and side gland nut are interchangeable and waterproof, ensuring an ideal seal for outdoor use. It must be installed on a flat surface capable of supporting at least three times the combined weight of the camera and bracket, ensuring long-term safety and stability.

Technical data sheet

HYU-1005
Specifications
Dome junction box
Side and bottom entrances
The waterproof bottom cover and side gland nut are interchangeable
Must be installed on a flat surface that can support more than 3 times the total weight of the camera and bracket
Load capacity of 4.5 kg
Aluminum alloy with sprayed surface treatment
Water resistant
Color: white
Dimensions: Ø137 x 42 mm
Weight: 280 g
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
