IPC-HFW2649S-S-IL - The IP camera is a professional WizSense solution designed to offer high-performance intelligent video surveillance in indoor and outdoor environments. Equipped with a 6MP CMOS sensor and 2.8 mm fixed lens , it guarantees clear, detailed images and a wide viewing angle . Smart Dual Light technology ensures advanced night vision with IR and warm light up to 30 m , reducing light pollution. The WizSense AI functions with SMD Plus and perimeter protection improve alarm accuracy by distinguishing people and vehicles. The integrated microphone , Smart H.265+ compression and IP67 protection make this camera reliable, efficient and ideal for advanced security systems. Dahua
IPC-HFW2649S-S-IL | 6MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - FULL COLOR

The Dahua IPC-HFW2649S-S-IL IP camera is a professional-grade WizSense solution designed to ensure intelligent high-definition video surveillance in indoor and outdoor environments. The 6MP CMOS sensor ensures extremely clear images, while the 2.8 mm fixed lens offers a wide field of view ideal for monitoring large areas. Smart Dual Light technology enables advanced night vision with IR and warm light up to 30 m , providing color images only when events occur. The AI WizSense functions with SMD Plus and perimeter protection improve alarm accuracy by distinguishing people and vehicles. The built-in microphone , Smart H.265+ compression and IP67 protection make this camera reliable, efficient and suitable for advanced security systems.
Main specifications:
- 6MP resolution with high-performance 1/2.7” CMOS sensor
- 2.8mm fixed optics with wide viewing angle
- Smart Dual Light with IR illumination and warm light up to 30 m
- WizSense AI with SMD Plus and perimeter protection
- Built-in microphone for audio recording
- Smart H.265+ compression and IP67 protection for outdoor use
Further details

Technical data sheet
| MODEL | IPC-HFW2649S-S-IL |
| Room | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 112°; V: 61°; D: 132° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.28 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 2 stream |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 2.5W (12VDC); 3.3W (PoE); Max.: 4.4W (12VDC); 5.4 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |

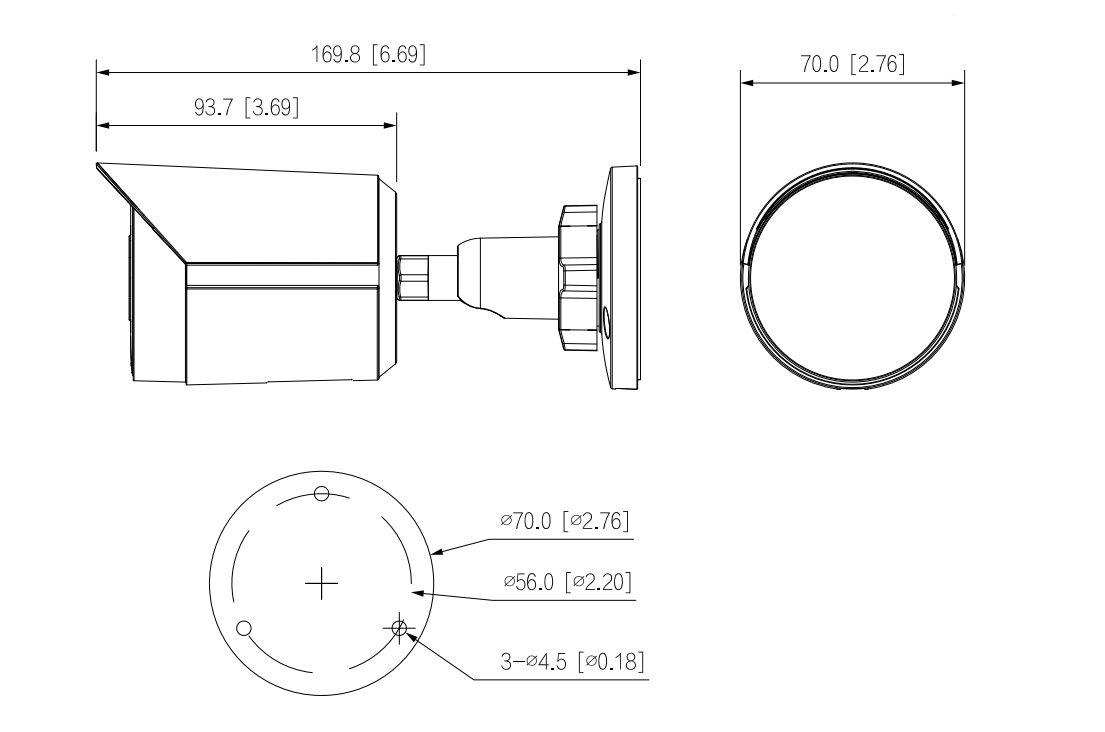

| Product Dimensions | 169.8 mm × 70 mm × 70 mm (6.69" × 2.76" × 2.76") (L × W × H) |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
