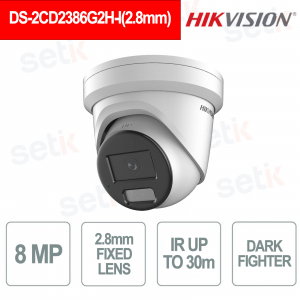

8MP 2.8mm AcuSense DarkFighter IP67 IR30m Turret IP Camera - Hikvision

8MP 2.8mm AcuSense DarkFighter IP67 IR30m Turret IP Camera - Hikvision
BEST SELLER -35% New

DS-2CD2386G2H-I(2.8mm) - is an IP turret camera with 8 MP (3840 × 2160) resolution and 1/1.8" Progressive Scan CMOS sensor, designed for high definition video surveillance. Equipped with a 2.8mm fixed lens with 108.8° horizontal FOV and F1.0 aperture, it guarantees wide coverage and bright images up to 0.001 Lux thanks to Powered-by-DarkFighter technology. WDR 120 dB ensures clarity even in strong backlighting, while AcuSense technology with deep learning allows intelligent classification of people and vehicles. It supports H.265+ compression , IR up to 30 m , integrated microphone in the -U version and IP67 protection, ideal for professional outdoor installations. Hikvision

Technical Data Sheet

Reference: DS-2CD2386G2H-I(2.8mm)

Brand: Hikvision

EAN: 6942160432649

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD2386G2H-I(2.8mm) – FIXED LENS TURRET CAMERA 2.8mm 8MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER

Hikvision

The Hikvision DS-2CD2386G2H-I 2.8mm is an IP turret camera with 8 MP (3840 × 2160) resolution and 1/1.8" Progressive Scan CMOS sensor , designed for high-definition video surveillance. Equipped with a 2.8mm fixed lens with 108.8° horizontal FOV and F1.0 aperture , it guarantees wide coverage and bright images up to 0.0008 Lux thanks to Powered-by-DarkFighter technology . The 120 dB WDR ensures clear footage even in strong backlighting, while AcuSense technology with deep learning allows for intelligent classification of people and vehicles. It supports H.265+ compression , IR up to 30 m , microSD slot up to 512 GB and IP67 protection , making it ideal for professional outdoor installations.

Main features:

- Resolution 8 MP 3840 × 2160

- Fixed lens 2.8mm FOV 108.8° F1.0

- DarkFighter Technology 0.0008 Lux

- Real WDR 120 dB

- AcuSense Human & Vehicle Detection

- IR up to 30 m and IP67 protection


Further details

Fixed optics :
2.8mm
wide-angle lens with 108.8° horizontal FOV , F1.0 aperture and 3.3m to infinity depth of field, ideal for wide coverage of indoor and outdoor environments with a high level of detail.
Resolution:
8 MP ( 3840 × 2160 )
1/1.8" Progressive Scan CMOS sensor for high-definition images, higher pixel density and better identification of people and objects.
DarkFighter Technology :
Advanced low light technology down to 0.0008 Lux , ensuring clear and bright images even in night scenes.
Human Detection:
Intelligent person detection via AcuSense with deep learning , with alarm filtering to reduce false positives.
Vehicle Detection :
Targeted vehicle identification thanks to dedicated AI algorithms , ideal for car parks, entrances and perimeter areas.
Motion Detection :
Advanced motion detection system with alarm triggering based on specific targets (people and vehicles).
Deep Learning Function :
Smart features such as Face Capture and Perimeter Protection (line crossing, intrusion, region entrance/exit) for intelligent video analytics and proactive security.
 Network Protocol:
Full compatibility with TCP/IP, HTTP, HTTPS, RTSP, ONVIF (Profile S, G, T), IPv4/IPv6 , SSL/TLS and SNMP, for easy integration into professional IP video surveillance systems.

Technical data sheet

DS-2CD2386G2H-I(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 3.3 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Web Browser

Plug-in required live view: IE 11,
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8W

Material

Cover: Metal, main body: Metal

Dimension

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")

Weight

Approx. 775 g (1.7 lb.)

With Package Weight

Approx. 1231 g (2.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32:2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
