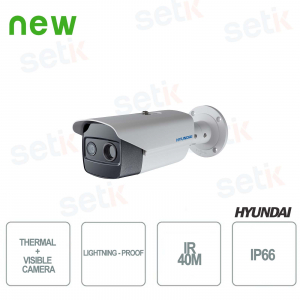

HYU-747 Hyundai thermal + visible outdoor video surveillance camera with 15 mm lens. 40 meter IR illuminator, 1 / 2.8 "2 Megapixel CMOS, VCA, WDR digital, 3D-DNR, Audio, Alarm, IP / ANALOG video output, microSD slot up to 128GB, Lightning-proof, PoE + support, IP66 protection Hyundai Nextgen
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

THERMAL + VISIBLE BULLET CAMERA - IR 40M - PoE + - HYUNDAI

IR 40M - Resolution 384 x 288 - 8 mm optics - PoE + - CMOS 1 / 2.8 "2 Megapixel - Audio - Alarm - microSD slot - Lightning-proof
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)
Product details
|
 HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.  |
| THERMAL DETECTION |
|---|
|


  |
![]()  |
 This camera is equipped with a fixed 8mm lens People detection : 441 meters, recognition: 110 meters, identification: 55 meters Vehicle detection : 1353 meters, recognition: 338 meters, identification: 169 meters  |
![]()  |
 This camera features a resolution of 1920x1080 2 megapixels high performance CMOS sensor  |
![]()  |
 This camera is a THERMAL CAMERA .

  |
![]() ![]()  |
 This camera has advanced smart features:
  |
| This camera has 1 input + 1 audio output | |
![]()  |
IP66: Guarantees protection from dust and water jets (rain) |
![]()  |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-747 |
| THERMAL CHAMBER | |
|
 FPA sensor (focal plane arrays) not cooled with vanadium oxide  |
|
|
 Thermal resolution of 384x288  |
|
|
 Pixel range: 17μm  |
|
|
 Thermal sensitivity (NETD): <40 mk="" 25="" c="" f="" 1="" 0="" p="">  |
|
|
 Spectrum range: 8 μm ~ 14 μm  |
|
|
 Focal distance (thermal): 15 mm  |
|
|
 Viewing angle (thermal): 24.2 ° x 18.4 °  |
|
|
 Minimum focusing distance of 2.5 meters  |
|
|
 Effective distance of people: Detection (441m), recognition (110m), identification (55m)  |
|
|
 Effective distance of vehicles: Detection (1353m), recognition (338m), identification (169m)  |
|
|
 15 adjustable color palettes, 3D-DNR  |
|
|
 Enhancement of image details  |
|
|
 Supports 4 types of VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules  |
|
|
 Temperature range of -20 ° C ~ + 150 ° C  |
|
|
 Temperature accuracy of ± 8 ° C  |
|
|
 Supports 3 types of temperature averaging rules, 21 rules (10 points, 10 regions and 1 line)  |
|
|
 Support 10 fire detection points  |
|
| VISIBLE ROOM | |
|
 Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan of 2 megapíxels  |
|
|
 Effective Pixels: 1920 x 1080  |
|
|
 Infrared lighting of up to 40 meters  |
|
|
 Minimum Illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / W) / 0 lux IR On  |
|
|
 Focal distance (visible optics): 8 mm  |
|
|
 Viewing angle (visible optics): 40 ° x 22.4 °  |
|
|
 Removable mechanical filter  |
|
|
 WDR digital  |
|
|
 It supports bi-spectrum image merging, image-to-image preview and image swapping  |
|
| IP COMMUNICATION AND INTEGRATION | |
|
 Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile)  |
|
|
 Stream 1 thermal chamber: 384x288 at 50 ips Stream 2 thermal chamber: 384x288 at 50 ips  |
|
|
 1 visible camera stream: 1080P / 1.3MP / 720P at 25 ips Stream 2 visible camera: D1 / CIF / QCIF at 25 ips  |
|
|
 Audio Compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM  |
|
|
 1 self-adaptive 10 / 100M RJ45 port  |
|
|
 Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE  |
|
|
 Up to 20 simultaneous views  |
|
|
 Up to 32 users, 3 levels: administrator, operator, user  |
|
|
 Compatibility API, ONVIF®, API, ISAPI, and third party management gateway  |
|
|
 Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) navigators  |
|
|
 2 alarm inputs / 2 outputs  |
|
|
 Reset button  |
|
|
 MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording  |
|
|
 BNC output 1.0V [pp] / 75Ω (PAL / NTSC)  |
|
| ELECTRICAL AND ENVIRONMENTAL | |
|
 Power supply: 24V AC, 12V DC, PoE + (802.3at, class 4)  |
|
|
 Consumption: max. 20W  |
|
|
 Operating temperature of -40 ° C ~ + 60 ° C  |
|
|
 Relative humidity: ≤90% (non-condensing)  |
|
|
 Degree of protection IP66  |
|
|
 Lightning-proof of 6KV  |
|
| PHYSICAL CHARACTERISTICS | |
|
 Metal casing  |
|
|
 Dimensions: 93 (W) x 93 (H) x 314 mm  |
|
|
 Weight: 1.55 kg  |
|
|
 Includes wall mount  |
|
|
 Note: The actual distance values shown are nominal values and should be used as an estimate. Consult your sales representative for the recommended detection distances with our Vaelsys perimeter system.  |
|
