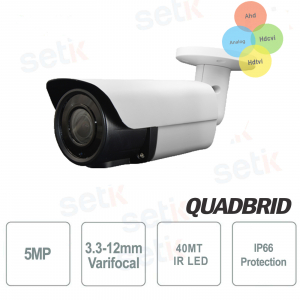

Hyundai 5 MP 4 in 1 3.3-12 mm IR White Video Surveillance Camera

Hyundai 5 MP 4 in 1 3.3-12 mm IR White Video Surveillance Camera
CERCHI ASSISTENZA O UN INSTALLATORE?

HYU-471N Hyundai PRO series 4 in 1 bullet video surveillance camera with IR 20 LED 40M outdoor illuminator, 1 / 2.5 "CMOS sensor, 5 MP 5Megapixel resolution and 3.3-12mm varifocal lens. 4 Technologies in 1 HDTVI / HDCVI / AHD / ANALOG 960H , Day / Night (ICR), OSD, AWB, AGC, BLC, Defog, IP66. Color White



Reference: HYU-471N

Brand: Hyundai Security

EAN: 2123456791457

€107.73

taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%



Videosorveglianza Hyundai Security

4 IN1 BULLET CAMERA HYUNDAI 5 MEGAPIXEL 3.3-12MM - HDTVI / HDCVI / AHD / 960H - IR 40 METERS

Hyundai Security HYU-471N Hyundai 4in1 Bullet Outdoor Camera
Quad hybrid "HDTVI / HDCVI / AHD / ANALOG 960H" - Resolution 5 MP - Lens 3.3-12mm
Smart IR 20 LED 40MT illuminator - ICR filter
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our site?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

4 tecnologie in 1

4 TECHNOLOGIES IN 1:

This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG).

Tecnologia HDTVITecnologia HDCVITecnologia AHD

Switch Technologies:

Technologies switchable via OSD

Risoluzione 5.0 Megapixel (2560x1920)

5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

Risoluzione 5Megapixel

Ottica varifocale This camera is equipped with a 3.3-12mm varifocal lens

Illuminatore IR 20 MT

Smart IR illuminator with 20 LEDs and a maximum range of about 40 meters

Menu OSD

The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, BLC, HLC, etc.

OSD via coaxial (CVI, TVI, AHD mode only, up to 300 meters)

Funzione Defog It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
Immagine esempio per la funzione Defog
DEFOG function example image
Funzione Day/Night Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Esempio Funzione Day/Night
Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Backlight Compensation

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, number plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Funzione AGC Automatic Gain Control AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Funzione Digital WDR

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)
12V 3A power supply A 12VDC power supply is required for the operation of this camera (not included)
12V DC power supply
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

HYU-471N
4-in-1 bullet camera with infrared illumination up to 40 meters
5 megapixel Sony 1 / 2.5 "CMOS sensor
Digital resolution
HDCVI: 4MP (2560x1440) @ 25/30 ips
HDTVI: 5MP (2560x1936) @ 20 ips
AHD: 5MP (2560x1936) @ 20 ips
Analogue CVBS: 960H @ 25/30 ips
4 in 1 output (switchable by OSD): HDCVI / HDTVI / AHD / CVBS 960H
Removable mechanical filter
0.02 lux F1.2 color (AGC On) / 0 lux IR On
Optical glass window with increased light transmission.
Smart IR: 20 SMD LED arrays, 30 ~ 40 meters
3.3 ~ 12mm varifocal lens
OSD through of coax (only in CVI, TVI, AHD mode, range of 300 meters)
Automatic white balance
Automatic gain control
Backlight compensation: BLC, HLC
Digital WDR
2D / 3D-DNR
Defog, mirror mode
Video sensor
Power supply: 12V DC (± 10%)
Power consumption: <8W
Working temperature: -20 ° C ~ + 60 ° C
Relative humidity: 10% ~ 90%
Degree of protection IP66
Metal housing
Dimensions: 262.3 x 75 x 73 mm
