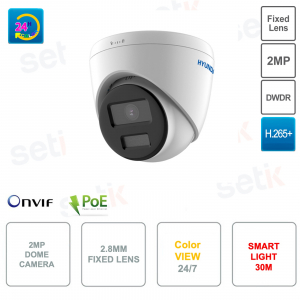

ColorView Dome Camera 2MP IP PoE ONVIF® - 2.8mm Lens - For outdoor use - Smart light 30m

ColorView Dome Camera 2MP IP PoE ONVIF® - 2.8mm Lens - For outdoor use - Smart light 30m
CERCHI ASSISTENZA O UN INSTALLATORE?

HYU-934 Hyundai Color View IP PoE ONVIF Dome Video Surveillance Camera from 2MP - 1080p FullHD - 1 / 2.8 "CMOS sensor from 2MP - 2.8mm fixed lens - Dual Stream - Video up to H.265 + - DWDR - 3DNR - AGC - AWB - BLC - ColorView for 24/7 color vision - Smart light 30m - LAN Ethernet RJ45 100M - IP67 protection - Ideal for outdoor use -



Reference: HYU-934

Brand: Hyundai Security

€130.71

taxes included
Tax included
 Available in 5 days
 starting


Videosorveglianza Hyundai Security

COLOR VIEW DOME CAMERA - 2 MEGAPIXEL - OUTDOOR - IP POE ONVIF® - 2.8MM FIXED LENS - SMART LIGHT 30M - DWDR - IP67

Hyundai Security

HYU-934 Outdoor PoE ONVIF® IP Dome Camera - Hyundai Security
1 / 2.8 "CMOS with 2MP FullHD 1080p resolution - 2.8mm fixed lens
Smart Light 30 MT Illuminator - ICR Filter - DWDR - RJ45 100M - Privacy Masking - AGC - AWB -
Hyundai 3 Year Extended Warranty! - Suitable for outdoor environments

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our site?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

24 hours in color

2MP 1 / 2.8 "CMOS sensor with Color View Starlight Technology !

COLOR VIEW STARLIGHT:

By adopting a high performance sensor and large aperture lens, this camera is able to provide a more colorful image even in low ambient light conditions. Full-color starlight cameras are perfect for low-light applications that exceed 1 lux, such as parking lots, urban streets, schools, museums, etc.
* If the lighting conditions are in total darkness, the video cannot be used for monitoring.

24H COLOR:

This camera has no IR CUT filter.

The camera does not switch to B / W but the vision will always be in color.

Day/Night Standard VS Day/Night Color

Risoluzione 1080P 2MP

This camera features a resolution of 1920x1080 FULL-HD

2 megapixels high performance CMOS sensor!

Ottica fissa This camera is equipped with a 2.8mm fixed lens
Smart H.265 + video encoding

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Illuminatore IR 20 MT

30 METERS Smart light illuminator!

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.


Funzione Day/Night Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Esempio Funzione Day/Night
Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Funzione AGC Automatic Gain Control AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
DWDR function

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Backlight compensation function

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...).


immagine esempio funzione Backlight compensation

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

12V 3A power supply A 12VDC power supply is required for the operation of this camera (not included)
12V DC power supply
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

Data sheet
  • 1 / 2.8 ”2 megapixel CMOS sensor
  • Compression formats: H.265 +, H.265, H.264 +, H.264, MJPEG
  • Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), VGA (640x480), Q720P (640x360), QVGA (320x240)
  • Stream 1: 1080P, 1.3MP, 720P (25fps)
  • Stream 2: VGA, Q720P, QVGA (25 fps)
  • 24/7 color mode
  • Smart Light: white light with a range of 30 meters
  • 0.001lux F1.0
  • Fixed 2.8mm lens
  • Viewing angle: 107 ° (H), 56 ° (V), 127 ° (D)
  • Picture modes: BLC, HLC, digital WDR, 3D-DNR, Mirror
  • 1 main stream of fixed ROI zone
  • Video sensor and privacy mask
  • Image rotation, brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software and web browser
  • Network interface: RJ45 (10 / 100M)
  • Network protocols: TCP / IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP ™, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL / TLS
  • Compliant with ONVIF® (S / G / T), ISAPI and SDK
  • Up to 32 users and 6 simultaneous views
  • Remote viewing via IE, Chrome and Firefox browsers
  • Plug & Play connection with NEXTGEN NVR
  • Compatible with DDNS DEMES
  • Power supply: 12V DC (± 25%), 0.3A
  • Consumption: 3.6 W
  • Supports PoE (802.3af)
  • PoE consumption: 4.5W
  • Storage temperature -30 ° C ~ + 60 ° C
  • Operating temperature -30 ° C ~ + 60 ° C
  • Relative humidity: 95% (non-condensing)
  • Degree of protection IP67
  • metal and plastic case
  • metal and plastic case
  • Weight: 350 g
