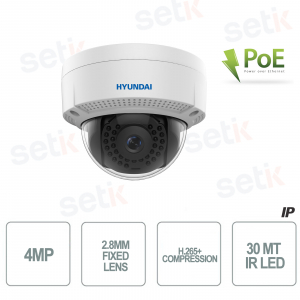

HYU-409N | Equivalent SF-IPD820WA-4E - Hyundai IP ONVIF POE outdoor dome video surveillance camera with 30M IR illuminator, 1/3" CMOS sensor, 4 MP resolution and 2.8mm fixed lens. Video compression up to H.265+ , Day /Night (ICR), AGC,BLC, ROI, IP67 protection
discover the available quantity
IP CAMERA ONVIF® POE OUTDOOR VIDEO SURVEILLANCE HYUNDAI 4 MEGAPIXEL 2.8MM
HYU-409 Hyundai IP ONVIF® PoE camera4 Megapixel 4 MP - 2.8mm lens - Compression up to H.265+ - 1/3" CMOS sensor
IR illuminator 30M - Day/Night(ICR), OSD, AGC,BLC - Movement on 3 axes
Extended 3 Year Hyundai Warranty! - IP67 and IK10 protection (Vandal acts)
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features a resolution of 4Megapixel 4 MP! 1/3" CMOS sensor |
| H.265+ H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without strain the network. H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features a 2.8mm fixed lens |
| IR LED illuminator with a maximum range of about 30mt |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Protection level IP67 ( Dust / Immersion ) |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-409N |
| Room |
| 1/3" 4 megapixel CMOS image sensor |
| Resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
| Stream 1: 4MP (20fps), 3MP, 1080P, 720P (25fps) |
| Stream 2: VGA, Q720P (25fps) |
| Day/night mode with removable mechanical filters (ICR) |
| 0.01 lux F2.0 (color, AGC On), 0 lux IR On |
| Smart IR: 30 meters |
| 2.8mm fixed lens |
| View Angle: 98°(H), 53.1°(V), 114.7°(D) |
| Image modes: BLC, WDR 120dB, 3D-DNR |
| 1 fixed ROI zone in main stream |
| Video sensor and privacy mask |
| Brightness, saturation, contrast, sharpness, gain control and white balance adjustment via client software or web browser |
| Network interface: RJ45 (10/100M) self-adaptive |
| Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL /TLS |
| ONVIF®, ISAPI Compliant |
| Up to 32 users and 6 simultaneous views |
| Compatible with IE, Chrome and Firefox browsers |
| Plug&Play connection with NEXTGEN NVR |
| Compatible with DDNS DEMES |
| Power: 12V DC (±25%) / PoE (802.3af) |
| Consumption: 5W (12V) / 6.5W (PoE) |
| Operating temperatures -30°C ~ +60°C |
| Humidity: <95% (non-condensing) |
| Degree of protection IP67 |
| aluminum case |
| Dimensions: Ø111 x 82.4mm |
| Weight: 360g |
