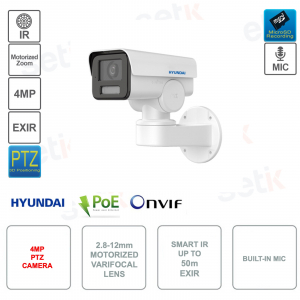

IP POE ONVIF PTZ outdoor camera - 4MP - 2.8-12mm lens - Microphone - Smart IR 50m - IP66

IP POE ONVIF PTZ outdoor camera - 4MP - 2.8-12mm lens - Microphone - Smart IR 50m - IP66
CERCHI ASSISTENZA O UN INSTALLATORE?

HYU-1030 - Equivalent SF-IPPT404ZWA-4E - Hyundai Outdoor POE ONVIF IP PTZ Bullet Camera - 1/3" CMOS sensor, 4MP 2560x1440p progressive resolution and 2.8-12mm motorized varifocal lens - Smart IR up to 50m with EXIR 2.0 - Smart H.265+ codec with Dual STream - Built-in microphone - BLC, HLC, WDR 120dB, 3D-DNR - ROI - MicroSD 256GB slot (not included) - Plastic and metal - IP66 protection for outdoor use.



Reference: HYU-1030

Brand: Hyundai Security

EAN: 2123456792607

€314.98

taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%



Videosorveglianza Hyundai Security

OUTDOOR PTZ IP POE ONVIF BULLET CAMERA HYUNDAI 4 MEGAPIXEL 2.8-12MM - SMART IR 50M EXIR 2.0 - MICROPHONE - IP66 - HYUNDAI SECURITY - HYU-1030

Hyundai Security
HYU-1030 Hyundai PTZ IP POE ONVIF Bullet Outdoor Camera
4MP 4Megapixel resolution - 2.8-12mm motorized varifocal lens - 4MP 2560x1440p CMOS sensor - Smart H.265+ codec with Dual Video STream - Smart IR 50m illuminator with EXIR 2.0 - Day/Night(ICR), BLC, HLC, WDR 120dB, 3D-DNR - ROI - Mirror Mode - 4 privacy masks - Microphone on board - In plastic and metal - IP66 protection ideal for outdoor use - MicroSD slot up to 256GB (not included) - LAN Ethernet network interface 10/100M RJ- 45.
Extended 3 Year Hyundai Warranty!

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

This product complies with the Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Risoluzione 4mp

This camera features a resolution of 4 MP!

1/3" 4 Megapixel CMOS sensor

Varifocal optics Motorized varifocal lens 2.8-12mm.
Smart H.265+ video encoding

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Illuminatore IR 20 MT

EXIR technology

IR illuminator maximum range 50 meters !

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

EXIR 2.0 TECHNOLOGY

This technology remedy the classic annoyances of the traditional IR illuminator.

In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens completely eliminates possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated in a circular array with various LEDS around the lens.

This most often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS ISSUES WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hotter IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are much smaller.

Tecnologia EXIR 2.0

Funzione Day/Night Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Esempio Funzione Day/Night
Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Backlight Compensation

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
ULTRA_WDR_TLC.jpg ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db
TLC_MICINTEGRATED.jpg Microphone on board!
Protezione IP66 IP66: Guarantees protection from dust and water jets (rain)

MicroSD recording MicroSD card slot up to 256GB (not included, sold separately)
12V 3A power supply A 12VDC power supply is required for the operation of this camera (not included)
12V DC power supply
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

HYU-1030

4-megapixel 1/3" CMOS image sensor

Resolution: 4MP (2560x1440), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360)

H.265+, H.265, H.264+, H.264, H.264 and MJPEG video compression

Stream 1: 4MP (20fps), 1080P, 720P (25/30fps)

Stream 2: 720P, VGA, Q720P (25/30fps)

Day/Night mode with removable mechanical filters (ICR)

0.007 lux F1.6 (colour), 0 lux IR On

Smart IR: 50 meters (EXIR 2.0)

2.8 ~ 12mm motorized optics

Viewing angle: 96.7°~29.7°(H), 51.7°~16.7°(V), 114.3°~34°(D)

Picture modes: BLC, HLC, WDR 120dB, 3D-DNR.

1 fixed ROI zone for the main stream

Mirror mode, saturation, brightness, contrast, sharpness, gain and white balance adjustable via client software or web browser

4 privacy masks

Positioner: -100°~+100°(H), -20°~45°(V)

Built-in microphone

MicroSD card slot for up to 256GB (card not included)

Network interface: RJ45 (10/100M) self-adapting

Network protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

Onvif (S/G), ISAPI, SDK support

Up to 32 users and 6 remote views

Compatible with IE, Chrome and Firefox browsers

Plug&Play connection with NEXTGEN NVR

Compatible with DDNS DEMES

Power supply: 12V DC (±25%) / PoE (802.3af)

Power consumption: 11W (12V) / 12.5W (PoE)

Operating Temperature -30°C ~ +60°C

Humidity: <95% (non-condensing)

IP66 degree of protection

Metal and plastic housing

Dimensions: 105(W) x 197.1(H) x 225.4mm

Weight: 900g
