141802.366.NC | HYBRID CONTROL PANEL WITH PHOTO VERIFICATION - CONNECTABLE VIA ETHERNET, WI-FI, AND TWO SIM CARDS (2G/3G/LTE) - DESIGNED FOR INSTALLATION IN AN AJAX HOUSING


Ajax

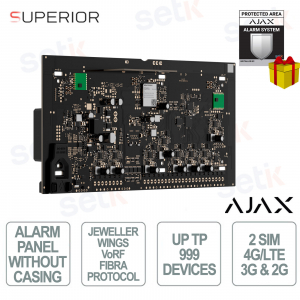

The Ajax Superior MegaHub without casing, 141802.366.NC, is a professional hybrid control panel designed for large security systems, capable of managing up to 999 devices and integrating fiber and wireless technologies to ensure maximum scalability and advanced protection. Thanks to Ethernet, Wi-Fi, and dual LTE SIM connections, it ensures operational continuity even in critical scenarios, while compatibility with MotionCam enables immediate and intelligent photo verification. Certified EN 50131 Grade 3, it offers tamper resistance, quick installation via QR code, and support for up to 100 automation scenarios for complete and reliable control of the entire system.

Main specifications:

- Management of up to 999 devices between Fiber and wireless

- Integrated connections: Ethernet, Wi-Fi, dual SIM 2G/4G LTE

- 8 Fiber lines with Beam, Ring and Tree topologies

- Superior Jeweler, TurboWings and VoRF radio protocols up to 2,000 m

- MotionCam photo verification support with multiple trigger modes

- Up to 100 automation scenarios and 100 security groups

- Anti-sabotage functions: tamper, anti-jamming, device authentication

- Quick installation with automatic line scanning and remote configuration

- Up to 60 hours of battery life with backup battery (not included)

Further details

✅ Wired Protocol:
It uses the Fiber protocol with a range of up to 2,000 m , supporting 8 independent lines in Beam, Ring, or Tree topology. It guarantees stable communication, direct device powering, and instant detection of interruptions or short circuits, ensuring maximum operational continuity.
✅ Hybrid system :
It combines wired and wireless technology in a single control panel, managing up to 999 devices, including fiber sensors and radio modules. This hybrid architecture allows for the creation of extensive and highly customized systems, combining physical security and installation flexibility.
✅ Wireless protocols :
 It supports Superior Jeweller, TurboWings, and VoRF, with radio coverage up to 2,000 m (1,700 m for TurboWings and VoRF). Communication is protected with encryption, anti-jamming protection, and automatic packet retransmission, ensuring minimal latency and reliability even in noisy environments.
✅ Photo verification support:
Compatible with MotionCam detectors, it allows photo verification triggered by alarm, tampering, magnetometer, scenario, scheduled schedule, or manual request. Images are transmitted rapidly to verify actual intrusions and reduce false alarms.
✅ Automation scenarios:
It allows up to 100 scenarios based on alarms, schedules, system activation/deactivation, buttons, LightSwitches, or environmental parameters (temperature, humidity, CO₂). Ideal for setting up automatic responses such as opening doors, managing lights, activating relays, and energy optimization.
✅ Sabotage Resistance:
It includes tamper alarms, fiber optic cable break detection, anti-jamming protection, device authentication, and Ring topology that keeps sensors active even if the cable is cut. Certified to EN 50131 Grade 3 , it offers high protection against tampering and compromise attempts.

Technical data sheet

141802.366.NC
Capacity Ajax devices
up to 9991
Specifically, up to 10 range extenders
1 The limit applies only to devices with the new firmware version. If at least one device with the legacy firmware version is added, the limit is divided into two ranges:
  • up to 250 devices — with the legacy firmware version;
  • up to 749 devices — with the new firmware version

Ajax NVRs
up to 36
Ajax cameras
up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
up to 100 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 1000

  • Any number of admin users within the hub limit.
  • PRO accounts for installers
  • PRO accounts for installation and monitoring companies

Automation scenarios
up to 100

  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch

Security groups
up to 100
Rooms
up to 500
Event log
up to 1,000 events
Events are saved on the non-volatile onboard flash memory.
Wired communication Fiber communication technology
Proprietary wired communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Line connection
4-core cable
Input
8 Fiber lines
Compatible with Fiber devices only
Fiber line length
up to 2,000 m
up to 6,550 ft
When the U/UTP cat.5 twisted pair cable is used.
Power supply of devices
up to 14.4 W
For all connected wired devices.
Output voltage range
23–25.1 V⎓
Maximum rated output
0.53 A
Maximum output peak-to-peak ripple voltage
220 mV
Topologies
  • Beam (Radial wiring)
  • Ring
  • Tree
If the line breaks, the ring splits into two working segments, the devices continue to operate, and the system notifies a monitoring company and users of the incident.
Polling interval
from 12 to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 2,000 m
Up to 6,500 ft
Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device.
Polling interval
from 12 s to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Frequency hopping
Proprietary wireless communication technology to transmit large data packets.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Data packet reload if a transmission error occurs.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference
Radio communication range
Up to 2,000 m
Up to 6,500 ft
Between the hub and the devices added to it in open space. The maximum range depends on the added device
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Recommendations The device operating voltage is 110–240 V~.
It could be installed in Case D, which is sold separately.
Communication channels Ethernet
1 × 8P8C socket
Up to 100 Mbps.
Cellular
2 × micro SIM slot
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Wi-Fi
802.11 b/g/n module
Up to 72 Mbps.
Automatic switching between communication channels
  • Switching between SIMs — up to 4 minutes.
  • Switching between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
  • Switching between Ethernet, Wi-Fi, and SIM — instantly.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system's reliability. Most of the data is transmitted via Ethernet.
External antenna connectors
Jeweler
Wings
4G (LTE)
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Alarm transmission system categories
SP2, SP5, DP4
Control panel operation method
pass-through
Signaling security
S2
Substitution security
Information security
I2
Encryption algorithm
AES-128-GCM
Notifications Notification types
  • Push notifications
  • SMS
  • Calls

Event types

  • Alarms
  • Video alarms
  • Malfunctions
  • Security state change
  • System events
  • Non-security alerts
  • Automation devices
  • Smart lock events
  • Doorbell ringing
Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements.
Photo verification Photo verification types
  • Photo by alarm
  • Photo by scenario
  • Photo on demand
  • Photo by schedule
  • Photo by arming/disarming
Photo delivery time
up to 9 s
By default
Photo resolution
up to 960 × 720 pixels
Depends on the detector
Number of photos in a series
from 1 to 5 pictures
Monitoring Supported protocols
  • SIA DC-09 (SIA-DCS)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols

Event types

  • System alarms and events
  • Panic button coordinates
  • Photo verification
Sabotage protection Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
Superior Hub G3 Jeweler analyzes the channel's noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Power supply Main power supply type
Type A
Device operating AC voltage range
110–240 V, 50/60 Hz
From the main power supply. Maximum current consumption is up to 1.8 A.
Device operating DC voltage range
10.5–15 V⎓
Autonomous operation
up to 60 hours
Superior Hub Hybrid 2 with a 7 Ah backup battery can power a system of 15 wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply
Battery power saver mode allows extending the backup battery life
Low battery voltage
11.7 V⎓
Low battery recovery voltage
12.7 V⎓
End-of-life battery voltage
10.5 V⎓
Superior MegaHub switched off.
Maximum output peak-to-peak ripple battery voltage
220 mV⎓
Minimum backup battery energy level in the charged state
100%
Current consumption Maximum at nominal voltage
240 mA
Quiescent at nominal voltage
up to 102 mA
When GSM and Ethernet are enabled.
up to 61 mA
When Ethernet is disabled.
Enclosure Dimensions
130 × 270 × 60 mm
5.12″ × 10.63″ × 2.36″
Weight
410 g
14.5 oz
Operating temperature range
from −25 °C to +55 °C
from −13 °F to 131 °F
Operating humidity
up to 95% without condensation
Complete set Superior MegaHub (without casing)
Power cable
Screw terminal block adapter (for INCERT compliance only)
Battery connection cable
LED board
LED board connection cable
Ethernet cable
Eight 120 Ω terminating resistors
Quick start guide
Warranty 24 months
