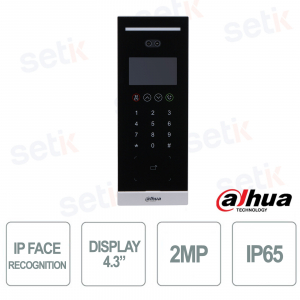

VTO6531H-S2 IP Video Intercom with Facial Recognition: Smart Security for Condominiums and Offices

VTO6531H-S2 IP Video Intercom with Facial Recognition: Smart Security for Condominiums and Offices

-57% New

VTO6531F-S2 - The video intercom offers advanced access control with IP facial recognition, a 4.3-inch display, and a 2MP dual-lens HD camera. It recognizes faces up to 2 meters away with 99.9% accuracy and a 0.2-second recognition speed. It integrates white lights for night vision and stores up to 20,000 faces and 20,000 cards. It supports remote unlocking, PoE connection, IP65 protection, multi-user management for up to 40,000 users, and interfacing with apps, an internal monitor, and management software, making it ideal for condominiums and businesses. Dahua

Technical Data Sheet

Reference: VTO6531H-S2

Brand: Dahua

EAN: 6923172583628

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VTO6531H-S2 | IP EXTERNAL STATION WITH KEYBOARD

Dahua

The Dahua VTO6531H-S2 video intercom provides advanced security with high-precision facial recognition (99.9%) and AI technology for access control in condominiums, offices, and residential complexes. Equipped with a 2MP HD dual camera, 4.3" LCD screen, and automatic lighting for night vision, it offers smart app management, video intercom, and remote unlocking .

Main specifications:

- Fast facial recognition in 0.2 seconds

- Memory up to 40,000 users and 20,000 faces

- Tamper alarm and counterfeit detection

- Unlock via face, password, card, QR code and app

- IP65 resistance and standard PoE power supply

Further details

Display:
The device features a large 4.3-inch color LCD display with a resolution of 800x480 pixels. This screen provides a clear view of video images and control interfaces, ensuring easy and visible operation even in bright lighting conditions.
Camera Resolution :
It integrates a dual 2-megapixel CMOS camera, capable of ensuring high-definition images even in low-light conditions. The lens configuration allows for a 95° horizontal, 50° vertical, and 110° diagonal field of view, with support for 120dB WDR and 3D noise reduction for superior video quality.
Support and Compatibility :
It supports a wide range of network protocols such as ONVIF, SIP, RTSP, and HTTPS, making it seamlessly integrated with leading video surveillance and access control systems. Compatible with indoor intercoms (VTH), control panels (VTS), and mobile apps for flexible remote control.
Facial recognition:
It features advanced AI facial recognition with 99.9% accuracy, a recognition range of 0.3 to 2 meters, and an identification speed of 0.2 seconds. It supports anti-spoofing detection via liveness verification to prevent fraudulent logins via photos or videos.
Standard PoE Power Supply:
It supports standard PoE (Power over Ethernet) according to the IEEE 802.3.at protocol, simplifying installation with a single cable for power and data. It also offers a 12VDC output for powering additional accessories such as card readers or external modules.

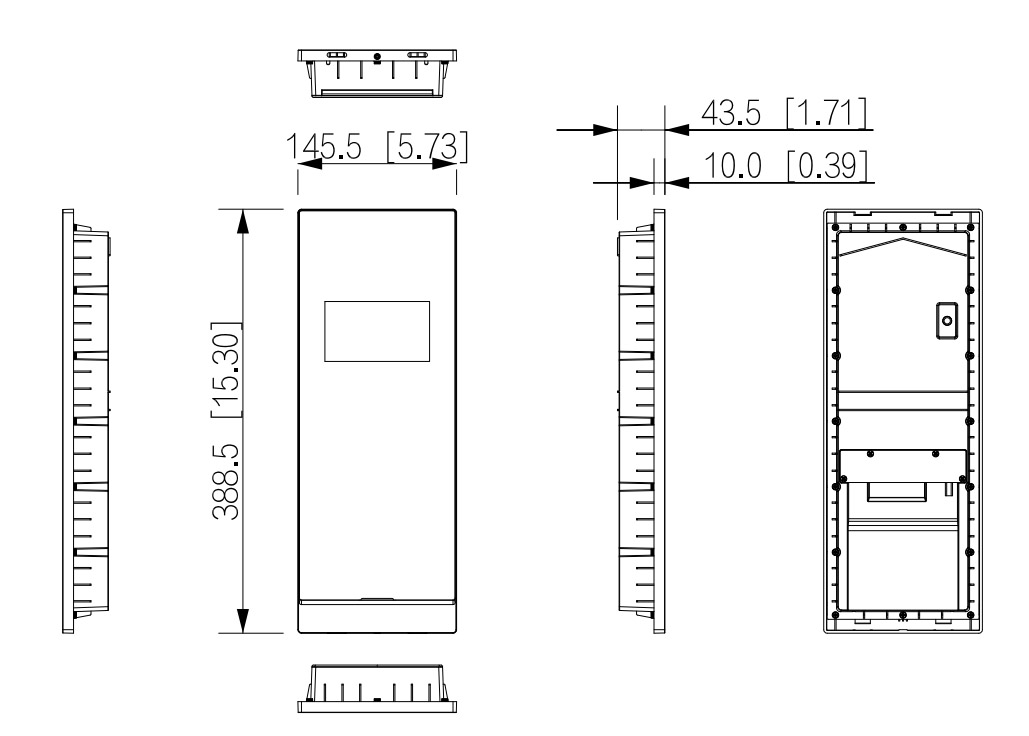

VTO6531H-S2 dimensions

Technical data sheet

Model VTO6531H-S2
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Interoperability CGI;ONVIF
Network Protocol FTP;RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP
Basic
Screen Type Non-touchscreen
Display Screen 4.3-inch display screen
Screen Resolution

800 (H) × 480 (V)

Room

1/2.8" 2MP CMOS high-definition, low illumination, dual cameras

Field of View H: 95°; V: 50°; D: 110°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.264; H.265
Video Resolution Main stream: 720P/D1/WVGA;
Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Video Frame Rate 25 fps
Video Bit Rate 1,024 kbps–8,192 kbps
Light Compensation Auto white light
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kHz, 16 bit
Function
Communication Mode Full digital
Verification Method Remote;Face Recognition;Card;Password
Auto Snapshot Yes
Information Release Receive and view text information released by the management center.
Leave Videos Yes (SD card inserted in VTH is needed)
Web Configuration Yes
Auto Registration Yes
RFID
Card Type IC card
Performance
Card Reading Distance 0 cm–5 cm (IC card)
Issue Card Locally Yes
Face Recognition Height Range 1.1 m–2.2 m (3.61 ft–7.22 ft)
Face Recognition Distance 0.3 m–2.0 m (0.98 ft–6.56 ft)
Face Recognition Accuracy 99.9%
Face Recognition Time 0.2 seconds
Casing Material PC + ABS
Capacity
Card Capacity 20,000
Face Image Capacity 20,000
Port
RS-485 1
Wiegand 1 (they can be set as an input or output port)
Alarm Input 2 channels
Alarm Output 2 channels
Power Output 1 port (12 V, 500 mA)
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel, open by default
Network Port 1 × 10Mbps/100Mbps Ethernet port
Alarm
Tamper Alarm Yes
General
Unlock Password Mode User, public and hard passwords
Appearance Color Silver
Power Supply 12 VDC, 2 A;
PoE Standard
Power Adapter Optional
Installation Flush Mount; Wall Mount
Certifications THERE IS
Accessory Power supply (optional);
Flush mount box (optional)
Product Dimensions 388.5 mm × 145.5 mm × 43.5 mm (15.30" × 5.73" × 1.71") (H × W × D)
Protection IP65 rated (Silicone sealant is required. See the quick start guide for more information).
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9842.52 ft)
Power Consumption ≤5W (standby), ≤18W (working)
Gross Weight 1.5 kg (3.31 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
