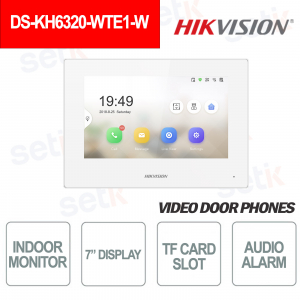

IP indoor station Hikvision DS-KH6320-WTE1 WiFi Wireless PoE Monitor Intercom 7 Inch Touch Screen LCD Display, MicroSD slot (Max 32GB), remote unlock via client software or mobile client, omnidirectional microphone and built-in speaker, capture screenshots and archive messages on tf card, 8 Inputs + 2 Alarm Output, 1 RS485, DC 12V power supply, PoE (802.3af). White color
DS-KH6320-WTE1 | INTERNAL STATION HIKVISION WIFI MONITOR - ALARM AUDIO - TOUCH SCREEN
DISPLAY: 7" LCD display 1024x600 resolution capacitive touch screen |
COMPATIBLE INDOOR MONITOR: Intercom station. This means it can communicate freely with other internal monitors |
MICROSD TF CARD SLOT: Support 1 TF Card Slot (Max 32GB SD 2.0 OR BELOW) (NOT INCLUDED) |
AUDIO: Incorporates audio and microphone |
ALARM: 8 Alarm Inputs + 2 Alarm Outputs |
PHOTOS: In surveillance or call mode, you can take screenshots (MicroSD required) |
RJ-45: Connection via self-adaptive RJ-45 (10M/100Mbps) Ethernet LAN port |
LIVE CONNECTION: |
POWER SUPPLY: Power supply DC 12V, PoE(802.3af) |
Data sheet
DS-KH6320-WTE1 | |
System | |
Memory | 128MB |
Flash | 32MB |
operating system | Embedded Linux operation system |
Display | |
Display screen | 7-inch colorful TFT-LCD |
Display Resolution | 1024x600 |
Operation method | capacitive touch screen |
Audio | |
Audio inputs | Built-in omnidirectional microphone |
Audio outputs | Built-in loudspeaker |
Standard audio compression | G.711 U |
Audio compression rate | 64Kbps |
Sound quality | Noise suppression and echo cancellation |
Network | |
Wired network | 10/100Mbps Self-Adaptive network |
Network protocol | TCP/IP、SIP、RTSP |
Network interface | 1 RJ-45 10/100 Mbps Self-Adaptive |
Alarm input | 8-ch alarm inputs |
Relay outputs | 2 |
TF card | Max to 32G, SD 2.0 or lower version |
RS-485 | 1 |
General | |
power supplies | IEEE802.3af, PoE standard 12VDC/1A |
power consumption | ≤ 6W |
Working temperatures | -10°C to 55°C (14°F to 131°F) |
Working humidity | 10% to 90% |
Dimensions (W×H×D) | 200mm × 140mm × 15.1mm (7.9" × 5.5" × 0.6") |
