IP PoE vandal-proof outdoor station DS-KB8113-IME1 , 1 physical button, camera with viewing angle horizontal: 88° vertical: 45° diagonal: 106°, 2MP resolution , IR and true WDR, H.264 video compression, omnidirectional microphone and Integrated Speakers, 2 Streams, Noise Suppression and Echo Cancellation, 10/100 Mbps Ethernet Interface, 1 Debug, 1 Alarm Input, 12VDC/PoE (802.3af) Power Supply, IP65 Protection Degree - IK09 Impact Protection Degree Assembly Wall
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

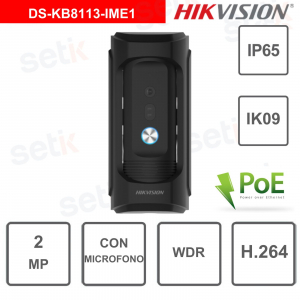

DS-KB8113-IME1 | HIKVISION VANDAL-PROOF OUTDOOR STATION - ALARM-AUDIO - 2 MEGAPIXEL HD CAMERA

CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, equipped with infrared illuminator  |
ETHERNET CONNECTION: Connection via 10/100 Mbps self-adaptive Ethernet LAN port  |
ALARM IN 1 Alarm Input  |
REMOTE CONTROL: remote opening with monitor or app  |
ANTI-VANDAL PROTECTION: IP65 , protection from dust and water jets Degree of protection Impact IK09  |
DIET: Power supply 12 VDC/PoE (IEEE 802.3af)  |
Data sheet
System Parameters
- Operation System: Embedded Linux
 - Flash: 32M
 - RAM: 256M

Video Parameters
- Camera: 2MP HD camera
 - Night vision: Low illumination IR supplement mode: 3 m
 - WDR: True WDR
 - Field of View: Horizontal: 88°, Vertical: 45°, Diagonal: 106°
 - Video Compression Standard: H.264
 - Stream: Main stream: 1080p@30fps, 720p@30fps; Sub streams: D1
 - Resolution: Main stream: 1920 × 1080p, 720p; Sub stream: 704×576
 - Motion Detection: Supported
 - Anti-flicker Frequency: 50Hz, 60Hz

Audio Parameters
- Audio Intercom: Two-way audio communication
 - Audio Input: Built-in omnidirectional microphone
 - Audio Output: Built-in loudspeaker
 - Audio Compression Standard: G.711 U
 - Audio Compression Rate: 64 Kbps
 - Audio Quality: Noise suppression and echo cancellation

Network Parameters
- Wired Network: PoE, 10/100 Mbps self-adapted
 - Network Protocol: TCP/IP, RSTP

Access Control Parameters
- Swiping Card Frequency: Not specified
 - Relays: 1

Interfaces
- Debugging Port: 1
 - Alarm Input: 1
 - Grounding: 1
 - Buttons: 1

General
- Protection Level: IP65, IK09
 - Power Supply: IEEE802.3af, PoE standard; 12 VDC
 - Power Consumption: ? 10W
 - Working Temperature: -30°C to +50°C (-22°F to 122°F)
 - Working Humidity: 10% to 90%
 - Heat Module: Supported
 - Installation: Surface Mounting

Further details
