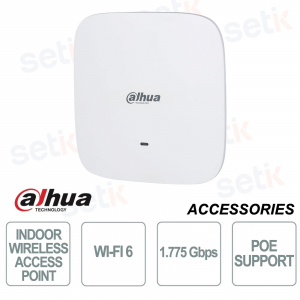

EAP6218-C | INDOOR WI-FI 6 ACCESS POINT


Dahua

Dahua EAP6218-C is a high-performance indoor Wi-Fi 6 access point, ideal for hotels, offices, shops and environments with a high density of devices. It offers a stable and fast connection up to 1.775 Gbps thanks to MU-MIMO and OFDMA technologies. Equipped with integrated high-gain antennas, it guarantees 360° coverage, remote management via DoLynk Care and simple and discreet ceiling installation.

Further details

Wi-Fi 6 (802.11ax) standard: speed up to 1.775 Gbps
MU-MIMO and OFDMA technologies: efficient management of multiple simultaneous connections
360° Coverage: Built-in high gain antennas
Dual Gigabit Ethernet ports: PoE WAN + LAN for network expansion
Flexible power supply: via PoE (802.3af) or 12V DC
Remote management with DoLynk Care: simplified configuration and monitoring
Ceiling installation: compact and discreet design for indoor environments

Technical data sheet

MODEL EAP6218-C
Basic
Device Type AP
Hardware
WAN Port 1 × 10/100/1000 Mbps Base-T (PoE In)
LAN Port 1 × 10/100/1000 Mbps Base-T
Power Supply 12V DC,1.5A;
802.3af PoE;
802.3 at PoE;
Antenna Type Omnidirectional
Built-in Antenna 2.4GHz: 2 × 4.6dBi;
5GHz: 2 × 4.0dBi
Memory DDR: 256 MB
Indicator Light SYS; WAN/PoE; LAN
Performance
Wireless Standard 2.4GHz: IEEE 802.11b/g/n/ax;
5GHz: IEEE 802.11a/n/ac/ax
Wireless Transmission Rate 2.4GHz: 574Mbps;
5GHz: 1201Mbps
Operating Frequency 2.4 GHz: 2.400 GHz–2.484 GHz;
5GHz: 5.150GHz–5.850GHz
Channel Width 2.4GHz: 20/40MHz;
5GHz: 20/40/80MHz
2.4GHz Antenna Gain 4.6dBi
5GHz Antenna Gain 4.0dBi
Max.Output Power CE EIRP:
≤20 dBm@2400-2483.5 MHz;
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14dBm@5725-5850MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz;
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30dBm@5725-5850MHz
2.4GHz Max Power Output 23dBm
5GHz Max Power Output 19dBm
Receiver Sensitivity 2.4GHz:
802.11b 11M:-85dBm;
802.11b 1M: -92dBm;
802.11g 54M:-72dBm;
802.11g 6M: -90dBm;
802.11n 20MHz MCS0: -88dBm;
802.11n 20MHz MCS7: -70dBm;
802.11n 40MHz MCS0: -86dBm;
802.11n 40MHz MCS7: -68dBm;
802.11ax 20MHz MCS0: -85dBm;
802.11ax 20MHz MCS11:-60dBm;
802.11ax 40MHz MCS0: -85dBm;
802.11ax 40MHz MCS11:-56dBm;
5GHz:
802.11a 6M: -92dBm;
802.11a 54M: -72dBm;
802.11n 20MHz MCS0: -90dBm;
802.11n 20MHz MCS7: -70dBm;
802.11n 40MHz MCS0: -88dBm;
802.11n 40MHz MCS7:-68dBm;
802.11ac 20MHz MCS0: -90dBm;
802.11ac 20MHz MCS7: -70dBm;
802.11ac 80MHz_MCS0: -85dBm;
802.11ac 80MHz_MCS9: -58dBm;
802.11ax 80MHz_MCS0: -84dBm;
802.11ax 80MHz_MCS11:-55dBm
Max. Transmission Distance 20 m (65.62 ft)
Optimal Transmission Distance 15 m (49.21 ft)
SSID Number 2.4GHz: 4;
5GHz: 4
Connected Wireless Terminals 2.4GHz: 64;
5GHz: 64
PoE PoE In: 802.3af (15W/30W)
Function
Equipment Management Web; platform; app
Network Protocol TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3
Operating Mode FIT AP
FAT AP
Gateway mode
Encryption Mode No Encryption
WPA/WPA2PSK; WPA2/WPA3PSK
Firmware Update Web update;AC remote update
Security Mechanism IP address filtering; MAC address filtering
OFDMA Yes
MU-MIMO Yes
Beamforming Yes
DHCP Gateway way mode support
NAT Gateway way mode support
QoS Yes
Software Device Management: setup wizard; network connection method; back up/restore configuration;
restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode;
cloud platform configuration
AP Management: Wi-Fi settings; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior
access configuration; scheduled Wi-Fi shutdown
Client Management: MAC ACL; user isolation; limit users that can access
General
Power Consumption Full load: 12.2W;
Idling: 5W
Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.41kg (0.90 lb)
Gross Weight 0.75kg (1.65lb)
Product Dimensions 186 mm × 186 mm × 36 mm (7.32" × 7.32" × 1.41") (L × W × H)
Packaging Dimensions 243 mm × 253 mm × 76 mm (9.57" × 9.96" × 2.99") (L × W × H)
Statics Protection Air discharge: 8 kV;
Contact discharge: 6kV
Lightning Protection Common mode: 2 kV;
Differential mode: 1kV
Installation In-ceiling mount; wall mount
Certifications THERE IS
Packing List 1 × Device;
4 × Screws;
1 × User Manual;
1 × Network Cable;
1 × Bracket
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
