HYU-1066 - The manageable PoE switch features 8 100 Mbps PoE ports and 1 Gigabit uplink port, supporting transmission distances of up to 300 meters and a total PoE power supply of up to 110W. Designed for secure and high-performance networks, it offers 3.6 Gbps switching capacity, 6KV lightning protection, intelligent alarm management, and remote upgrades. The fanless design and metal frame make it quiet, robust, and perfect for professional installations even in critical environments. Hyundai

Technical Data Sheet

Reference: HYU-1066

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

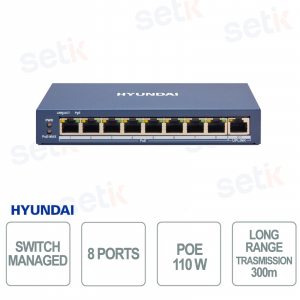

HYU-1066 | 8-PORT MANAGEABLE POE SWITCH


Dahua

The HYU-1066 8-port PoE switch is designed for maximum efficiency and stability in IP networks. With transmission ranges of up to 300 meters, a Gigabit uplink port, 3.6 Gbps switching capacity, and 110W of total PoE power, it is ideal for professional environments. The fanless design makes it quiet, while lightning protection and remote management make it perfect for critical and secure installations .

Main specifications:

- 8 PoE ports 10/100 Mbps + 1 uplink port 1000 Mbps

- Switching: 3.6 Gbps, 16K MAC, 4 MB cache

- PoE power: up to 30W per port, total 110W

- 6KV protection, fanless design, metal housing

- Remote management, logs, PoE_MAX alarms, advanced statistics

Further details

Number of doors:
It features 8 10/100 Mbps RJ45 PoE ports for power and data, plus 1 Gigabit (1000 Mbps) RJ45 uplink port for connecting to backbone switches or NVRs, ensuring high compatibility and scalability.
Long range transmission :
Each PoE port supports transmission up to 300 meters , ideal for distant IP cameras, reducing the need for repeaters or additional cabling.
Switching capacity:
With 3.6 Gbps switching capacity , a 4 MB cache and support for up to 16K MAC addresses, it smoothly handles even the heaviest network traffic, ensuring efficiency and forwarding speed (up to 2.6784 Mpps).
PoE (Power over Ethernet) :
Compliant with IEEE802.3af and 802.3at standards, it provides up to 30W per port and 110W total , perfect for PoE and PoE+ devices such as cameras, access points or IP phones. Includes lightning protection (6KV) and intelligent power management.

Technical data sheet

HYU-1066
Specifications
8 x 10/100 Mbps RJ45 PoE ports
1 x 1000Mbps RJ45 Uplink port
PoE power consumption: ≤30W per port, ≤110W total
PoE standards: IEEE802.3af (PoE), IEEE802.3at (PoE+)
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Long distance PoE transmission up to 300 meters
Forwarding mode: Store and forward
3.6 Gbps switching capacity
Packet transfer rate of 2.6784 Mpps
MAC Addresses: 16K
Internal cache: 74 Mbytes
Support for priority forwarding of red zone port data
Supports speed, flow control and switch configuration
Support remote upgrade and restore default parameters
Supports log viewing and basic network parameter configuration
Supports the display of typologies
Supports device status, PoE_MAX alarm and PoE status
Supports client management
Support real-time speed statistics on transmit/receive port, 7-day peak speed statistics on transmit/receive port
Power supply: 48V DC, 2.5A
Power consumption: 120W (maximum)
Operating temperature: 0°C ~ +40°C (32°F ~ +40°F)
Storage temperature: -40°C ~ +85°C
Relative humidity 5%~95%.
Metal housing
Lightning-proof 6KV PoE ports
Fanless design
Dimensions: 170 (W) x 27.6 (H) x 93.1 mm
Net weight: 350 g
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
