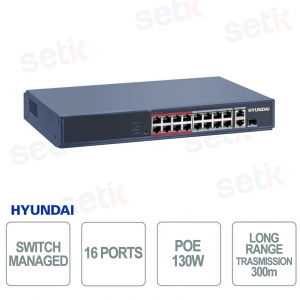

PoE Switch HYU-1071: 16 Ports, Gigabit Combo, 130W and 300m LAN

PoE Switch HYU-1071: 16 Ports, Gigabit Combo, 130W and 300m LAN

New

HYU-1071 - The PoE switch offers 16 100 Mbps PoE ports, 1 Gigabit RJ45 uplink port, and 1 Gigabit combo port, supporting data transmission up to 300 meters. It provides a total PoE power of 130W with 6KV lightning protection, 7.2 Gbps switching capacity, and intelligent network and alarm management. Featuring a fanless design, metal enclosure, and 220V power supply, it is ideal for reliable and high-performance installations. Hyundai

Technical Data Sheet

Reference: HYU-1071

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-1071 | 16-PORT MANAGEABLE POE SWITCH


Dahua

The HYU-1071 PoE switch is a 16-port manageable solution designed for professional IP systems, ideal for video surveillance and corporate networks. It supports transmission distances of up to 300 meters, PoE power supply up to 130W, and offers Gigabit uplink ports for high-speed connections. Featuring a metal enclosure, 6KV lightning protection, and a fanless design, it ensures maximum operational stability and intelligent remote management .

Main specifications:

- 16 10/100 Mbps PoE ports + 1 RJ45 uplink port + 1 1000 Mbps uplink combo port

- Long range PoE transmission up to 300 meters

- 7.2Gbps switching capacity, 16K MAC, 5.36Mpps

- PoE up to 30W per port, total maximum 130W, IEEE802.3af/at standard

- 6KV lightning protection, fanless design, log management and remote updates

- Metal housing, 220V AC power supply

Further details

Number of doors:
Equipped with 16 10/100 Mbps RJ45 PoE ports , 1 Gigabit (1000 Mbps) RJ45 uplink port and 1 Gigabit uplink combo port , it allows for extensive connection flexibility .
Long range transmission :
It supports PoE transmission up to 300 meters , useful for covering large areas such as industrial buildings, parking lots or perimeter zones without the use of repeaters.
Switching capacity:
It offers a switching capacity of 7.2 Gbps , a packet transfer rate of up to 5.36 Mpps and a 4 MB internal cache, ideal for handling heavy data traffic without performance loss.
PoE (Power over Ethernet) :
Compliant with IEEE802.3af/at standards , it provides up to 30W per port and 130W total for the entire system. Ports 1 to 8 have high priority, with overvoltage protection (6KV) and intelligent power management .

Technical data sheet

HYU-1071
Specifications
16 x 10/100 Mbps RJ45 PoE ports
1 x 1000Mbps RJ45 Uplink port
1 x 1000Mbps Combo Uplink Port
PoE consumption: ≤30W per port, ≤130W total
PoE standards: IEEE802.3af (PoE), IEEE802.3at (PoE+)
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
High priority ports 1 to 8
Long distance PoE transmission up to 300 meters
Forwarding mode: Store and forward
7.2 Gbps switching capacity
Packet transfer rate of 5.36 Mpps
MAC Addresses: 16K
Internal cache: 4 Mbytes
Support remote upgrade and restore default parameters
Allows viewing of logs, configuration of basic network parameters, and import/export of configurations and time synchronization.
Power: 100V ~ 240V AC, 50/60Hz, 2.5A
Power consumption: 150W (maximum)
Operating temperature: 0°C ~ +45°C
Storage temperature: -40°C ~ +85°C
Relative humidity 5%~95% (non-condensing)
Metal housing
Lightning-proof 6KV PoE ports
Fanless design
Dimensions: 335 (W) x 44.5 (H) x 226 mm
Net weight: 1.8 kg
Gross weight: 3 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
