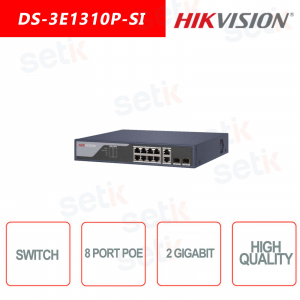

SWITCH FAST ETHERNET WITH INTELLIGENT MANAGEMENT 8 POE + 2 GIGABIT PORTS - HIKVISION
PoE switch with intelligent management - HikvisionFast Ethernet - 8 PoE RJ45 100Mbps - 2 Gigabit ports
Product details
- PoE switch with intelligent management - Hikvision
- 8 PoE RJ45 100Mbps ports
- 2 Gigabit ports
- IEEE 802.3at / af standard for PoE ports
- Network topology management, alarm push, network status monitoring
- 6KV surge protection for PoE ports
- The AF / AT camera can reach up to 300m in extended mode.
Data sheet
| MODEL | DS-3E1310P-SI |
| Network Parameters | |
| Port Number | 8 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo |
| Port Type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding Mode | Store-and-forward switching |
| Working Mode |
Standard mode (default) Extend mode |
| MAC Address Table | 16 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.1664 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply? | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin |
End-span: 1/2 (-), 3/6 (+) Mid-span: 4/5 (+), 7/8 (-) 8-pin power: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) |
| PoE Port | Port 1 to 8 |
| Max. Port Power | 30W |
| PoE Power Budget | 125 W |
| Software Function | |
| Device Maintenance | Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync |
| Port Configuration | Port rate configuration, slow control, and ports enabling |
| Long Range | Up to 300 m transmission |
| PoE Configuration | PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond. PoE enabling: Support |
| Port Rate-Limiting | Rate-limiting for ingress and egress ports |
| Storm Control | Storm control of unknown unicast, multicast and broadcast |
| Port Mirroring | Support |
| Link Aggregation | Static link aggregation supported for G1 and G2 port |
| Port Isolation | Ports in isolation group cannot communicate with each other. |
| QoS | WRR and SP scheduling and port priority |
| VLAN | 4094 VLANs |
| STP | STP and RSTP protocols |
| SNMP | SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces |
| LLDP | LLDP protocol supported for port configuration, global configuration and neighbor discovery |
| General | |
| Shell | Metal material |
| Net Weight | 1.72 kg (3.79 lb) |
| Gross Weight | 2.20 kg (4.85 lb) |
| Dimension (W × H × D) | 266 mm × 44.5 mm × 220.8 mm (10.47 "× 1.75" × 8.69 ") |
| Operating Temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage Temperature | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100 VAC ~ 240 VAC, 50/60 Hz, Max.1.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption in Idle | 5 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS / NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005, AMD1: 2009, AMD2: 2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013, EN 62368-1: 2014 + A11: 2017) |
| Chemistry | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No. 1907/2006) |
