38207.106.WH1 | Wireless Repeater with Jeweler Mount and Wings


Ajax

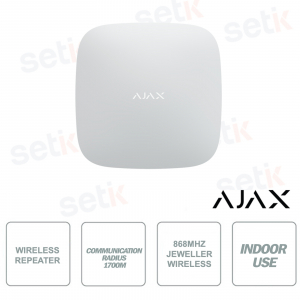

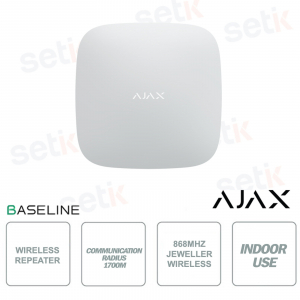

The Ajax ReX 2 Jeweller, 38207.106.WH1, white, is an advanced radio range extender designed to quickly and securely extend the coverage of Ajax systems and support photo verification. Thanks to the Jeweller and Wings protocols and four built-in antennas, it ensures stable transmission of commands, events, and images up to 1,700 m in open terrain, even in the presence of interference or through concrete and steel structures. The device can automatically switch between radio and Ethernet to maintain active communication and protects data with authentication and encryption algorithms. With a backup battery of up to 38 hours, instant installation via QR code, and remote management via the Ajax app, ReX 2 is ideal for large buildings and complex infrastructures that require security and business continuity.

Main specifications:

- Dual transmission channel: Jeweller/Wings radio + Ethernet up to 100 Mb/s

- Communication range up to 1,700 m in open field

- MotionCam photo transmission: 10–18 seconds depending on the channel used

- Ultra-fast alarm delivery in 0.3 seconds

- Anti-jamming and anti-tampering protection of the cover

- Backup autonomy up to 38 hours in case of blackout

- Automatic switching between channels in case of signal loss

- Easy installation via QR code and remote configuration via Ajax app

Further details

✅ Connection options:
ReX 2 can transmit events, alarms, and photos via two independent channels: radio and Ethernet , ensuring continuity even in the event of interference or signal loss. The device automatically switches between channels and allows for extended coverage up to 1,700 m, integrating with Ajax systems even in complex structures such as multi-story buildings or industrial warehouses.
✅ Jeweler Communication :
Jeweler is the ReX 2's primary radio protocol: it offers encrypted two-way communication, device authentication, anti-spoofing protection, and continuous polling. It enables the transmission of commands, statuses, and events with maximum stability, ensuring a range of up to 1,700 m in open fields and effective operation even through steel and concrete.
✅ Wings Communication :
The Wings protocol manages the sending of image packets for MotionCam photo verification , maintaining stable uploads even when the signal is weak. Thanks to internal algorithms for packet control and retransmission, ReX 2 ensures photo delivery even in difficult radio conditions, making it ideal for large sites or those with many structural barriers.
✅ Delivery time :
 ReX 2 guarantees extremely fast response times: 0.3 seconds for alarm transmission, up to 18 seconds for photo transmission via Wings, and up to 10 seconds via Ethernet. This speed allows for immediate event management, maintaining a highly responsive system even with dozens of connected devices.
✅ Anti-sabotage protection:
The device integrates a tamper sensor that detects opening or attempted tampering of the lid, sending immediate alerts to the system. Furthermore, thanks to communication encryption, frequency hopping, and automatic switching to the Ethernet channel in the event of jamming, ReX 2 guarantees an advanced level of protection against physical and radio attacks.
✅ Power supply:
ReX 2 is mains-powered and features a backup battery for up to 38 hours , ensuring operational continuity even during extended power outages. This autonomy makes it ideal for facilities where security must remain active without interruption, ensuring alarms and visual verification are always transmitted.

Technical data sheet

38207.106.WH1
Connection possibilities
Number of ReX 2 Jeweler connected to the hub 5
For all compatible hub models.
Number of devices connected to ReX 2 Jeweller up to 199
Depends on the hub model. Only Hub 2 Plus Jeweler and Hub 2 (4G) Jeweler are under certification by UL.
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Wings communication range Up to 1,700 m
Up to 5,600 ft
Between the range extender and a hub in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and radio signal interception.
Wings communication technology Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Package re-uploading in case of transmission errors.
  • Photo delivery check.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Radio signal range Up to 1,700 m
Up to 5,600 ft
Between the hub and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and radio signal interception.
Ethernet 1 8P8C socket (up to 100 Mbps)
An alternative or main communication channel to transmit events, alarms, and photos.
Delivery time
Alarm delivery time to the hub 0.3s
Photo delivery time to the hub 18 s
Via ReX 2 Jeweler using the Wings channel. Delivery time depends on the settings.
10 s
Via ReX 2 Jeweler using the Ethernet channel. Delivery time depends on the settings.
Recommendations The device operating voltage is 110–240 V~.
ReX 2 Jeweler is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing devices' authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Main 110–240 V~, 50/60 Hz
Up to 6 W of mains power consumption.
Backup built-in battery Li-ion 2 Аh
Calculated battery life:
  • Up to 38 hours of backup battery life. ReX 2 Jeweler average consumption is up to 41* mA when Ethernet is disabled.
  • Up to 12 hours of backup battery life. ReX 2 Jeweler average consumption is up to 161* mA when Ethernet is enabled.
  • Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity.
built-in backup battery
Rechargeable Li-ion Polymer Battery XK 953562T
3.7 V⎓, 2 Ah
Calculated battery life:
  • Up to 24 hours of backup battery life when Ethernet is disabled.
  • Up to 12 hours of backup battery life when Ethernet is enabled.
Manufacturer Dongguan Lean Power
UL listed.
Type type A
Power supply is used inside the supervised premises
Quiescent device's current consumption at nominal voltage 14.5 mA
Maximum device's current consumption at nominal voltage 95.8 mA
Low battery voltage 3.7 V⎓
Low battery recovery voltage 4.1 V⎓
End-of-life battery voltage 3.6 V⎓
Device is switched off.
Minimum energy level for a backup battery in the charged state 100%
Alternative 6 V⎓
Connected via an alternative power supply unit* 6V PSU for Hub 2/Hub 2 Plus/ReX 2 which is sold separately.
12 or 24 V⎓
Connected via an alternative power supply unit* 12–24V PSU for Hub 2/Hub 2 Plus/ReX 2 which is sold separately.
Enclosure
Color White
Dimensions 163 × 163 × 36 mm
6.42″ × 6.42″ × 1.42″
Weight 410 g
14.46 oz
Operating temperature range from −10°C to +40°C
from 14°F to 104°F
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Operating humidity up to 75%
Humidity of up to 93% is certified according to UL/ULC standards.
Casing protection class IP20
Complete set ReX 2 Jeweler
SmartBracket mounting panel
Power cable
Screw terminal block Adapter (only for INCERT compliance)
Ethernet cable
Installation kit
Quick start guide
Warranty 24 months
