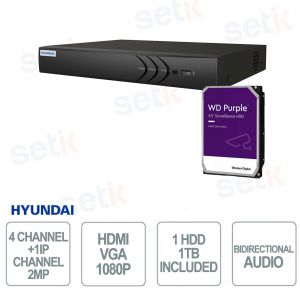

ZVR HYU-1060-1TB: 5-in-1 Video Recorder with AI and 1TB HDD included

ZVR HYU-1060-1TB: 5-in-1 Video Recorder with AI and 1TB HDD included
New

HYU-1060-1TB - The 4-channel ZVR video recorder supports 5 technologies (IP, HDCVI, HDTVI, AHD, CVBS), offering maximum compatibility and flexibility in video surveillance systems. It records in H.265+/H.265 format and guarantees simultaneous HDMI/VGA outputs, two-way audio, 4 BNC inputs and 1 IP channel . Includes a 1TB HDD , intelligent AI detection for people and vehicles, and allows remote access for up to 32 users. Ideal for professional installations with advanced connections and advanced security features. Hyundai

Technical Data Sheet

Reference: HYU-1060-1TB

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-1060-1TB | 4-CHANNEL 5-IN-1 ZVR VIDEO RECORDER - MAXIMUM RESOLUTION 2MP - 1 TB HDD INCLUDED


Dahua

The HYU-1060-1TB ZVR video recorder is an advanced 5-in-1 solution for video surveillance systems, compatible with IP, HDCVI, HDTVI, AHD, and CVBS. It supports 1080P Lite recording, AI human and vehicle detection, remote cloud access, and simultaneous HDMI/VGA output. Ideal for professional installations thanks to the included 1TB HDD and support for alarms, two-way audio, and Ethernet networking.

Main specifications:

- 5-in-1 compatibility: IP, HDCVI, HDTVI, AHD, CVBS

- 1080P Lite recording with H.265+ compression

- AI human/vehicle detection and false alarm reduction

- Simultaneous HDMI and VGA outputs + two-way audio

- 1TB HDD included – expandable up to 4TB

- Remote access up to 32 users + P2P cloud

Further details

Number of channels:
It supports 4 high-definition analog BNC channels + 1 IP channel, for a total of 5 video inputs. It allows synchronized recording and flexible management of multiple cameras .
5-in-1 Technology :
Compatible with 5 video formats: IP, HDCVI, HDTVI, AHD, and analog CVBS. This ensures maximum versatility in integrating with existing cameras of different technologies.
Resolution:
It records in 1080P Lite, 720P Lite, WD1, 4CIF, VGA, and CIF formats. The main stream goes up to 30 fps, while the secondary stream offers reduced resolutions for remote or mobile viewing.
HDMI and VGA outputs :
The HDMI and VGA video outputs operate simultaneously in Full HD (1080P), allowing connection to multiple monitors for direct, real-time image control.
Two-way audio:
It includes 1 RCA audio input and 1 RCA audio output, with support for two-way communication. Audio via coaxial cable is also available for compatible cameras.
Alarm:
It has 4 alarm inputs and 1 output, which allow integration with external sensors (motion, door opening, etc.) for active event management.
Includes 1 TB HDD :
A 1TB SATA hard drive optimized for video surveillance is included, with the possibility of expanding up to 4TB, ensuring long continuous recording autonomy .

Technical data sheet

HYU-1060-1TB
Specifications
5-in-1 ZVR with 4 analog HD channels + 1 IP channel
5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
Video format H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264
4 BNC inputs (supports coaxial):
  • HDTVI: 1080P, 720P
  • HDCVI: 1080P, 720P
  • AHD: 1080P, 720P
  • Analog CVBS: 960H, PAL/NTSC
1 IP input (4+1) 1080P
HDMI (1080P) and VGA (1080P) output simultaneously
Independent HDMI (1080P) and VGA (1080P) outputs
Audio channels: 1 RCA input / 1 RCA output
Two-way audio: via RCA audio channel 1
4 audio inputs via coaxial cable
Recording Resolution: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF
Main stream:
  • 1080P Mode: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25/30 fps)
  • 720P Mode: 720P, WD1, 4CIF, VGA, CIF (25/30 fps)
  • Standard modes: WD1, 4CIF, VGA, CIF (25/30 fps)
Substream: 4CIF (15 fps), CIF, QVGA (25/30 fps)
4-channel synchronized playback
Long distance HDTVI transmission: up to 1200 meters at 720P and 800 meters at 1080P
Internal capacity for 1 SATA HDD up to 4TB ( includes a special 1TB HDD for video surveillance )
Smart search
Deep learning-based motion detection 2.0 is enabled by default for all analog channels; it can classify people and vehicles and minimize false alarms caused by lights or objects like leaves.
4 alarm inputs / 1 alarm output
Self-adaptive RJ45 Ethernet (10/100M) network interface
Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote access for up to 32 users
P2P in the cloud, DDNS DEMES, Push and channel zero
Connections: 2 USB 2.0
Power supply: 12V DC, 1.5A
Power consumption: ≤16W (excluding HDD)
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 260 (W) x 45 (H) x 222 mm (desktop)
Weight: 800 g
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
