HYU-1068-3TB - The 16-channel PoE+ NVR integrates H.265+ encoding and supports resolutions up to 8MP, with simultaneous 4K HDMI and 1080P VGA video outputs. With 16 PoE+ ports totaling 150W, it provides direct power to IP cameras, while 2.0 motion detection, intelligent decoding, and the included 3TB HDD make it ideal for advanced video surveillance systems. Onvif compatible, remote access, and P2P cloud ready. Hyundai

Technical Data Sheet

Reference: HYU-1068-3TB

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

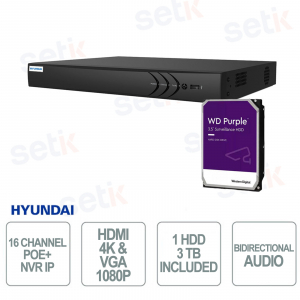

HYU-1068-3TB | 16-CHANNEL POE+ IP NVR RECORDER - MAXIMUM RESOLUTION 8MP - 1 x 3TB HDD INCLUDED


Dahua

The HYU-1068-3TB IP NVR is a 16-channel PoE+ network video recorder with support for resolutions up to 8MP and H.265+ encoding, ideal for advanced video surveillance systems. Equipped with smart features such as motion detection 2.0, two-way audio, remote access, and an included 3TB HDD, it offers high performance and plug-and-play installation with IP cameras .

Main specifications:

- 16 IP channels with 16 PoE/PoE+ ports (150W total)

- HDMI 4K + VGA 1080P simultaneous, H.265+ encoding

- Up to 8MP recording, intelligent decoding

- Motion detection 2.0 and smart video analytics

- 3TB HDD included (supports up to 2 SATA HDDs, max 8TB)

- Remote access (P2P, multi-browser, mobile app) and Onvif compatibility

Further details

Number of channels:
It supports 16 IP channels , with complete camera management via Plug&Play PoE+ connection, allowing for quick and efficient configuration .
IP Technology :
Compatible with the main network protocols (TCP/IP, RTSP, HTTPS, SNMP, IPv4/IPv6 etc.) and Onvif S/G standards , it offers remote access via smartphone, browser and P2P cloud, making management easy from any device .
Resolution:
It supports recording up to 4K/8MP with H.265+ compression, ensuring high image quality and saving space. It includes simultaneous decoding for multiple channels up to 1080P/30fps .
HDMI and VGA outputs :
It features 4K HDMI output and 1080P VGA output , both working simultaneously, for wide compatibility with multiple monitors and display systems.
Two-way audio:
Includes 1 RCA input and 1 RCA output , enabling two-way audio communication ideal for control stations, monitored entrances or intercom systems .
Motion Detection 2.0:
Based on deep learning , motion detection classifies people and vehicles, reducing false alarms caused by irrelevant movements such as leaves or lights.
Alarm:
It offers up to 4 channels of intelligent detection , with advanced video analytics such as line crossing and intrusion, improving security and reducing false alarms .
Includes 1 x 3TB HDD :
Includes a 3TB hard drive dedicated to video surveillance , with the possibility of expanding up to 8TB in total via 2 SATA slots. Perfect for long periods of continuous recording .

Technical data sheet

HYU-1068-3TB
Specifications
16 IP channels
Video Compression: H.265+, H.265, H.264+, and H.264
Simultaneous HDMI (4K) and VGA (1080P) video outputs
1 RCA input / 1 RCA audio output
Two-way audio via RCA input/output
Recording Resolution: 4K/8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Bandwidth: 160 Mbps incoming and 80 Mbps outgoing
Decoding capability: 1 channel 8MP (30 fps), 3 channels 5MP (30 fps), 6 channels 1080P (30 fps)
Up to 4 channels of motion detection 2.0
Configurable special intelligent camera functions, such as motion detection, line crossing, intrusion
16-channel synchronized playback
Supports 2 SATA HDDs up to 8TB (includes a special 3TB HDD for video surveillance)
Intelligent search/intelligent playback to improve playback efficiency
Self-adaptive Gigabit RJ45 network port (10/100/1000Mbps)
Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
16 self-adaptive PoE/PoE+ (10/100Mbps) ports with a total power of 150W
Compatible with Onvif (S/G), SDK and ISAPI
32 remote connections
Remote access via iPhone/iPad and Android devices
Multi-browser support: Chrome, Firefox, Safari, IE
P2P in the cloud, DDNS DEMES, Push and channel zero
Plug&Play connection with NEXTGEN IP cameras
Communication ports: 2 USB 2.0 ports
Power supply: 100V ~ 240V AC (≤15W, excluding disks and PoE)
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 385 (W) 52 (H) x 315 mm
Weight: ≤2.6kg
Tabletop installation
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
