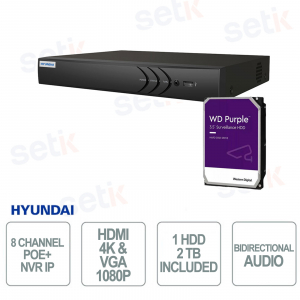

NVR HYU-1070-2TB: 8 Channel PoE+, HDMI 4K and 2TB HDD Included

NVR HYU-1070-2TB: 8 Channel PoE+, HDMI 4K and 2TB HDD Included
New

HYU-1070-2TB - The NVR offers 8 PoE+ channels and records up to 8MP with H.265+ compression, ensuring excellent video quality and saving space. It includes simultaneous 4K HDMI and 1080P VGA outputs, RCA two-way audio, and 4-channel 2.0 motion detection with human/vehicle classification. Supplied with a 3TB HDD, it supports up to 8TB total and is ideal for professional IP installations and secure remote access. Hyundai

Technical Data Sheet

Reference: HYU-1070-2TB

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-1070-2TB | 8-CHANNEL POE+ IP NVR RECORDER - MAXIMUM RESOLUTION 8MP - 1 x 2TB HDD INCLUDED


Dahua

The HYU-1070-2TB is an 8-channel HYUNDAI IP NVR with PoE+, designed for high-definition video surveillance systems. It supports resolutions up to 8MP with H.265+ encoding for excellent video quality and optimized storage space. It includes 4K HDMI and 1080P VGA outputs, two-way audio, 4-channel 2.0 motion detection, and an included 2TB HDD expandable up to 8TB .

Main specifications:

- 8 IP channels with PoE+ (up to 75W total)

- Simultaneous HDMI 4K + VGA 1080P

- Two-way RCA audio (1 input / 1 output)

- Motion detection 2.0 with people/vehicle analysis

- 2TB HDD included, expandable up to 8TB

- H.265+/H.265/H.264+/H.264 compression – up to 8MP

Further details

Number of channels:
It supports 8 IP camera inputs , with synchronized playback on all channels, providing complete control of the entire system.
IP Technology :
Compatible with major network protocols (TCP/IP, DHCP, RTSP, HTTPS, SNMP, etc.) and up to 32 simultaneous remote connections , for seamless integration into any Ethernet network.
Resolution:
Supports up to 8MP recording and simultaneous decoding of 6 channels 1080P, 3 channels 4MP or 1 channel 8MP at 30 fps, with H.265+/H.265/H.264+/H.264 compression to save space and bandwidth.
HDMI and VGA outputs :
Equipped with simultaneous 4K HDMI output and 1080P VGA output , it ensures ultra-high definition images on multiple monitors simultaneously .
Two-way audio:
Includes 1 RCA input and 1 RCA output , enabling two-way audio communication between the operator and the monitored site, useful for active video surveillance or intercom .
Motion Detection 2.0:
It features intelligent analysis on 4 channels , with classification of people and vehicles, improving alarm accuracy and reducing false positives .
2TB HDD included :
It comes with a 2TB HDD dedicated to video surveillance , expandable up to 8TB via SATA slot, for high recording autonomy .

Technical data sheet

HYU-1070-2TB
Specifications
8 IP camera inputs
Compression format H.265+, H.265, H.264+, H.264+, H.264
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 80 Mbps
Simultaneous HDMI (4K) and VGA (1080P) video outputs
1 RCA input / 1 RCA audio output
Two-way audio via RCA input/output
Recording Resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Decoding capability: 6 channels 1080P (30 fps), 3 channels 4MP (30 fps), 1 channel 8MP (30 fps)
Up to 4 channels of motion detection 2.0
Configurable special intelligent camera functions, such as motion detection, line crossing, intrusion
8-channel synchronized playback
Supports 1 SATA HDD up to 8TB (includes a special 2TB HDD for video surveillance)
4-channel motion detection 2.0 with people and vehicle classification
Smart search
Self-adaptive Ethernet RJ45 (10/100M) network interface
Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
16 self-adaptive PoE/PoE+ (10/100Mbps) ports with a total power of 150W
Up to 32 remote connections
Connections: 2 USB 2.0
8 PoE ports (10/100Mbps, 802.3af/at)
75W PoE output
Power supply: 48V DC, 1.88A
Power consumption: ≤10W (without HDD / without PoE)
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 320 (W) x 48 (H) x 240 mm
Weight: ≤1 kg
Tabletop installation
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
