IMOU N118W 18 Channel Wi-Fi NVR with Bidirectional Audio, Wi-Fi 6 and 4K H.265 Recording

IMOU N118W 18 Channel Wi-Fi NVR with Bidirectional Audio, Wi-Fi 6 and 4K H.265 Recording

 
HDD space calculation
NEW

NVR-N118W-8A0E-P-IMOU - The IMOU N118W Wi-Fi network video recorder supports up to 18 channels for advanced video surveillance management. Thanks to dual-band Wi-Fi 6 with 4 high-power antennas, it ensures stable and fast coverage in any environment. It offers resolution up to 4K H.265 for ultra-clear and smooth images, with low bandwidth consumption. With a built-in microphone and speaker, it allows two-way audio without additional devices, ideal for remote control. The HDMI/VGA and USB interfaces ensure wide compatibility, while storage up to 16TB guarantees safe and long-term storage. Compatibility with Onvif and the IMOU app complete the package, for simple and smart control from anywhere. Imou

Technical Data Sheet

⚠️ ATTENTION – IMPORTANT BEFORE PURCHASE

The new IMOU N110W / N118W series NVRs use an automatic and closed Wi-Fi pairing system, designed to connect only new or reset IMOU cameras.

The Wi-Fi hotspot generated by the NVR does not allow manual connections and does not have a password that can be used by the user.

Therefore:

  • It is not possible to connect IMOU cameras already configured in your home network to the NVR without first performing a complete reset of the cameras.
  • It is not possible to migrate an existing system (cameras already active on the IMOU app) to this NVR without starting from scratch.
  • If you replace the NVR , all cameras must be reset to allow automatic pairing.
  • The behavior is different from the previous model, where the access point password was visible and modifiable.

Before purchasing, please carefully check whether this operating mode is compatible with your system.

An official firmware update addressing the limitation is planned, but not yet available.

Reference: NVR-N118W-8A0E-P-IMOU

Brand: IMOU

EAN: 6937479640120

Disponibilità: 138

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou uses smart and easy-to-use technologies designed for home and small and medium-sized business security. All systems are compatible with Alexa and Google Home, if you want to monitor what matters for you the most, all you have to do is ask the device to show you the images.

[short_description] =>


Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers, as highlighted by the official claim: 'Enjoy Smart Life'.

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2025-07-23 14:59:46 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => [meta_description] => Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR-N118W-8A0E-P-IMOU | NVR 18 CHANNELS DUAL-BAND WI-FI 6 8MP



The IMOU N118W Wi-Fi network video recorder offers advanced security management with support for up to 18 channels, ideal for professional and home systems . Thanks to dual-band Wi-Fi 6 with 4 high-power antennas, it ensures a stable and fast connection in any environment. With resolution up to 4K H.265, clear and smooth images are guaranteed while reducing bandwidth use. The device integrates a microphone and speaker for two-way audio, HDMI/VGA outputs, USB ports, Onvif compatibility and storage up to 16TB, offering maximum flexibility and reliability.

Main specifications:

- Supports up to 18 channels with Ethernet/Wi-Fi connection

- Maximum resolution 4K H.265 for high quality images

- Dual-band Wi-Fi 6 (2.4/5GHz) with 4 high-power antennas

- Built-in microphone and speaker for two-way audio

- HDMI, VGA and USB interfaces for wide compatibility

- Storage up to 16TB with USB backup support

Further details


✅ Number of Channels:
It supports up to 18 channels , allowing complete management of multiple IP cameras connected both via wired and wireless mode.
✅ Maximum Resolution:
Compatible with H.265/H.264 codec, it offers video quality up to 4K UHD , minimizing bandwidth and storage space consumption.

✅ Network:
It includes a 10/100 Mbps RJ-45 Ethernet port and supports wired and wireless networks, ensuring stability and reliability in data transmission.

✅ Dual-Band:
With Wi-Fi 6 (2.4GHz/5GHz) technology and 4 high-power antennas, it ensures strong signal, extended coverage and fast connections.
✅ Microphone and Speaker:
Integrated to enable real-time two-way audio , ideal for intercom and remote control without external devices.
✅ Interfaces:
Equipped with HDMI and VGA outputs , 2 USB ports , microphone input, speaker output and reset button, for complete compatibility with monitors and peripherals.
✅ Storage:
It supports up to 16TB SATA HDD and USB Flash Drive backup, ensuring long-term data preservation and safety.

✅ Secure Storage with Imou Cloud:
With Imou Cloud , all your videos are protected and accessible online . You can choose between recording to the cloud or to a microSD card (up to 256GB), for flexible recording management.
Buy your 7-day IMOU PROTECT BASIC subscription or your 30-day IMOU PROTECT PRO subscription

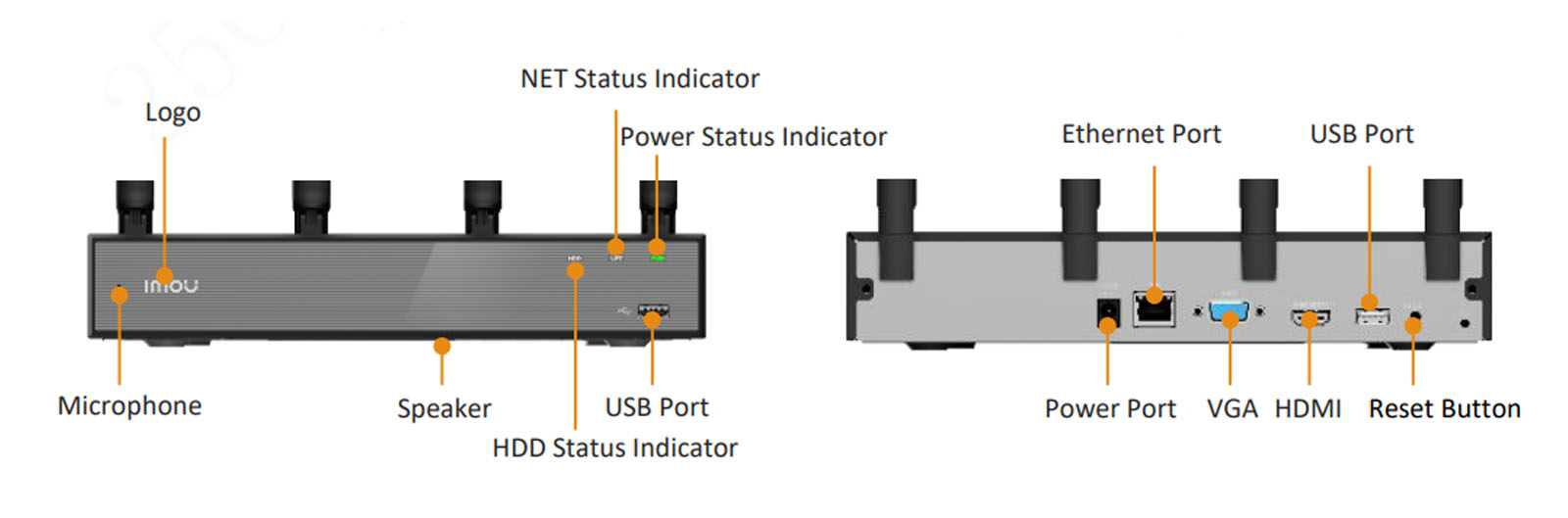

NVR-N110W-8A0E-P-IMOU dimensions

Technical data sheet

NVR-N118W-8A0E-P-IMOU
Video & Audio
Access Channel 18 channels
Network Bandwidth 90Mbps
Playback Decoding 4-channel 8MP@15fps
4-ch 5MP@30fps
Video Compression H.265/H.264
Audio Compression AAC
Backup File Format MP4
Live Display 1,4,8,9,10
Network
Wired Network 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Wi-Fi Network IEEE802.11b/g/n/ax, Wi-Fi 6.2.4GHz＆5GHz
Compatible APP IMOU APP (IOS＆Android)
Third Party Agreement Onvif
External Interface
Video Output 1*VGA＆1*HDMI
Audio Input 1*Microphone(Built-in)
Audio Output 1*Speaker(Built-in)
USB Interface 2*USB
Reset Button Yes
Network Interface 1 RJ–45 port (10/100 Mbps)
Special Features
IPC Connection Automatically connect to IMOU cameras
Smart Detection Motion / Person / Vehicle
Remote Upgrade Yes
Sound Channel Two-Way Audio
Storage
Hard Drive Capacity 1 SATA port, up to 16 TB
Backup Media USB Flash Drive
External Interface
Power Supply DC 12V 2A
Power Consumption ＜9W (with HDD Average Power)
＜19W (with HDD Peak Power)
Working Temperature -10℃~+45℃
Working Humidity Less Than 95%RH
Dimensions (L×W×H) 241.5mm×260mm×60.2mm (Folded antenna)
Bare Weight 890g (Without HDD)
Certification THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
