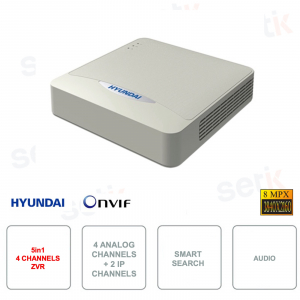

ZVR IP ONVIF 4 channels - 5in1 - Up to 8MP 4K Ultra HD - 2 IP channels and 4 analog channels - Audio
Hyundai HYU-1040 ZVR - ONVIF IP ZVR - 4 analogue channels + 2 IP channels - Recording resolution up to 8MP (4K Ultra HD) - 5 technologies in 1: IP+HDCVI+HDTVI+AHD+ANALOG - Video H.265 Pro+ Smart Codec, Dual Stream - 1 HDMI (1080p out), 1 VGA (1080p out), 2USB 2.0, 1 RCA audio input + 1 output, 4 audio inputs via coaxial, RJ45 100M - 4-channel synchronous playback - 32 users per access remotely - 1 SATA 3.5" Hard Disk up to 6TB (not included) - P2P in cloud - DDNS DEMES - Hyundai Security

ZVR IP ONVIF RECORDER - 4 CHANNELS - 2 IP CHANNELS + 4 ANALOG CHANNELS - UP TO 8MP - 5IN1 IP+HDCVI+HDTVI+AHD+ANALOG - AUDIO - P2P - HYUNDAI SECURITY - HYU-1040

4 Channels ZVR IP ONVIF Hyundai Security - HYU-1040
5in1 - 5 technologies in 1: IP+HDCVI+HDTVI+AHD+ANALOG - Resolution up to 8MP ( 4K ULTRA HD )
Compression H.265 Pro+ Smart Codec - Dual Video Stream - HDMI Interface (1080p) - VGA (1080p) - 2xUSB 2.0 - 1xRJ45 100M - Smart Search - Support HDD up to 6TB (not included) - Audio 1in/1out RCA + 4 inputs via coaxial - Cloud P2P - DDNS DEMES - Remote access for up to 32 users - Up to 1,200m (720p) and up to 800m (1080p): long distance transmissions supported - 12V DC power supply - Quality product.
Product details

![]() |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
| 5 Technologies in 1! This DVR supports 5 different technologies (IP+HDCVI+HDTVI+AHD+ANALOG) |
|
![]() |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
![]() |
Recording resolution up to 8MP! |
|
ZVR Hyundai HYU-1040 4 Channel Video Recorder 2 IP channels and 4 analog channels. |
|
|
This DVR allows multiple network monitoring: Web viewer, CMS (HYUSS) Remote access up to 32 active users |
|
|
This function allows you to obtain various motion videos in a short time by simply drawing an area during playback. Very useful in case he should understand an emergency
|
|
![]()
|
|
|
Supports 1x 3.5" SATA Audio / Video AV-GP SATA Hard Drive, up to 6TB HARD DISK NOT INCLUDED
|
|
![]() |
This DVR features 1x HDMI port (up to 1080P) as well as VGA (with 1080p video out) |
|
This DVR features 1 RCA Audio input + 1 RCA output 4 coaxial inputs. |
|
![]() |
This DVR features 2x USB 2.0 Ports |
![]() |
This DVR has 1 RJ45 port (10/100) |
![]() |
This recorder features multilingual menus |
![]() |
This product is covered by the manufacturer's 3-year warranty. |
Data sheet
| HYU-1040 |
|
ZVR 5 in 1 with 4 HD analogue channels + 2 IP channels |
|
5 technologies: IP cameras, HDCVI, HDTVI, AHD and Analogue CVBS |
|
Connectable to H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264 IP cameras |
|
4 BNC inputs (supports coax): |
|
HDTVI: 8MP, 5MP, 4MP, 3MP, 1080P, 720P |
|
HDCVI: 5MP, 4MP, 1080P, 720P |
|
AHD: 5MP, 4MP, 4MP, 1080P, 720P |
|
Analogue CVBS: 960H, PAL/NTSC |
|
2 IP inputs up to 8MP (4+2) with Enhanced IP mode off |
|
4 IP inputs up to 4MP (4+4) with Enhanced IP mode on |
|
Independent HDMI (1080P) and VGA (1080P) outputs |
|
Audio channels: 1 RCA input / 1 RCA output |
|
Bi-directional audio: via RCA audio channel 1 |
|
4 audio inputs via coaxial cable |
|
Recording resolution: 8MP, 8MP Lite, 5MP, 3K, 4MP, 4MP, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF |
|
Stream 1 with 8MP Lite mode off: |
|
8MP (8 fps, channel 1 only), 5MP (12 fps), 3K (12 fps), 4MP (15 fps), 3MP (18 fps), 1080P/720P/WD1/4CIF/VGA/CIF (25/30 fps ). |
|
Stream 1 with 8MP Lite mode activated: |
|
8MP Lite, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF (15fps) |
|
Stream 2: WD1, 4CIF, CIF (25/30fps) |
|
96Mbps total bandwidth |
|
32 Mbps incoming bandwidth with enhanced IP mode |
|
4-channel synchronized playback |
|
Long distance HDTVI transmission: up to 1200 meters at 720P and 800 meters at 1080P |
|
Internal capacity for 1 SATA HDD up to 6TB (sold separately) |
|
Intelligent search |
|
Auto-adaptive Ethernet RJ45 (10/100M) network interface |
|
Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Remote access for up to 32 users |
|
Onvif compatible |
|
P2P in the cloud, DDNS DEMES, Push and zero channel |
|
Connections: 2 USB 2.0 |
|
Power supply: 12V DC, 1.5A |
|
Power consumption: ≤15W |
|
Operating temperatures: -10°C ~ +55°C |
|
Relative humidity: 10~90%. |
|
Dimensions: 200 (W) x 45 (H) x 200 mm (desktop) |
