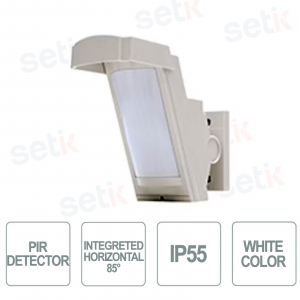

copy of Outdoor wired double IR detector - IP55 - Optex

copy of Outdoor wired double IR detector - IP55 - Optex

 
-32%

Wired External Double IR Detector. 12m per side with anti-masking, Completely independent detection setting for each side, Two PIRs for each side, Configurable sensitivity and alarm output, Variable detection speed from 0.3 to 2.0 m/s, IP55 protection - BXS-STW

Reference: HX-40

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DOUBLE IR WIRED EXTERNAL DETECTOR - 12M COVERAGE ON EACH SIDE

Rivelatore PIR a doppio fascio a barriera

Product details

  • Double IR detector
  • Type: Outdoor wired double IR detector
  • Detection speed from 0.3 to 2.0 m/s
  • Dimensions: 200mm x 93mm x 53mm
  • 2 sensitivity levels


Data sheet

Detection method Passive infrared
Coverage 24 m; 12 m on each side, 4 zones; 2 zones on each side, 180° narrow beam
PIR coverage limit Selectable on 5 levels: m 2.50, 3.50, 6.00, 8.50, 12.00
Detection angle from the wall From the wall: 0° inclined forwards Away from the wall: 3° inclined forwards selectable
Detectable speed from 0.3 to 2.0 m/s
Sensitivity Normal: 2.0°C @ 0.6 m/s
High extreme: 1.0°C @ 0.6 m/s
individually selectable for each side
Supply voltage from 9.5 to 18Vdc.
Current absorption
(except during the walk test)		 31mA max. @ 12Vdc
Alarm period 2.0 ± 1 second
Warm-up period 60 seconds or less (LED flashes)
Alarm output (Right) 100mA 28Vdc. max. [right individual or general], [NA or NC] selectable
Alarm output (Left) 100mA 28Vdc. max. [Individual left or general], [NA or NC] selectable
Fault output -
Tamper output NC 100mA 28Vdc. max. It opens when the front cover, main unit or base is removed
LED indicators red LED; 1. Heating, 2. Alarm (DIP switch ON or motion test)
Operating temperature from -30°C to +60°C
Ambient humidity 95% max.
Degree of protection IP 55
Fixing Wall-mounted, pole-mounted (outdoors, indoors)
Fixing height from m 0.80 to 1.20
G weight 430
Accessories Screw (4x20mm) x 2
