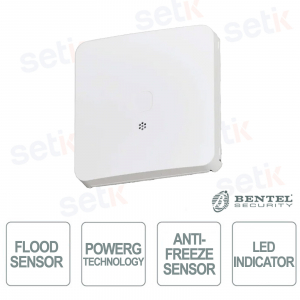

PGP8986 - is a PowerG+ flood sensor with anti-freeze sensor designed to detect water leaks and low-temperature conditions early, protecting homes and businesses from water and frost damage. Thanks to PowerG+ technology , it ensures secure and reliable wireless communications, while support for an external probe and sensing cable expands monitoring possibilities. Complete with a built-in audible alarm , LED indicators , remote firmware updates and an IP65 rating, it offers high performance even in harsh environments. Bentel
Technical Data Sheet
PGP8986 | ANTI-FLOOD SENSORS

The PGP8986 is a PowerG+ flood sensor with freeze protection designed to quickly detect water leaks and low-temperature conditions, protecting homes, offices and utility rooms from water and freeze damage. Featuring PowerG+ technology , it offers reliable and secure wireless communications, with support for external probe and sensing cable for extended coverage. Complete with a built-in audible alarm , LED indicators , remote firmware updates , an IP65 rating and up to 5 years of battery life, it is an ideal solution for professional security systems.
Main specifications:
- Type: PowerG+ flood sensor with antifreeze
- Detection: Water leaks and low temperatures
- Technology: Bidirectional PowerG+
- Expansion: External probe and sensing cable
- Alarm: Built-in acoustic siren
- Indicators: Status LED
- Protection: IP65
- Battery: Up to 5 years of battery life
- Updates: Remote Firmware
- Applications: Flood and frost protection
Main features
✅ Type:
The PGP8986 is a PowerG+ flood sensor with anti-freeze protection designed to provide early detection of water and critical temperatures. It is ideal for protecting homes, offices, utility rooms, basements, and sensitive areas, helping to prevent damage caused by water leaks and freezing temperatures.
✅ Detection:
The device can detect water leaks and warn of low temperatures thanks to its integrated anti-freeze sensor. This dual function allows for rapid intervention before damage occurs to pipes, systems, and structures.
✅ Technology :
Based on PowerG+ technology , the sensor ensures two-way wireless communications , high transmission performance, operational reliability and support for remote firmware updates , keeping the device always up to date and secure.
✅ Expansion :
The support for an external probe and sensing cable allows you to expand the monitoring area, making the sensor suitable for installations where hard-to-reach points or large surfaces need to be monitored. Accessories are available separately.
✅ Alarm :
If water is detected, the sensor activates an integrated acoustic alarm , providing an immediate warning to occupants and enabling rapid intervention to limit damage caused by infiltrations or flooding.
✅ Indicators:
The integrated LED indicators allow you to easily view the device status and radio signal quality , making both installation and system verification and maintenance easier.
Technical data sheet
| PGP8986 | |
| TECHNICAL CHARACTERISTICS | |
| Frequency band | 912 to 919 MHz, 868 to 869 MHz |
| Communication protocol | PowerG + |
| Power supply | Drums |
| Battery Type | 2 3V CR2450 lithium batteries Panasonic, Duracell and GP |
| Battery life | 5 years of typical use at 25°C (77°F) ambient temperature |
| Low battery threshold | 4.3V at room temperature 25°C (77°F) |
| Rated operating voltage | 6V |
| Power consumption | Maximum current: 100 mA Quiescent current: 7.5 uA |
| Degree of protection (IP) | IP65 |
| Antifreeze alarm temperature (ambient) | 5°C (41°F) |
| Operating temperature | -10°C (14°F) to 55°C (131°F) |
| Storage temperature | From -20°C (-4°F) to 70°C (158°F |
| Relative humidity | Up to 93% non-condensing |
| Dimensions (LxWxD) | 2.6 in. (L) x 2.6 in. (W) x 0.43 in. (H) 65 mm (L) x 65 mm (W) x 11 mm (H) |
| Weight (battery included) | 48 g (1.7 oz) |
| Color | White |
| Certification | FCC (912 to 919 MHz): 47CFR part 15.247 ISED Canada (912 to 919 MHz): RSS-247 UL: UL4200A |
