AMC Elettronica Soutdoor 800 Volumetric Sensor via low consumption outdoor radio . Double digital PIR, coverage up to 15 meters (90°), ideal for various types of installation thanks to the interchangeable lenses. Double pulse function, anti-tear / anti-opening tamper with micro switch, LED, buzzer. pet immune - Southern800
FIND INSTALLER
€316.29
€372.10 -15%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

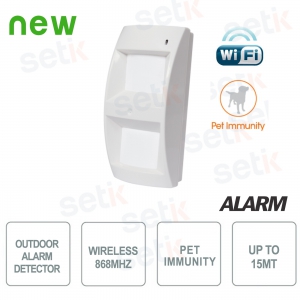

OUTDOOR RADIO SENSOR 868MHZ BIDIRECTIONAL DOUBLE DIGITAL PIR - AMC
DESCRIPTION: This device is bidirectional, equipped with Double digital PIR , coverage from 3 to 15 meters and Immunity to animals (Pet Immune) Ideal product for various types of installation thanks to the interchangeable lenses Extremely reliable product. |
Product details
- Outdoor Alarm Sensor - AMC
- Wireless via 868Mhz radio
- Double Digital PIR (2 digital PIRs, with AND operation with a time of 4 seconds)
- Low consumption 12uA
- Range adjustment ( 3 - 15 m ) via radio
- Suitable for various types of installations thanks to the interchangeable lenses
- Signaling buzzer activated via radio
- Signaling LED activated via radio
- Tear-proof and anti-opening tamper with micro switch
- Test function can be activated via radio and locally
- PET immune: Immunity to pets
- Double pulse function activated via radio
- Optional joint for wall mounting ( SN3 )
- Quality product
Data sheet
| SOUTDOOR/L | SOUTDOOR/BC | SOUTDOOR/T | SOUTDOOR 800 | |
| CAPACITY | 6 - 12 m | 3 - 15 m | 3 - 15 m | 15m |
| HORIZONTAL COVERAGE | 90° | 90° | 90° | 90° |
| PYROELECTRIC | digital pyroelectrics | digital pyroelectrics | 2 items | digital pyroelectrics |
| LENS 1 | Fresnel (22 patterns on 3 levels) | Fresnel (22 patterns on 3 levels) | Fresnel (22 patterns on 3 levels) | Fresnel (22 Patterns on 3 levels) |
| LENS 2 | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) |
| OPTIONAL LENS | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) |
| DIET | 10.5 - 15V | 3 - 9V | 9 - 15V | 1/2AA 3.6V battery |
| CONSUMPTION (ALARM/STAND-BY) | 35mA / 20mA @ 13.8V | 5 mA / 9 uA @ 9 V | 52 mA / 46 mA @ 13.8 V | 12uA min. - 26mA max |
| PET IMMUNITY | YES | YES | YES | YES |
| COVER | ABS | ABS | ABS | ABS |
| DEGREE OF PROTECTION | IP 65 | IP 65 | IP 65 | IP 44 |
| OPERATING TEMPERATURE | from -30°C to +70°C | from -30°C to +70°C | from -30°C to +70°C | from -30°C to +60°C |
| DIMENSIONS | 185 x 85 x 66mm | 185 x 85 x 66mm | 185 x 85 x 66mm | 185 x 85 x 70 mm |
