IR1 - EN 50131-2-2 / GRADE 2 - digital PIR with EOL resistors
Digital PIR sensor EOL resistors, PET IMMUNITY, Maximum range of 15 meters, BLUE LEDs, EOL resistors, Fresnel lenses LODIFF POLY IR 4 material, anti-creep device, tamper / anti-opening device, pulse counter, joint possibility. White color
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?
IR1 | AMC ELECTRONICS

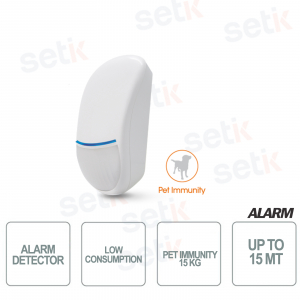

The IR sensor 1 is one of the high performance sensors of AMC Elettronica, of the PRO line.
This device is a digital PIR , it is Pet Immune, it has a range of 15MT with opening up to 100 ° . It features EOL resistors, anti-tear / anti-opening / tamper protection, pulse counter and status LED. Peculiarity is the presence of Fresnel lenses LODIFF® POLY IR® material which guarantee detection stability. Totally digital technology. Dimensions 114 x 63 x 40mm


- Digital PIR Sensor - AMC
- range of 15 meters
- 100 ° horizontal coverage
- Fresnel lenses LODIFF POLY IR material 4
- Blue led
- Duration of alarm 2 "
- Walk Test LED
- Solid state relay
- EOL resistors
- Anti-crawl device
- Tamper / Anti-opening device
- Anti-tear device
- Anti-mask device
- Pulse counter
- RFI protection
- Thermal Compensation
- Totally Digital
- Possibility of joint
- power supply 13.8Vdc
- ABS cover
- Pet Immunity
- Operating temperature from -10 ° C to + 40 ° C
- Dimensions 114 x 63 x 40mm
| Model | IR1 |
| Range | 15 mt |
| Angle | 100 ° |
| Lens | lens Fresnel LODIFF® material POLY IR®4 |
| LED | blue |
| Alarm Time | 2" |
| Self Test | - |
| Walk test's led | yes |
| Microwave frequency | - |
| Solid state relay | yes |
| Internal EOL resistors | yes |
| Creep Zone | yes |
| Anti-opening tamper | yes |
| Back tamper | Yes |
| Anti-masking device | - |
| Pulse counter | yes |
| RFI Protection | 30 V / m |
| Temperature compensation | yes |
| Full digital | yes |
| Bracket available | yes |
| Power Supply | 13.8 Vdc |
| Housing | ABS |
| Pet immunity | yes |
| Operating temperature | from -10 ° C to + 40 ° C |
| Dimensions | 114 x 63 x 40 mm |

HIGH PERFORMANCE SENSORS - AMC:
| Model | IR1 | DT1 | DT1AM |
| Range | 15 mt | 15 mt | 15 mt |
| Angle | 100 ° | 100 ° | 100 ° |
| Lens | lens Fresnel LODIFF® material POLY IR®4 | lens Fresnel LODIFF® material POLY IR®4 | lens Fresnel LODIFF® material POLY IR®4 |
| LED | blue | green, yellow, blue | green, yellow, blue |
| Alarm Time | 2" | 2" | 2" |
| Self Test | - | - | yes |
| Walk test's led | yes | yes | yes |
| Microwave frequency | - | 9.3 - 9.9 - 10.5 Ghz | 9.3 - 9.9 - 10.5 Ghz |
| Solid state relay | yes | yes | yes |
| Internal EOL resistors | yes | yes | yes |
| Creep Zone | yes | yes | yes |
| Anti-opening tamper | yes | yes | yes |
| Back tamper | Yes | Yes | Yes |
| Anti-masking device | - | - | yes |
| Pulse counter | yes | yes | yes |
| RFI Protection | 30 V / m | 30 V / m | 30 V / m |
| Temperature compensation | yes | yes | yes |
| Full digital | yes | yes | yes |
| Bracket available | yes | yes | yes |
| Power Supply | 13.8 Vdc | 13.8 Vdc | 13.8 Vdc |
| Housing | ABS | ABS | ABS |
| Pet immunity | yes | yes | yes |
| Operating temperature | from -10 ° C to + 40 ° C | from -10 ° C to + 40 ° C | from -10 ° C to + 40 ° C |
| Dimensions | 114 x 63 x 40 mm | 114 x 63 x 40 mm | 114 x 63 x 40 mm |
