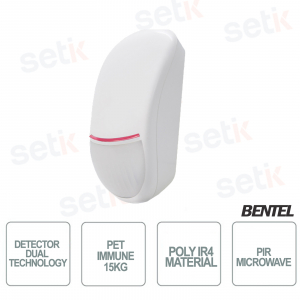

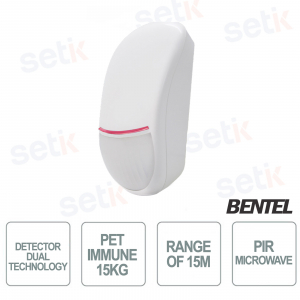

Motion Detector - Dual PIR and Microwave Technology - Pet Immune 15kg - Bentel

Product details
- Fully digital PIR
- LODIFF® optical technology and POLY IR® material create a perfect combination of maximum quality and efficiency
- Compatible with any wired control panel
- Integrated end-of-line resistors
- White light protection and high RFI immunity
- Double tamper-evident protection (anti-opening/anti-tear)
- Dual technology (PIR + microwave)
- Mounting (Direct wall mounting or with BLC-L2ST bracket)
- Dimensions (wxhxd): 114 x 63 x 40 mm

Technical data sheet
SCOPE | 15 m |
CORNER | 100° |
LENS | Fresnel Lens LODIFF® POLY IR®4 material |
LED | green, yellow, red |
ALARM TIME | 2 s |
SELF TEST | - |
LED COVERAGE TEST | YES |
MICROWAVE FREQUENCY | 10.525 GHz |
MAXIMUM RADIO FREQUENCY POWER | +14 dBm |
SOLID STATE RELAY | YES |
END OF LINE RESISTORS | YES |
ANTI-CRAWLING DEVICE | YES |
ANTI-OPENING DEVICE | YES |
ANTI-TEAR DEVICE | YES |
ANTI-MASKING | LC-203/BLC-203 |
DOUBLE PULSE | YES |
RFI PROTECTION | 30 V/m |
THERMAL COMPENSATION | YES |
TOTALLY DIGITAL | YES |
POSSIBILITY OF JOINT | YES |
DIET | 9-15 VDC / 56 mA |
MATERIAL | ABS |
PET IMMUNITY | YES |
OPERATING TEMPERATURE | from -10°C to +40°C |
DIMENSIONS | 114 x 63 x 40 mm |
Further details
WHO IS BENTEL?
Bentel Security is a traditional point of reference in the SECURITY sector, where it is the leading brand for burglar and fire alarm systems.
Bentel Security is one of Italy's largest security and alarm systems companies. Founded in 1983 in Grottammare (AP) as an all-Italian project, Bentel Security was acquired by the Canadian DSC group in 1998, and in 2001, it became part of the American multinational TYCO, the world's largest systems integrator and a global leader in the security sector.
The vast range of products they design offers quality, reliability, high performance, and an all-Italian guarantee.
