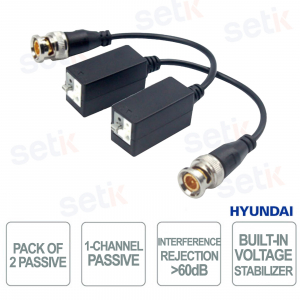

Hyundai HDCVI HDTVI AHD Passive Video Transmitters over Twisted Pair, 400m, No Power, Anti-Interference
HYU-155 - The pack consisting of 2 1-channel passive transmitters is the ideal solution for video transmission over twisted pair, compatible with HDCVI, HDTVI and AHD technologies for maximum flexibility in video surveillance systems. It guarantees high performance thanks to transmission up to 400 meters in HDCVI and up to 250 meters in HDTVI , ensuring signal quality even over long distances. The device is designed for maximum reliability with interference rejection >60dB and protection against overvoltage , improving system stability. It does not require power, making it practical and quick to install. It supports CAT5/5E/6 cables for simple integration into existing infrastructures. Furthermore, it offers operational resistance with a wide temperature range of -10°C to +55°C , ideal for various environments. Hyundai
HYU-155 | PACK OF 2 1-CHANNEL PASSIVE TRANSMITTERS FOR HDCVI, HDTVI, AND AHD VIDEO FOR TWISTED PAIR
The Hyundai HYU-155 pack, consisting of 2 1-channel passive transmitters, represents a reliable solution for video transmission over twisted pair, compatible with HDCVI, HDTVI and AHD technologies for perfect integration into video surveillance systems. It guarantees high performance thanks to transmission up to 400 meters in HDCVI and up to 250 meters in HDTVI , maintaining signal stability even over long distances. The device offers security and reliability with interference rejection >60dB and protection against surges , improving signal quality. It does not require power, making it practical and quick to install. It supports CAT5/5E/6 cables for flexible installation. Furthermore, it is designed to operate in difficult conditions thanks to the temperature range of -10°C to +55°C .
Main specifications:
- Compatibility with HDCVI, HDTVI and AHD technologies
- Transmission up to 400 meters on HDCVI and 250 meters on HDTVI
- No power required for easy installation
- Interference rejection >60dB and surge protection
- CAT5/5E/6 cable support for maximum flexibility
- Operating range from -10°C to +55°C for different environments
Further details
Video transmission up to 400 meters on HDCVI and up to 250 meters on HDTVI , designed to ensure signal stability and high quality even over long distances , ideal for large video surveillance systems.
Supports CAT5, CAT5E and CAT6 cables for twisted pair transmission, offering flexible installation and use of existing infrastructure , reducing wiring time and costs.
Technical data sheet
| HYU-155 |
| Specifications |
| 1-Channel Passive HDCVI, HDTVI and AHD Transmitter |
| HDCVI range: 400 meters (720P), 250 meters (1080P) |
| HDTVI range: 250 meters (720P, 1080P) |
| AHD range: 350 meters (720P), 200 meters (1080P) |
| It does not require power supply |
| Interference rejection (>60dB) |
| Built-in voltage stabilizer and transient protection |
| CAT5/5E/6 coaxial cable |
| Operating temperature -10°C ~ +55°C |
| Dimensions: 36.5 x 17.5 x 17.3 mm |
