Hyundai HDCVI HDTVI AHD Passive Video Transmitters over Twisted Pair, 300m, No Power, Anti-Interference

Hyundai HDCVI HDTVI AHD Passive Video Transmitters over Twisted Pair, 300m, No Power, Anti-Interference

New

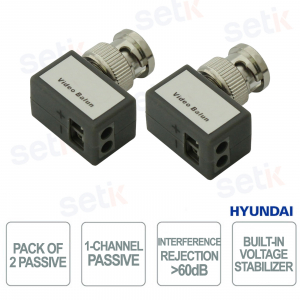

HYU-157N - The Hyundai HYU-157N pack consisting of 2 1-channel passive transmitters is designed for video transmission over twisted pair, offering wide compatibility thanks to support for HDCVI, HDTVI and AHD technologies, ideal for modern video surveillance systems. It guarantees reliable performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , maintaining signal stability over long distances. The device ensures ease of installation thanks to operation without power , reducing time and costs. It integrates interference rejection greater than 60dB and transient protection with a voltage stabilizer , improving signal quality. Supports CAT5/5E/6 cables for flexible integration. Furthermore, it is suitable for different environments thanks to the operating range of -10°C to +60°C . Hyundai

Technical Data Sheet

Reference: HYU-157N

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HYU-157N | PACK OF 2 1-CHANNEL PASSIVE TRANSMITTERS FOR HDCVI, HDTVI, AND AHD VIDEO FOR TWISTED PAIR


Hyundai Security

The Hyundai HYU-157N pack consisting of 2 1-channel passive transmitters is an efficient solution for video transmission over twisted pair, designed to ensure full compatibility with HDCVI, HDTVI and AHD technologies in video surveillance systems. It offers reliable performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , maintaining signal stability even over long distances. The device is extremely practical thanks to its power-free operation , simplifying installation. It integrates interference rejection >60dB and transient protection with a voltage stabilizer , improving signal quality. It supports CAT5/5E/6 cables for flexible installation and adapts to different environments thanks to the operating range of -10°C to +60°C .

Main specifications:

- Compatibility with HDCVI, HDTVI and AHD technologies

- Transmission up to 300 meters on HDCVI and 200 meters on HDTVI

- Power-free operation for quick installation

- Interference rejection >60dB with integrated transient protection

- CAT5/5E/6 cable support for flexible cabling

- Operating range from -10°C to +55°C for different environments

Further details

Video broadcast:
Video transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD designed to guarantee signal stability and constant quality even over long distances , ideal for extensive video surveillance systems.
Compatibility:
Compatibility with HDCVI, HDTVI and AHD technologies allows flexible integration with different video systems , facilitating upgrades and expansions without replacing existing infrastructure
Interference rejection :
Interference rejection greater than 60dB ensures clean and stable signal transmission , reducing noise and improving overall system reliability.
Cable support :
Supports CAT5, CAT5E and CAT6 cables on twisted pair which allows for simple and versatile installation , using existing wiring and reducing installation time and costs.

Technical data sheet

HYU-157N
Specifications
1-Channel Passive HDCVI, HDTVI and AHD Transmitter
HDCVI Range: 300 meters (720P), 200 meters (1080P)
HDTVI range: 300 meters (720P), 200 meters (1080P)
AHD range: 200 meters (960P, 720P)
It does not require power supply
Interference rejection (>60dB)
Built-in voltage stabilizer and transient protection
CAT5/5E/6 coaxial cable
Operating temperature -10°C ~ +60°C
Dimensions: 81 x 95 x 18 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
