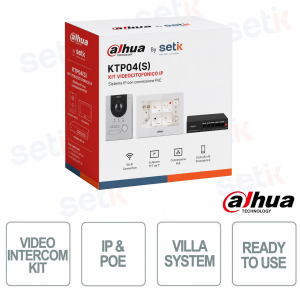

KTP04(S) - is a complete IP video intercom kit designed for homes and villas, consisting of an external unit with a 2 MP Full HD camera , a 7" capacitive touch internal monitor and a dedicated PoE switch. Thanks to remote management via app , two-way audio communication , PoE support, H.265/H.264 compression and ONVIF compatibility, it guarantees security, access control and simplified installation. The external unit with IP65 and IK07 protection, 168.6° wide-angle lens and support for up to 2 locks ensures reliability and high performance in any residential context. Dahua

Technical Data Sheet

Reference: KTP04(S)

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


KTP04(S) | DAHUA VIDEO INTERCOM KIT - IP


Dahua

The Dahua KTP04(S) is a complete IP video intercom kit for villas and homes, consisting of an external unit with 2 MP HD camera , 7" capacitive touch internal monitor and dedicated PoE switch. Thanks to remote management via app , two-way audio communication, H.265/H.264 support and ONVIF compatibility, it offers simple and secure access control. The external unit with 168.6° wide angle , IP65 and IK07 protection, support for up to 2 locks and PoE power supply ensures reliability and high performance in any residential installation.

Main specifications:

  • Camera: 2MP CMOS HD 168.6° wide angle
  • Monitor: 7" TFT capacitive touch display
  • Compression: H.265 / H.264
  • Audio: Two-way communication
  • Control: Remote management via app
  • Power supply: Standard PoE
  • Protection: IP65 and IK07 rating
  • Access Control: Supports up to 2 locks
  • Compatibility: ONVIF protocol
  • Memory: MicroSD support up to 256 GB (external unit) and 64 GB (monitor)

Further details

✅ VTO2211G-WP-S2:
  • 2 MP HD camera with wide angle lens.
  • IR night vision and WDR 120dB.
  • Two-way audio with echo cancellation.
  • Ethernet and Wi-Fi connection.
  • Integrated IC badge reader.
  • Door opening from badge, monitor or DMSS app.
  • Control up to 2 locks.
  • PoE or 12 VDC power supply.
  • IP65 outdoor protection.
  • ONVIF and SIP compatible.
  • MicroSD support up to 256 GB.
  • Dahua Indoor IP PoE Monitor Station
  • Intercom with other compatible internal stations
  • 7" capacitive color display (1024x600)
  • Alarm: 6 inputs + 1 output
  • Two-way audio: Speaker
  • Call recording and history
  • Alarm integration
  • Image acquisition and recording (SD card required)
  • Installation: Wall
  • White color
  • Dimensions: 189.0mm × 130.0mm × 26.9mm
  • 24 month warranty

✅ PFS3006-4ET-36 :
  • 6-port Fast Ethernet switch (4 PoE + 2 uplink).
  • 4 x IEEE 802.3af/at PoE ports (up to 30W/port).
  • Total PoE budget 36W.
  • PoE up to 250m (Extend mode).
  • PoE Watchdog function.
  • Power supply 100–240 VAC.
  • Operating temperature -10 °C ÷ +55 °C.

Technical data sheet

Model KTP04(S)
System (VTO)
Main Processor Embedded Processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4
Basic (VTO)
Room 1/2.8" 2 MP CMOS
Field of View H: 168.6°; V: 87.1°; D: 176.7°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.264; H.265
Video Resolution Main stream: 720p, WVGA, D1, CIF
Sub stream: 1080p, WVGA, D1, QVGA, CIF
Video Frame Rate 25 fps;
Video Bit Rate 256 Kbps–8 Mbps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W;Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1 Channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 bit
Function(VTO)
Communication Mode Full digital
Unlock Mode Remote
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Storage Supports Micro SD card (up to 256 GB)
Web Configuration Yes
Performance (VTO)
Casing Material Aluminum
Port(VTO)
RS-485 1
Alarm Output 1
Power Output 1 port, 12 V and 600 mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port 1 × 10M/100M network port
Alarm (VTO)
Tamper Alarm Yes
General (VTO)
Appearance Color Silver
Power Supply 12 VDC, 2 A, PoE (802.3af/at)
Power Adapter Optional
Installation Surface Mount (The surface mount kit comes with the surface mount bracket)
Certifications THERE IS
Accessory Surface mount box (included)
Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection IK07; IP65
Operating Temperature –30 °C to +60 °C (–22 °F to +140°F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Operating Environment Outdoor
Power Consumption ≤ 4 W (standby), ≤ 7 W (working)
Gross Weight 0.48 kg (1.06 lb)
Storage Humidity 30%–75% (RH), non-condensing
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
System(VTH)
Main Processor Embedded Processor
Operating System Embedded Linux Operation System
Button Type Touch button
Interoperability ONVIF
Network Protocol SIP; IPv4; RTSP; RTP; TCP; UDP
Basic(VTH)
Screen Type Capacitive Touchscreen
Display Screen 7" TFT
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression
Audio Bit Rate 16 KHz; 16 bit
Function(VTH)
Communication Mode Full digital
Information Release Supports viewing text announcement from the center (insert an SD card to receive and view pictures)
Leave Videos Yes (SD card inserted in VTH is needed)
DND Mode Do not disturb period can be set;Do not disturb mode can be set
Number of Extensions Villa: 9; apartment: 4
Storage Micro SD Card, Max 64 GB (reserved for software)
Port(VTH)
RS-485 1
Alarm Input 6 channels (switch quantity)
Alarm Output 1 channel
Power Output 1 port (12V, 100mA)
Door Bell Yes (use any alarm input port)
Network Port 1, 10/100 Mbps Ethernet port
Performance (VTH)
Casing Material PC + ABS
General (VTH)
Appearance Color White
Power Supply 12 VDC, 1 A
PoE Standard
Power Adapter Optional
Installation Surface Mount
Certifications CE; FCC; UL
Accessory Bracket (included)
Alarm ribbon cable (standard)
Product Dimensions 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Operating Environment Indoor
Power Consumption ≤ 2W (standby); ≤ 6W (working)
Gross Weightl 0.74 kg (1.63 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH), non-condensing
System (Networking Device)
Main Processor Embedded Processor
Port (Networking Device)
Network Port 4 × PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100 Mbps Base-TX
General (Networking Device)
Appearance Color Black
Power Supply Built-in power supply: 100–240 VAC
Certifications CE; FCC
Product Dimensions 194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38")
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Power Consumption Idling: 0.5W; Full load: 36W
Gross Weight 1.11 kg (2.15 lb)
