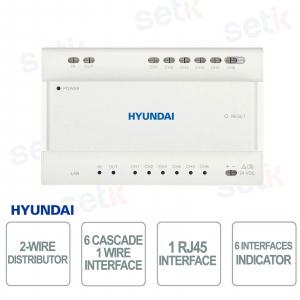

HYU-833 – 2-Wire Video/Audio Distributor with 6 Cascaded Interfaces

HYU-833 – 2-Wire Video/Audio Distributor with 6 Cascaded Interfaces

New

The HYU-883 is a 2-wire video/audio distributor with 6 cascading interfaces, designed for Hyundai systems, ideal for connecting multiple elements in an internal communication system. It features an RJ45 network interface with a dedicated channel and terminal for WAN access, 6 signal status indicators, and a power indicator for immediate monitoring. The 6-channel structure allows for efficient data exchange, while the reset button simplifies maintenance. Designed for DIN rail mounting, it operates within a temperature range of -10°C to +55°C and in humidity up to 90%, with a 24V DC power supply and consumption of less than 7W, ensuring stable and long-lasting performance. Hyundai

Technical Data Sheet

Reference: HYU-883

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-883 | 6-Interface Cascaded Video/Audio Distributor


Dahua

The HYU-833 is a 2-wire video/audio distributor with 6 cascading interfaces, ideal for Hyundai communication systems, designed to connect and manage multiple devices within a single system. Equipped with an RJ45 network interface with a dedicated channel and terminal for WAN access, it ensures stable and fast data exchange. The 6 status indicators and the power indicator allow for instant signal monitoring, while its DIN rail mounting and low power consumption make it practical and reliable.

Main specifications:

- 6 cascaded interfaces for 2-wire systems

- RJ45 interface with dedicated WAN channel

- 6 status indicators and 1 power indicator

- Reset button for quick maintenance

- Operating temperature: -10°C ~ +55°C

- Power supply 24V DC, consumption <7w p="">

Further details

RJ45 Interface :
It integrates a dedicated channel and terminal for WAN access, ensuring fast and stable data exchange, essential for connection with other modules or network systems.
6-wire interface:
It has 6 channels for transmission and data exchange in a 2-wire system, allowing the simultaneous connection of multiple elements and improving signal management.
Operating temperature :
Designed to operate in a range from -10°C to +55°C, it guarantees reliability and operational continuity even in environments with variable thermal conditions.

Technical data sheet

HYU-883
Specifications
Video/audio distributor for 2-wire systems
Allows you to connect multiple elements within a 2-wire system
RJ45 network interface (1 channel and 1 terminal reserved for WAN access)
6-channel 6-wire interface for data exchange
reset button
6 indicators for displaying the status of the 6-channel signal
1 power indicator
Operating temperature -10°C ~ +55°C (non-condensing)
operating humidity 10% ~ 90%
Power: 24 V DC
Power consumption: <7 w="" td="">
DIN rail mounting
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
